Home Bosch Rexroth Indramat DKS AC Servo Drive Series DKS01.1-W050A-DS01-02-FW

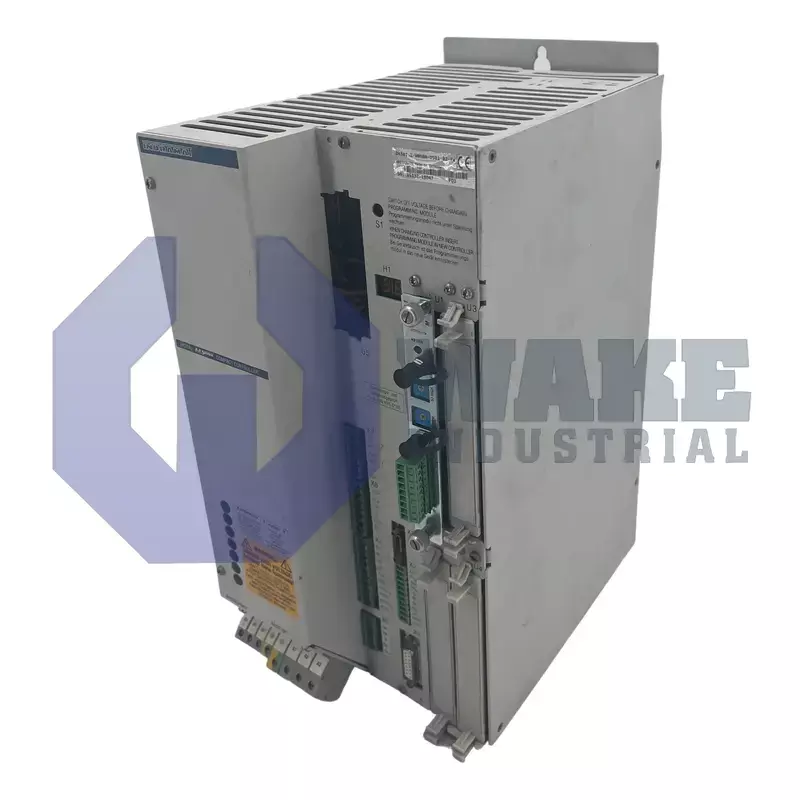

DKS01.1-W050A-DS01-02-FW

  • Rated 4.5 (17 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911271235
    In-Stock, Ships Fast
  • Call for Expedited Shipping and Product Condition Options
The DKS01.1-W050A-DS01-02-FW DKS AC Servo Drive is manufactured by Rexroth, Indramat, Bosch. The compact controller has a current rating of 50 A and a power requirement of 9.5 kVA. This controller also has a supply voltage of 230 V and standard noise emission.
Request a Quote Request Repair
✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

DKS01.1-W050A-DS01-02-FW

  • Rated 4.5 (17 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911271235
    In-Stock, Ships Fast
  • Call for Expedited Shipping and Product Condition Options
The DKS01.1-W050A-DS01-02-FW DKS AC Servo Drive is manufactured by Rexroth, Indramat, Bosch. The compact controller has a current rating of 50 A and a power requirement of 9.5 kVA. This controller also has a supply voltage of 230 V and standard noise emission.
Request a Quote Request Repair
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
Surplus
Cash Icon Have a DKS01.1-W050A-DS01-02-FW to sell?
To Speak to a sales representative for pricing and lead time:
Phone
1-888-551-3082
International
1-919-443-0207
Email
sales@wakeindustrial.com

Product Description

The DKS01.1-W050A-DS01-02-FW servo drive is an advanced industrial product manufactured by Bosch Rexroth. The servo drive is designed to control and monitor the movement of the servo motor based on the command signal it receives from the control center. To control the servo motor, the DKS01.1-W050A-DS01-02-FW servo drive, after receiving a command signal from the control system, compares the actual motor status with the received command signal using the motor feedback cable. After this comparison, it alters the voltage, frequency, or pulse width of the motor to correct any deviation from the commanded status.

The DKS01.1-W050A-DS01-02-FW digital servo drive can be customized for specific industrial applications by installing various customization cards into slots U1 to U5. These customization cards include a command interface card, a software module card, and auxiliary plugged-in cards. The presence of these customization cards, a basic servo drive unit and a configuration label in a servo drive forms a fully configured servo drive. The servo drive also contains a bleeder resistor, which prevents unwanted power discharge from the drive.

The DKS01.1-W050A-DS01-02-FW digital servo drive uses a three-phase connector to connect to the mains electricity. The servo drive draws an input voltage of 3×230 volts from the mains electricity. It has a rated current of 50 Amperes and also works with a continuous current of 25 Amperes. The servo drive has a PMW frequency of 4 Kilohertz and used a power frequency of 50 to 60 Hertz. At maximum motor loading, the DKS01.1-W050A-DS01-02-FW servo drive has a power requirement of 9.5 kilovolts-Ampere and loses an estimated power of 305 watts. It is produced according to the C per DIN 570 110 insulation class and the IP 10 per DIN 40 050 protection class. To prevent industrial accidents, operators should ensure the servo drive is installed and operated according to the instructions in the drive’s documentation. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

  • DKS011W050ADS0102FW
  • DKS01.1 W050A DS01 02 FW
  • DKSO1.1-WO5OA-DSO1-O2-FW
  • DKS1.1-W050A-DS01-02-FW

DKS01.1-W050A-DS01-02-FW Technical Specifications

Motor type to be used : MDD
Rated current: 50A
Continuous current: 25A
PWM frequency: 4kHz
Connection: 3-phase connection

Frequently Asked Questions about DKS01.1-W050A-DS01-02-FW


Q: Can the DKS01.1-W050A-DS01-02 controller be used under humid conditions?

A: The DKS01.1-W050A-DS01-02 controller can maintain optimum operation when used in humid regions. However, the mean relative humidity around the controller on the must humid month of the year must not exceed 70 percent. Also, water condensation on the controller must not be allowed.

Q: What types of cable used be used for the connection between the DKS01.1-W050A-DS01-02 controller and the MMD motor?

A: It is preferable to use INDRAMAT cables for the feedback and the power connection between the controller and the MDD servo motor. Optionally, the power cable can be made of four single-stranded wires with separately routed shielded leads for temperature resistance and brake connection.

Q: How does the dynamic braking of the DKS01.1-W050A-DS01-02 controller work?

A: Dynamic braking always stops the MDD motor connected to the DKS01.1-W050A-DS01-02 controller whether the electronic circuitry on the drive is still functioning properly or not. Dynamic braking is only triggered in the event of sudden drive faults. The drive is also brough to a stop in accordance with the programmed error reaction.

Q: How is the DKS01.1-W050A-DS01-02 controller configured?

A: The configuration of the DKS01.1-W050A-DS01-02 controller is done before the controller is delivered to the customer. Configuration is done by inserting special configuration modules into the controller. This provides flexibility for specific applications and operation modes.

Q: How is the DKS01.1-W050A-DS01-02 controller delivered to the customer?

A: The DKS01.1-W050A-DS01-02 controller is delivered in paper carton. Each controller package is also marked with a bar-coded label that customers can use for easy identification after the controller has been delivered.

Internal Product Review

  • ‘‘I am very happy I got this servo drive, I use it to control my MDD motor, and its performance has been simply unbelieveable. If you are looking for a simple drive that maintains accuracy even during high motor speed, the DKS01.1-W050A-DS01-02 controller is the best choice for you. ’’
