DKC03.3-018-3-MGP-01VRS
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

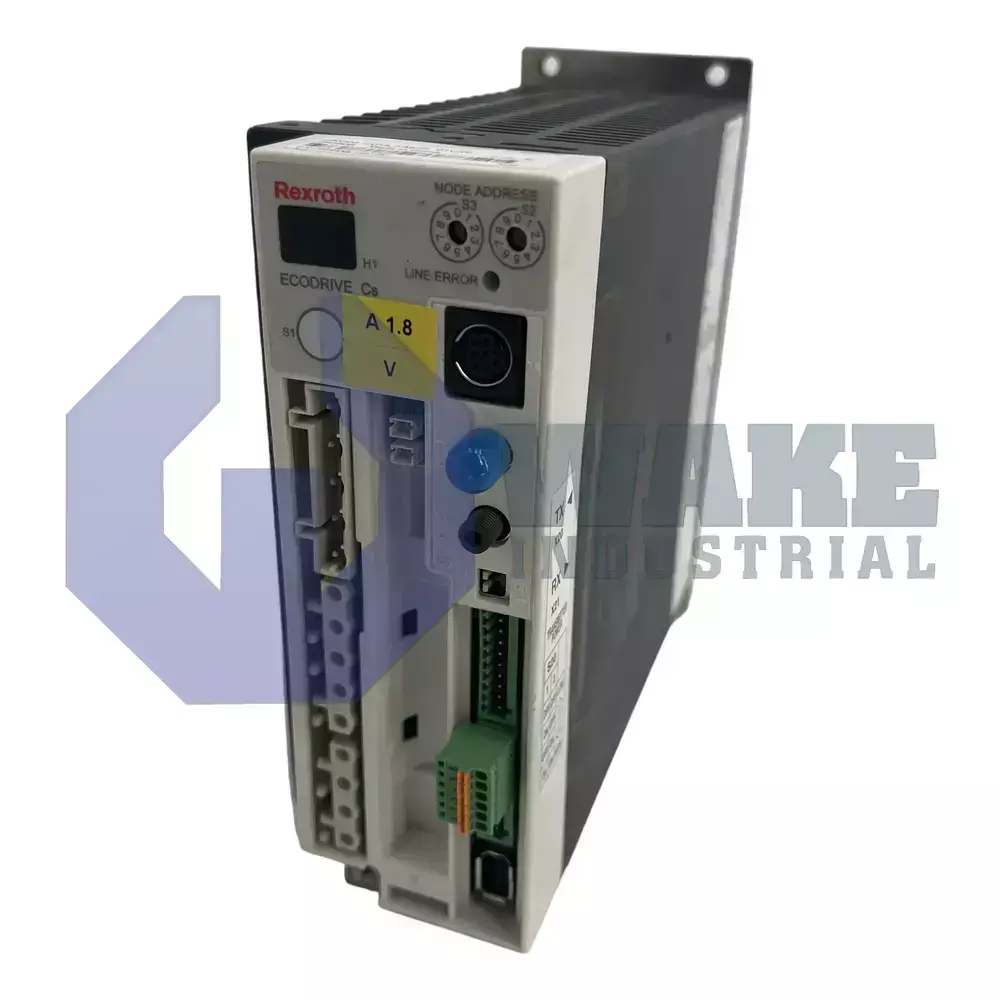

The Bosch Rexroth DKC03.3-018-3-MGP-01VRS Drive Controller operates with a high coupling capacitance of 200 nF, ensuring stable operation. The module DKC03.3-018-3-MGP-01VRS supports (RS232/485, Analog) communication interfaces and a DKC03.3-LK-PBK02 optional card that offers Profibus-DP interface.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The Bosch Rexroth DKC03.3-018-3-MGP-01VRS controller is a reliable unit of the DKC Drive Controllers series. This drive controller runs at 18 A, which shows its capability to run with low power input while providing high output and automation control. This controller is designed to work at the ambient temperature range and any change in the environmental temperature could affect the operation of the system. The module DKC03.3-018-3-MGP-01VRS supports (RS232/485, Analog) communication interfaces and a DKC03.3-LK-PBK02 optional card that offers Profibus-DP interface. The RS232/485 and Analog interfaces support serial data communication and supply direct voltage or current signals for basic control tasks. The Profibus-DP interface is a digital communication protocol for efficient fieldbus data exchange.
The permissible ambient temperature for maximum output is +5 to +45 degrees C. The controller can also run at temperatures higher than this range but per degree centigrade increase in temperature could reduce the output by 2 %. Its storage temperature is different from its operational temperature, which is about -30 to +85 degrees C. It is recommended to install the controller at an altitude of 2000 m above sea level for high output with a maximum relative humidity of 95 %. The controller is constructed according to the IP20 protection rating, which provides limited protection. This drive controller cannot work in areas where there is the possibility of a high amount of dust and condensation.
Its enclosure cannot withstand fine dust and condensation. The controller follows the DIN 0470-1-1992 (ICE 529-1989) protection standard. This drive can work in industrial areas, which are characterized by an amplitude of 0.3 mm (peak-to-peak) and acceleration of 2 g at the 57 - 500 Hz range. The controller can even run a complex system or network with high power fluctuation because it has a high tolerance of ~ 15 %, which improves its capability to regulate the power efficiently and withstand voltage or current fluctuation. Moreover, this DKC drive has a high insulation resistance greater than 25 M ohm.
Frequently Asked Questions about DKC03.3-018-3-MGP-01VRS:
Q: What is the current rating of the DKC03.3-018-3-MGP-01VRS drive controller?
A: The DKC03.3-018-3-MGP-01VRS drive controller has a current rating of 18 A.
Q: What is the permissible ambient temperature range for the DKC03.3-018-3-MGP-01VRS?
A: The permissible ambient temperature range of this DKC03.3-018-3-MGP-01VRS drive is 5 to 45 degrees C for maximum output ratings.
Q: What is the maximum allowed installation altitude for the DKC03.3-018-3-MGP-01VRS?
A: The maximum allowed installation altitude for this DKC03.3-018-3-MGP-01VRS drive controller is 1000 m.
Q: What type of protection does the DKC03.3-018-3-MGP-01VRS offer?
A: The DKC03.3-018-3-MGP-01VRS offers IP20 protection according to EN 60529.
Q: What is the maximum permissible relative humidity for the DKC03.3-018-3-MGP-01VRS?
A: The maximum permissible relative humidity for this DKC03.3-018-3-MGP-01VRS drive is 95%, with no condensation allowed.
