DDS03.1-W030-DL20-01-FW

  • Rated 4.4 (23 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911266534
    In-Stock, Ships 3-5 Days

Current response time:

3 Minutes 32 Seconds

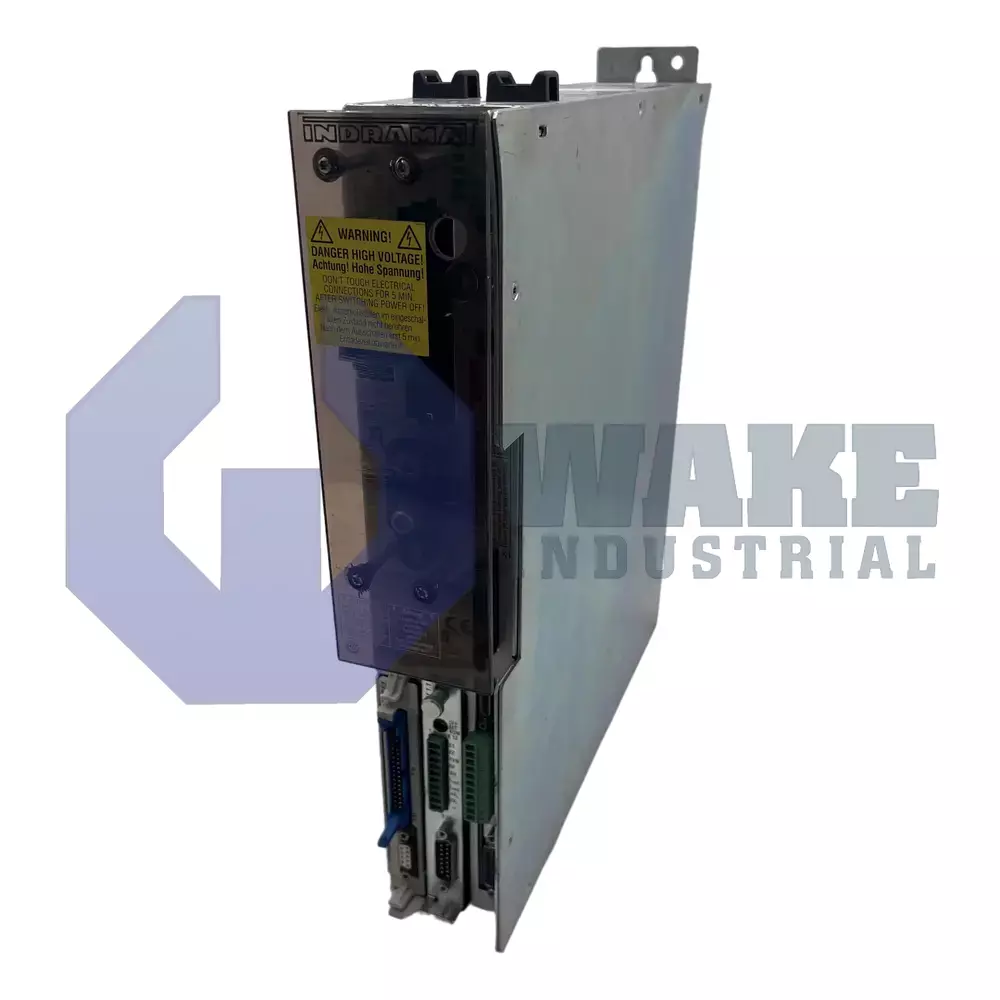

The DDS03.1-W030-DL20-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 30 A rated current, and Digital Servo Feedback.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch Rexroth DDS03.1-W030-DL20-01-FW drive controller has 3 series code. This DIAX02 controller comprises a modular design. The motor is suitable for use in printing and packaging machinery when it functions as a rapid response drive. The product should never be used with an unregulated power supply. This device must adhere to the safety instructions specified in its user guidelines. The unit is not meant to be used with cables, accessories or spare parts from other manufacturers. It should not be operated even for a brief period without a permanent connection of its ground wire. The product tends to have high electric voltage if the connections are done incorrectly.

This device must be de-energized and secured against turning ON when it is kept unused for a long time. The unit operation near radio, high-frequency as well as remote control equipment should be avoided as much as possible. It has to be ensured that the controller is neither pinched nor crushed during the handling process. The drive controller cooling takes place by airflow inside the control cabinet. The product must have adequate clearance above and below it in the control cabinet in which it is installed. This drive controller is available with a year’s Wake Industrial warranty.

The controller stores its drive as well as firmware parameters in the associated software module. The device incorporates a configuration rating plate that has the required details to get the replacement parts when there is a failure. The term COVER on its configuration rating plate indicates that the corresponding slot is empty. The product comprises an Interbus S slave interface in its second slot. The device has a 30A maximum peak current rating. The unit has a 500mA current consumption at 24VDC. Its storage, as well as transportation, has to be done between -30°C and 85°C. This drive controller is shipped in custom military-grade packaging to avoid damage during transit.

  • DDS031W030DL2001FW
  • DDS03 1 W030 DL20 01 FW
  • dds03.1-w030-dl20-01-fw
  • DDS3.1-W030-DL20-01-FW

DDS03.1-W030-DL20-01-FW Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 30 A
