Product Description

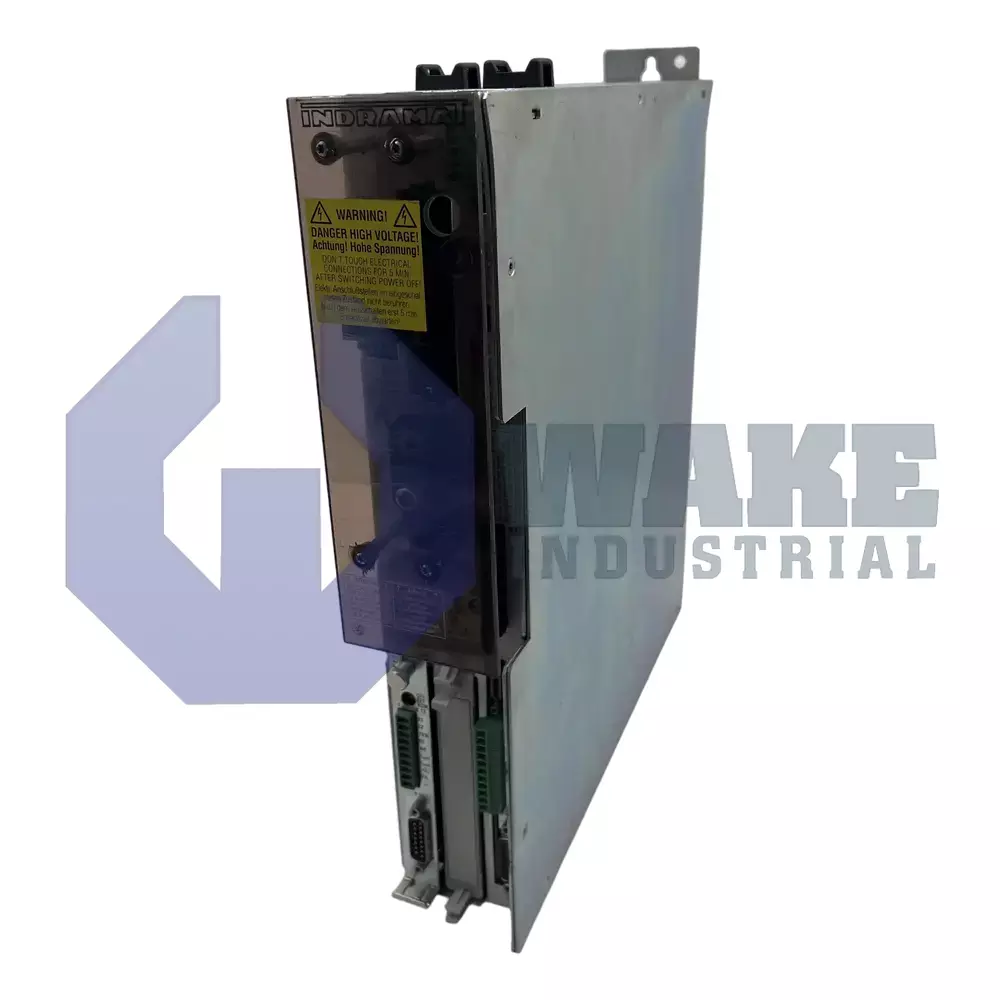

The DDS03.1-W030-DC01-01-FW is a DDS controller basic unit. Bosch develops DDS controllers for industrial applications. Typical DDS controller applications include machine tools, robotics, handling machines and printing machinery. A configured drive controller includes the basic unit, plugin modules, software module and firmware. Customers need to order DDS controller firmware as a separate item. The location of the firmware on the controller is the software module. The location for the programmed drive parameters is also the software module. The location of the software module on the controller is slot U5 on the basic unit. A command communication module is part of every DDS controller. Its location is slot U1 on the basic unit. The command communication module on the DDS03.1-W030-DC01-01-FW supports Interbus-S. Interbus is a serial bus system that transmits data between control systems and spatially distributed I/O modules connected to sensors and actuators.

Rated current output of the DDS03.1-W030-DC01-01-FW is 30 Amps. The controller generates heat during operation. The inlet for cool air on the controller is on the bottom side of the unit. The outlet for warm air on the controller is on the top side of the unit. Large cabinets are needed as heat generation takes place inside the cabinet. The ambient temperature for rated output is 0 to 45 degrees Celsius. The recommended minimum spacing on the top side of the controller is 80 millimeters. The recommended minimum spacing on the bottom side of the controller is 80 millimeters. The recommended minimum spacing on the front side of the controller is 40 millimeters. The DDS series controller supports digital servo feedback. The drive controller dimensions are 355 x 70 x 325 millimeters.
