DDS03.1-W030-DA11-01-FW

  • Rated 4.7 (22 total ratings)
  • MPN: R911271064
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

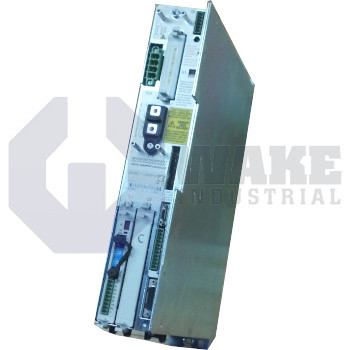

The DDS03.1-W030-DA11-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 30A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS03.1-W030-DA11-01-FW

  • Rated 4.7 (22 total ratings)
  • MPN: R911271064
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
The DDS03.1-W030-DA11-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 30A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a DDS03.1-W030-DA11-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The DDS03.1-W030-DA11-01-FW is a drive controller from Bosch Rexroth. This drive controller belongs to the DIAX02 family of such products in the DDS series. The device features a modular concept that supports a flexible combination of AC main and servo drives as a single compact package with just one supply unit. The product can be connected to any supply unit from the manufacturer that has a regulated 24VDC. It has a series code of 3 and a version code of 1. The components of the unit have a signal voltage ranging between 5V and 30V. The device may experience dangerous movements due to a faulty cable or faulty wiring. The configured controller comes with a one-year warranty.

The power connection of the drive controller can be isolated using a starting lockout for protection against an unplanned starting up. The product incorporates both firmware and hardware. The firmware helps in determining the functions of the unit. The device is cooled by external air circulation inside the control cabinet in which it is installed. It has a protection rating of IP 10 according to DIN 40 050 specifications. The unit is not protected from water penetration. When multiple controllers are used, the drives with excessive current levels must be placed close to the supply unit.

The drive controller weighs 5.5kg. The device functions in an ambient temperature range of 0°C and 45°C. It must be used only along with commercial machinery. The product should be operated only if the application for which it is used complies with the national EMC directives. The unit must be checked for the permanent connection of the earth-wire after installation. The earth-wire must always be connected before starting to avoid the application of high voltages to the housing. The DDS03.1-W030-DA11-01-FW unit can be dispatched to your desired location.

DDS03.1-W030-DA11-01-FW Documents

  • DDS031W030DA1101FW
  • DDS03 1 W030 DA11 01 FW
  • dds03.1-w030-da11-01-fw

DDS03.1-W030-DA11-01-FW Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 30A
