Product Description

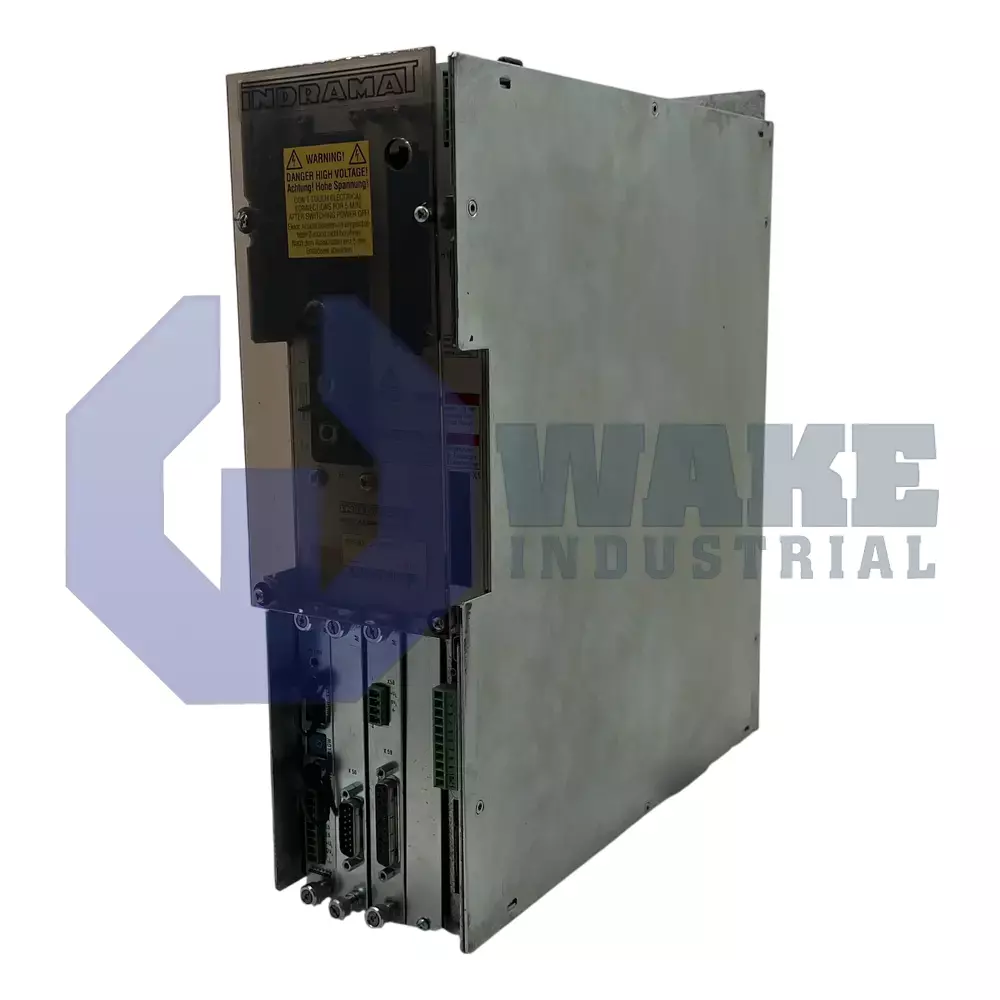

The Bosch Rexroth DDS02.2-W200-BE04-01-FW is a digital drive controller. It is used for motor control in industrial and commercial applications. The combination of the drive controller and a compatible motor forms an effective servo drive system. Typical applications of DDS controller include textiles, robotics, and printing and packaging machines. Some of the motors that are compatible with DDS controller include those from the MBW inductance motor, 1MB inductance motor, ADF inductance motor, MDD synchronous motor and MKD synchronous motor families. The DDS02.2-W200-BE04-01-FW is a modular controller with five slots for hardware modules. Two slots on the basic unit are reserved for a foftware module and a command interface module. The software module stores drive firmware and operating parameters. It installs in slot U5 of the basic unit. The command interface module installs in slot U1 of the basic unit.

Command interface module installed on the DDS02.2-W200-BE04-01-FW supports SERCOS. This is a standard for real-time serial communication over fiber optic cables. The controller firmware is ordered as a separate subposition. Rated output of the DDS02.2-W200-BE04-01-FW is 200 Amps. This rated output is available under specified ambient conditions. Controller operation under non-specified ambient conditions leads to output derating. The permitted ambient temperature range is 0 to 45 degrees Celsius. The permitted site elevation range is 0 to 1000 meters. The DDS02.2-W200-BE04-01-FW is designed for heat technology: the heat is dissipated inside the cabinet. The controller is designed for vertical mounting. Protection class of the controller housing is IP20. The DDS02.2-W200-BE04-01-FW supports digital servo feedback and resolver feedback. It is designed for professional installation and operation. Weight of the drive controller is approximately 7.5 kilograms.
