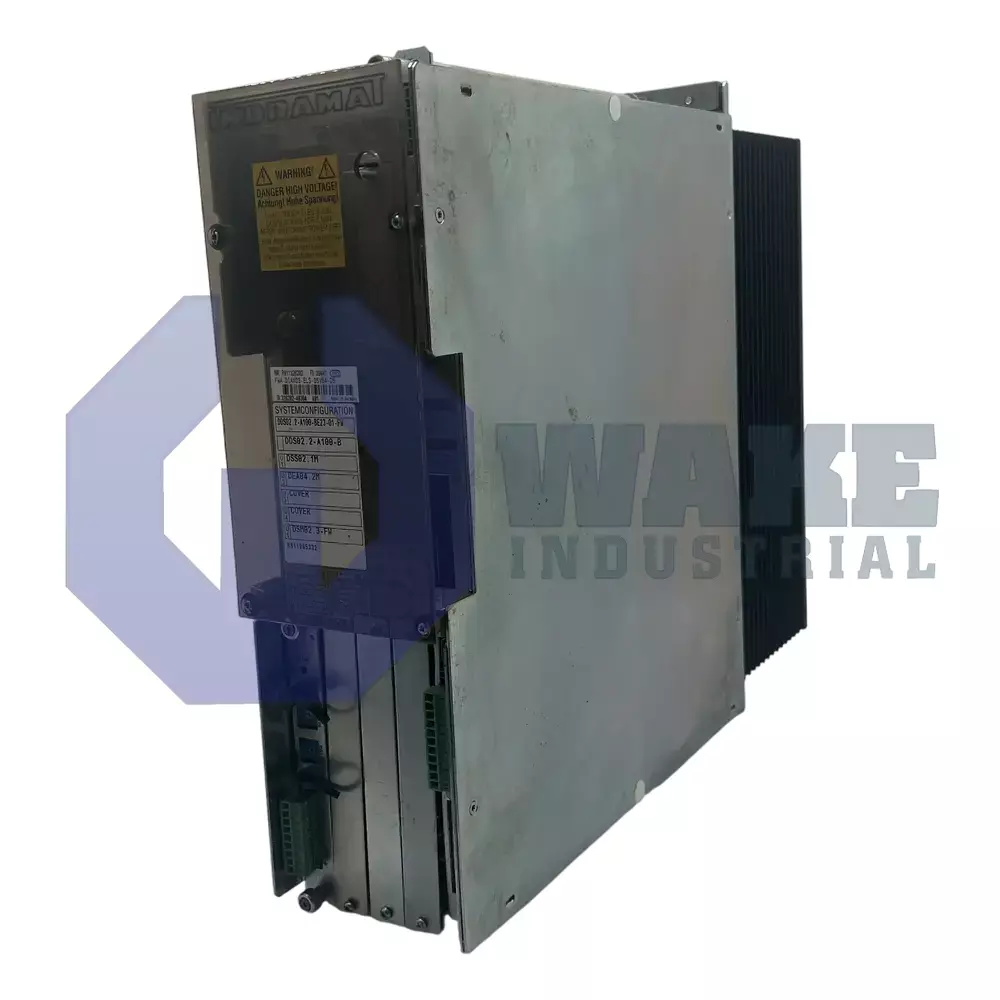

The DDS02.2-A100-BE12-01-FW belongs to the DDS series of the drive controllers which are both digital and modular. Indramat, now known as Bosch Rexroth excels in developing the best motion control technology which can be used in printing, textile, packaging and machine tool making machinery. This means that they can be stacked with multiple drives at a time which is running off from one or more than one power supplies. To control these units analog input, SERCOS or the DLC single axis control card can be used. The SERCOS interface makes use of fiber optic cables for faster functioning.
The DDS02.1 and DDS02.2 are similar in their appearances but different in their internal composition. The series has a wide palette of currents to offer, starting from 15A to 200 A. The drive controller comprises of multiple components including plugin modules, software modules, basic drive controller unit and the firmware. While the DDS02.1 version uses the Diax02 version of firmware, the DDS02.2 uses Diax03 version. The firmware for DDS02.2-A100-BE12-01-FW must be sourced separately based on the requirements. The function ID and the function ID version are documented and determined by Indramat itself. The drive controller has a rated current of 100A and it comprises of configuration rating plates of multiple type designation including basic unit, plugin module slots, drive controller and the software modules which help in determining that which slots are allotted for particular components. It is important to ensure that all the configuration plates are placed in the right positions. A voltage of DC +24V - and DC +/- 15V – is allotted by the supply unit for all the drive controllers connected to it.
Since the device can be used in multiple operations, hence it is recommended that it should be used only with the designated list of accessories and spare parts as mentioned by the company. The DDS02.2-A100-BE12-01-FW can be shipped worldwide with a one-year warranty period from Wake Industrial.
