Product Description

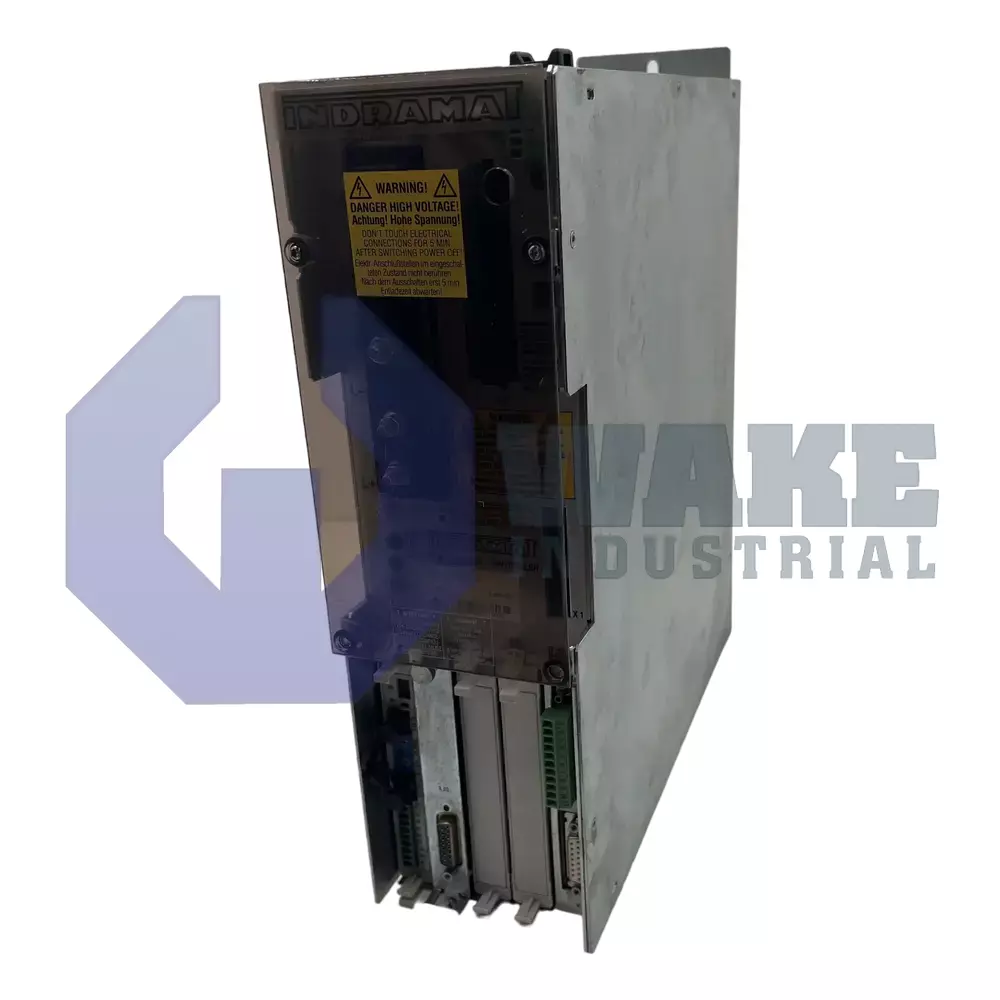

The Bosch DDS02.1-W150-DS04-00 is a digital drive controller. It operates at 24 Volts DC input. The controller can be operated with a power supply that provides regulated DC output. Dimensions of the controller are 355 x 105 x 325 millimeters. The DDS02.1-W150-DS04-00 cools through natural convection and dissipates heat inside the cabinet. The cold air enters at the bottom of the controller. The heated air exits at the top side of the controller. The minimum spacing recommendations from Bosch are: 80 millimeters on the top and bottom sides, 22.5 millimeters on the rear side and 40 millimeters on the left and right sides of the mounted controller. Implementation of these spacing recommendations will help to facilitate the flow of air that is required for cooling. Air conditioning or larger cabinets can be used to ensure ambient temperature stays within recommended limits.

The DDS02.1-W150-DS04-00 is designed for 0 to 45 degrees Celsius ambient temperature. The recommended altitude range for the installation site is 0 to 1000 meters. The rated output of the DDS02.1-W150-DS04-00 is 150 Amps. The basic unit of the DDS02.1-W150-DS04-00 has five slots. Two slots are reserved: one slot is reserved for the software module and one slot is reserved for a command communication module. The DDS02.1-W150-DS04-00 features a SERCOS command communication module. SERCOS is a standard for real-time communication over fiber optic cables. SERCOS supports 2 / 4 Mbps data rates. Other options for command communications that can be ordered if required include Interbus, analog and single axis positioning control. The DDS02.1-W150-DS04-00 supports digital servo feedback. The safety instructions listed in the product documentation should be implemented for prevention of injury and equipment damage.
