DDS02.1-W150-DL03-00

  • Rated 4.5 (21 total ratings)
  • MPN: R911257803
  • Call for Expedited Shipping and Product Condition Options

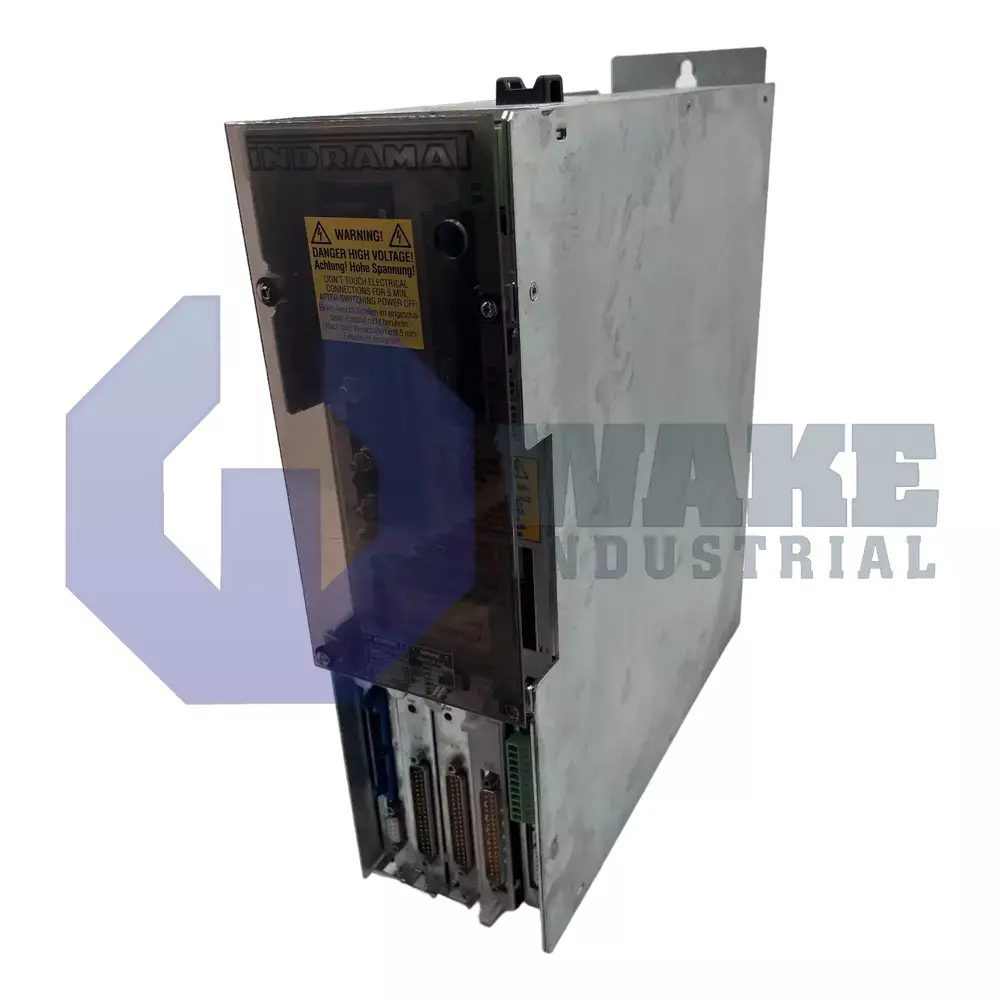

The DDS02.1-W150-DL03-00 Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 150 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-W150-DL03-00

  • Rated 4.5 (21 total ratings)
  • MPN: R911257803
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-W150-DL03-00 Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 150 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a DDS02.1-W150-DL03-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth offers top-notch products including drive controllers, servo motors, spindle motors, inverters, braking resistors, and frequency converters.

The DDS02.1-W150-DL03-00 model operates at 65 A continuous current and should be mounted in a control cabinet with an authorized protection rating and outdoor ventilation. The single-axis position control communication card is installed in the drive controller's U1 slot, while the firmware module is installed in the U5 slot. The DDS02.1 drive controller has the benefit of dispersing a considerable percentage of its heat outside of its enclosure, which can be useful in some scenarios. This device's modular architecture allows it to be connected with AC servo and main drives to make a compact drive package that requires just a single power supply unit to function. To increase versatility, the drive controller was developed in a modular approach. The maximum operating temperature of the DDS02.1 drive controller with a reduction in rated data is +55 degrees Celsius. Due to its IP20 protection classification, the module is not totally liquid-proof, although it does provide some protection against fluids. The model is about 7.5 kg in weight and has a DC bus voltage of 300 volts.

The model DDS02.1-W150-DL03-00 is compatible with corporate supply units that have a DC 24 V stable voltage. A large spectrum of machine tools, textile, printing, and packing machinery, as well as robotics and handling machines, can be leveraged from this sort of drive. The operational setting of this drive controller must also be clean, turbulence-free, and dirt-free. Shock-absorbing supports may be installed during transportation if required. Cables used in the drive controller (DDS02.1-W150-DL03-00) or its components can be up to 75 meters long and must be made by Rexroth Indramat.

DDS02.1-W150-DL03-00 Documents

  • DDS021W150DL0300
  • DDS02 1 W150 DL03 00
  • dds02.1-w150-dl03-00

DDS02.1-W150-DL03-00 Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 150 A
