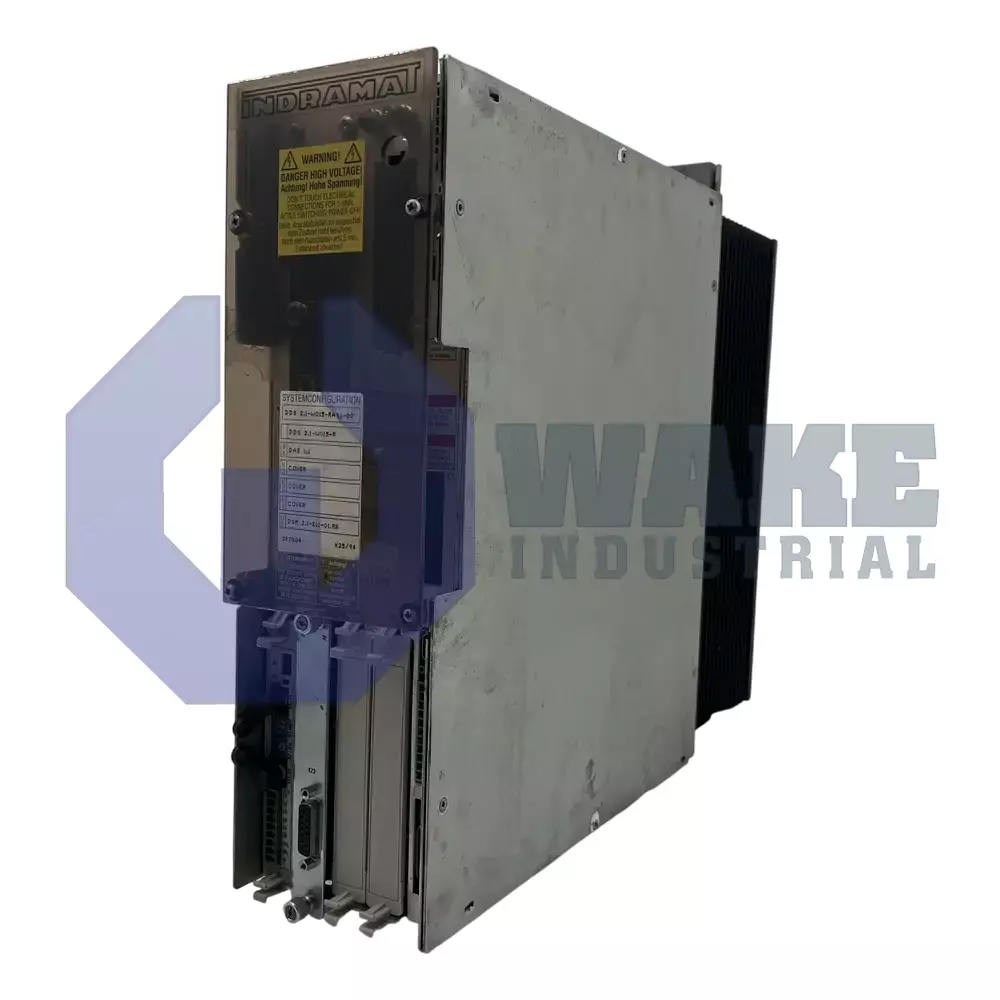

DDS02.1-W050-RS04-03-FW

  • Rated 4.4 (14 total ratings)
  • MPN: R911277298
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-W050-RS04-03-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 50 A rated current, and Resolver Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-W050-RS04-03-FW

  • Rated 4.4 (14 total ratings)
  • MPN: R911277298
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-W050-RS04-03-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 50 A rated current, and Resolver Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a DDS02.1-W050-RS04-03-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth is well-known for its reliability in the international market. The company manufactures drive converters, brake resistors, and a wide range of industrial automation equipment.

The DDS02.1-W050-RS04-03-FW model is manufactured according to the latest automation technology introduced by Rexroth Indramat. The model is a drive controller of the DIAX02 drive system that assists in developing a rapid-response motion control system. The DDS02.1 drive controller must be protected against dust and liquids due to its IP10 protection category and it must be installed in the closed metallic switchgear cabinet. During installation, make sure that the surrounding air of the controller is free from reactive elements and dust particles. The controller is designed as per UL standards and is CE-certified. The component is shipped in damage-free packaging and the net weight of the DDS controller is approximately 7.5 kg, excluding the weight of accessories and mounting kit. The device must be installed in the vertical position and the minimum allowable clearance should be maintained at the sides, top, and bottom of the controller for sufficient heat loss. U1 slot of the basic unit is equipped with a SERCOS interface (DSS01.3-FW) that uses optical fiber cable for signals transmission.

The model DDS02.1-W050-RS04-03-FW consumes 50 A of continuous current. Only a highly qualified person is allowed to handle and operate the DDS drive controller. During installation, make sure that the controller is installed according to the conditions mentioned in the DDS instruction manual. The ideal temperature range for this controller is 0 to +45 degree Celsius and the maximum bearable temperature for this module is +55 degree Celsius. U2 slot of the controller is equipped with a high-resolution position interface (DLF01.1) for transmitting sinusoidal signals and the firmware module is installed in the U5 slot of the DDS02.1-W050-RS04-03-FW controller.

DDS02.1-W050-RS04-03-FW Documents

  • DDS021W050RS0403FW
  • DDS02 1 W050 RS04 03 FW
  • dds02.1-w050-rs04-03-fw

DDS02.1-W050-RS04-03-FW Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Resolver Feedback
Rated Current: 50 A
