DDS02.1-W025-DL05-01-FW

  • Rated 4.6 (15 total ratings)
  • MPN: R911266565
  • Call for Expedited Shipping and Product Condition Options

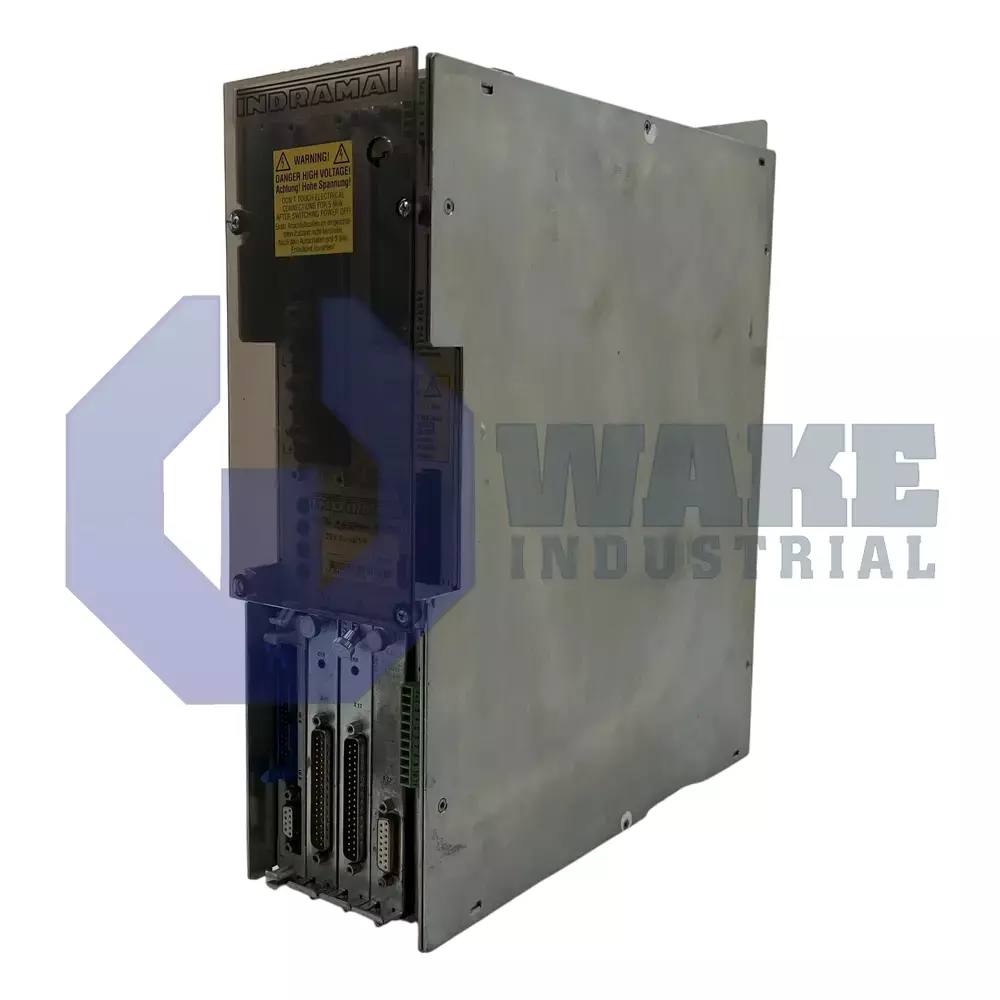

The DDS02.1-W025-DL05-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 25 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-W025-DL05-01-FW

  • Rated 4.6 (15 total ratings)
  • MPN: R911266565
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-W025-DL05-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 25 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a DDS02.1-W025-DL05-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch Rexroth DDS02.1-W025-DL05-01-FW is a digital drive controller. It has been designed with a modular architecture. The basic unit of the drive has a total of five slots for modules that the can installed. A slot is fixed for a command communication module: the module installed on the DDS02.1-W025-DL05-01-FW is a single-axis position control module.  Another slot is fixed for a software module. The firmware for the DDS02.1-W025-DL05-01-FW, which has to be ordered separately, is stored on this software module. The operating parameters that are programmed by the operator or user are also stored on the software module. The drive function ID is 05. The function ID version is 01. The rated current output of the drive is 25 Amps. Motor feedback technology supported on the drive is digital servo feedback. Cooling method used by the drive is natural convection.

The recommended ambient temperature for the DDS02.1-W025-DL05-01-FW is 0 to 45 degrees Celsius. The output of the drive falls below rated values for temperatures above 45 degrees Celsius. Operation of the DDS02.1-W025-DL05-01-FW at temperature that are above 55 degrees Celsius is not permitted. The drive can deliver rated output at altitudes of up to 1000 meters. Operation of the DDS02.1-W025-DL05-01-FW at altitudes above 5000 meters is not permitted. During transportation and storage the ambient temperature should be maintained between -30 and 85 degrees Celsius. The housing of the DDS02.1-W025-DL05-01-FW belongs to the IP20 protection category. Improved environmental protection is possible if the drive is mounted inside an industrial cabinet. The maximum allows relative humidity level is 95% and the maximum allowed absolute humidity level is 25 grams per cubic meters. For reliable and safe operation the drive must be installed by qualified personnel.

DDS02.1-W025-DL05-01-FW Documents

  • DDS021W025DL0501FW
  • DDS02 1 W025 DL05 01 FW
  • dds02.1-w025-dl05-01-fw

DDS02.1-W025-DL05-01-FW Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 25 A
