DDS02.1-W015-RL01-01-FW

  • Rated 4.6 (37 total ratings)
  • MPN: R911266510
  • Call for Expedited Shipping and Product Condition Options

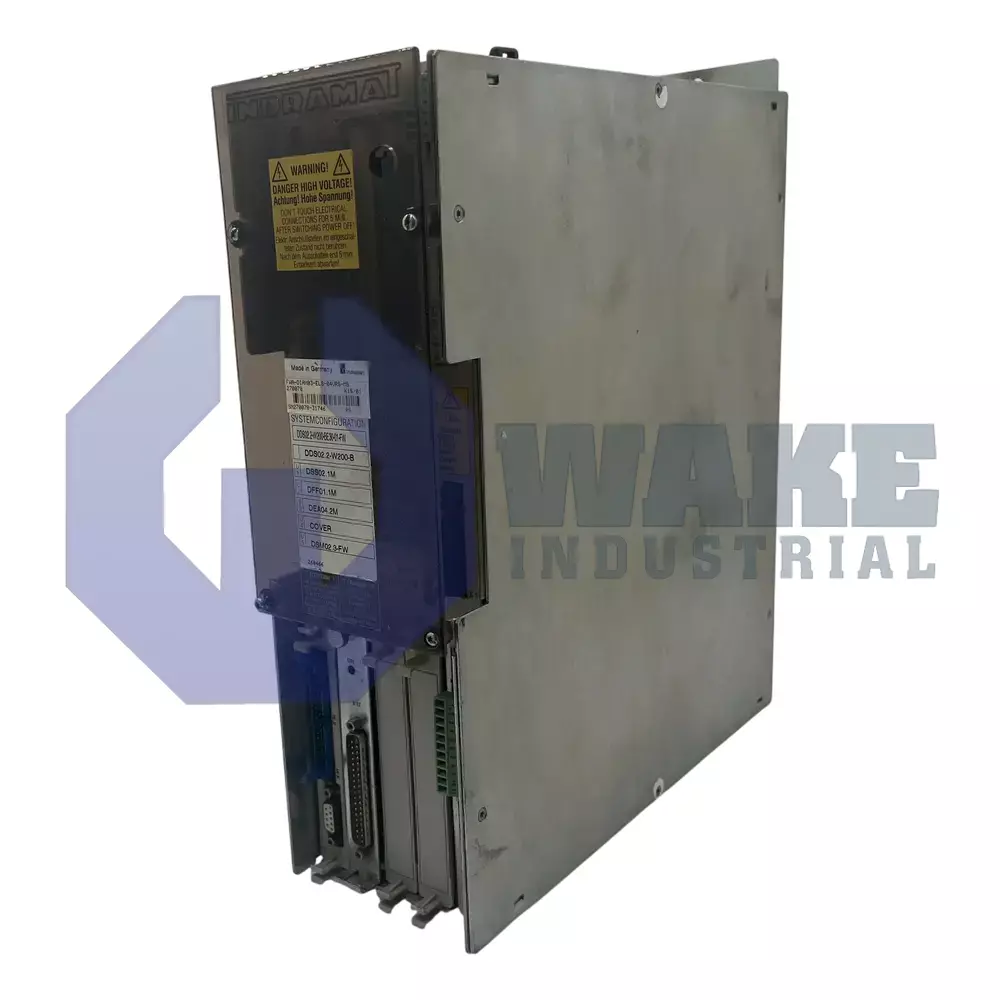

The DDS02.1-W015-RL01-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 15 A rated current, and Resolver Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-W015-RL01-01-FW

  • Rated 4.6 (37 total ratings)
  • MPN: R911266510
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-W015-RL01-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 15 A rated current, and Resolver Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a DDS02.1-W015-RL01-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth is the manufacturers and supplier of reliable electrical automation equipment. The company provides its products to various industrial and commercial sectors.

The DDS02.1-W015-RL01-01-FW model is a specially designed digital intelligent drive controller used to operate several synchronous and linear motors. The DDS02.1 drive controller comes in a modular design and the controller with high power output should be installed closer to the power supply module. The controller is designed as per UL standards. The model uses heat technology to dissipate heat within the control cabinet by using cooling airflow inside the control cabinet. The controller is designed as per IP20 protection standards and it must be installed in the large control cabinet of minimum IP54 protection classification. The DDS02.1 drive controller operates at the rated current of 15 A, and is connected to the power supply unit with the help of a 24 VDC power supply module. The firmware module for this controller must be ordered separately according to the required operations. The basic unit of the controller is equipped with plug-in slots (U1 – U5) and a rating plate is also placed on this controller. The controller shows its error signals via the H1 status display and an S1 fault reset key is also provided at the top of the H1 display.

The model DDS02.1-W015-RL01-01-FW can operate ideally under the ambient temperature range of 0 to +45 degree Celsius with the maximum bearable temperature of +55 degree Celsius. The controller is equipped with resolver feedback and a single-axis positioning module. The DLC01.1 module is installed in the U1 slot of the controller whereas the U2 slot is equipped with a DEA04.1 input/output interface. Slot U3 – U4 is empty and the firmware module DSM02.1-FW is installed in the U5 slot of the drive controller. You can order this model (DDS02.1-W015-RL01-01-FW) from Wake Industrial.

DDS02.1-W015-RL01-01-FW Documents

  • DDS021W015RL0101FW
  • DDS02 1 W015 RL01 01 FW
  • dds02.1-w015-rl01-01-fw

DDS02.1-W015-RL01-01-FW Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Resolver Feedback
Rated Current: 15 A
