Product Description

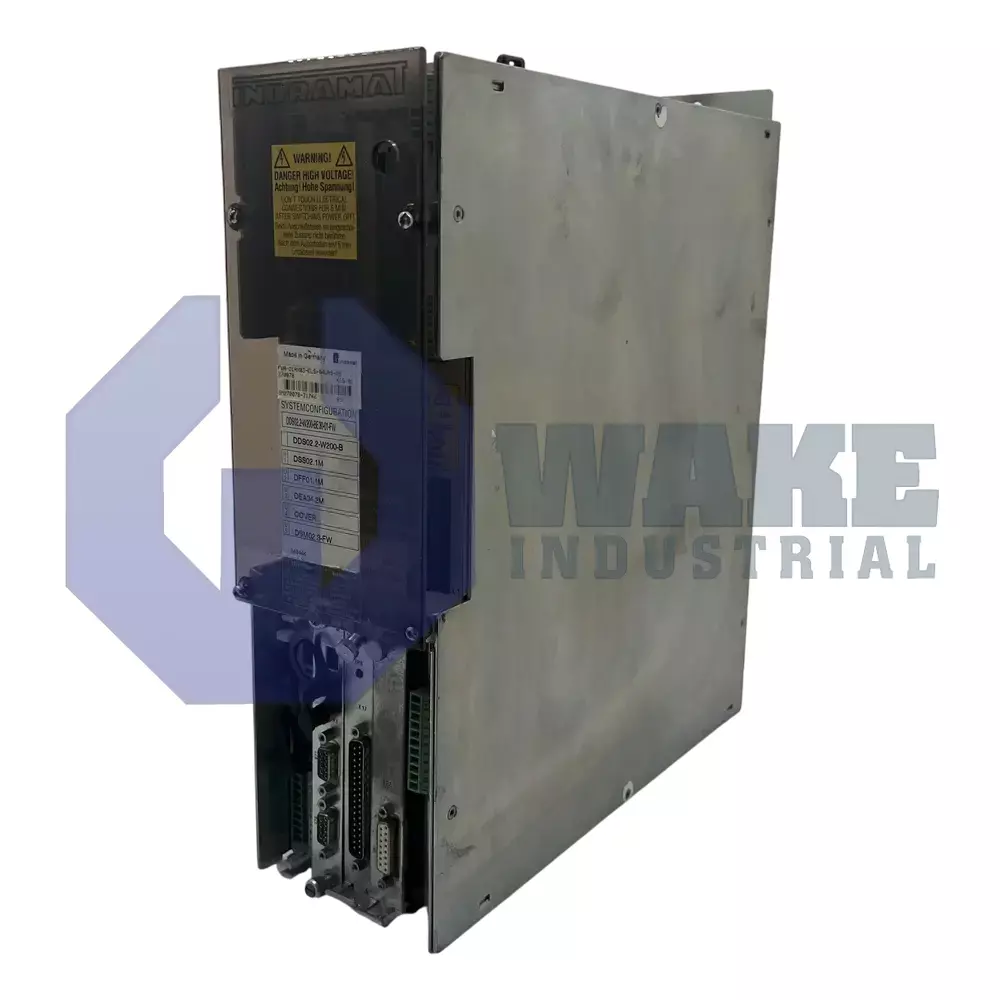

The Bosch Rexroth DDS02.1-W015-DS51-01-FW is a DDS drive controller. It includes a SERCOS communication interface. The SERCOS interface provides real-time serial communication between NC controls and drives. SERCOS allows users to gain the full benefit of digital drives. SERCOS enables display and entry of internal drive data and parameters, high speed resolution, fine interpolation and position control loop, normalization of position, velocity and acceleration and reduced complexity of NC controls. The function ID of the DDS02.1-W015-DS51-01-FW drive is 51 and the function ID version is 01. Other features supported by the DDS02.1-W015-DS51-01-FW include digital servo feedback and convection cooling. The rated output of the DDS02.1-W015-DS51-01-FW is 15 Amps. The input voltage rating of the controller is 24 Volts DC. Only supplies with regulated output should be used.

The constituent parts of a configured DDS controller such as the DDS02.1-W015-DS51-01-FW are basic unit, software module, command communication module, plug in modules, protective cover and rating plate. The rating plate is attached to the drive and lists all relevant technical specifications required for drive identification. The information on the rating plate helps with equipment verification at time of delivery. The information on the rating plate is also helpful when spare parts and accessories need to be procured. The features supported by the drive are determined by the combination of hardware and firmware. Bosch develops firmware with different feature sets. The firmware for the DDS02.1-W015-DS51-01-FW has to be ordered separately. The firmware is located on the software module that installs on slot U5 of the basic unit. The command communication module, which is SERCOS, is installed on slot U1. Three slots are available on the basic unit for optional plug-in modules.
