DDS02.1-A100-DS63-01-FW

  • Rated 4.5 (12 total ratings)
  • MPN: R911285529
  • Call for Expedited Shipping and Product Condition Options

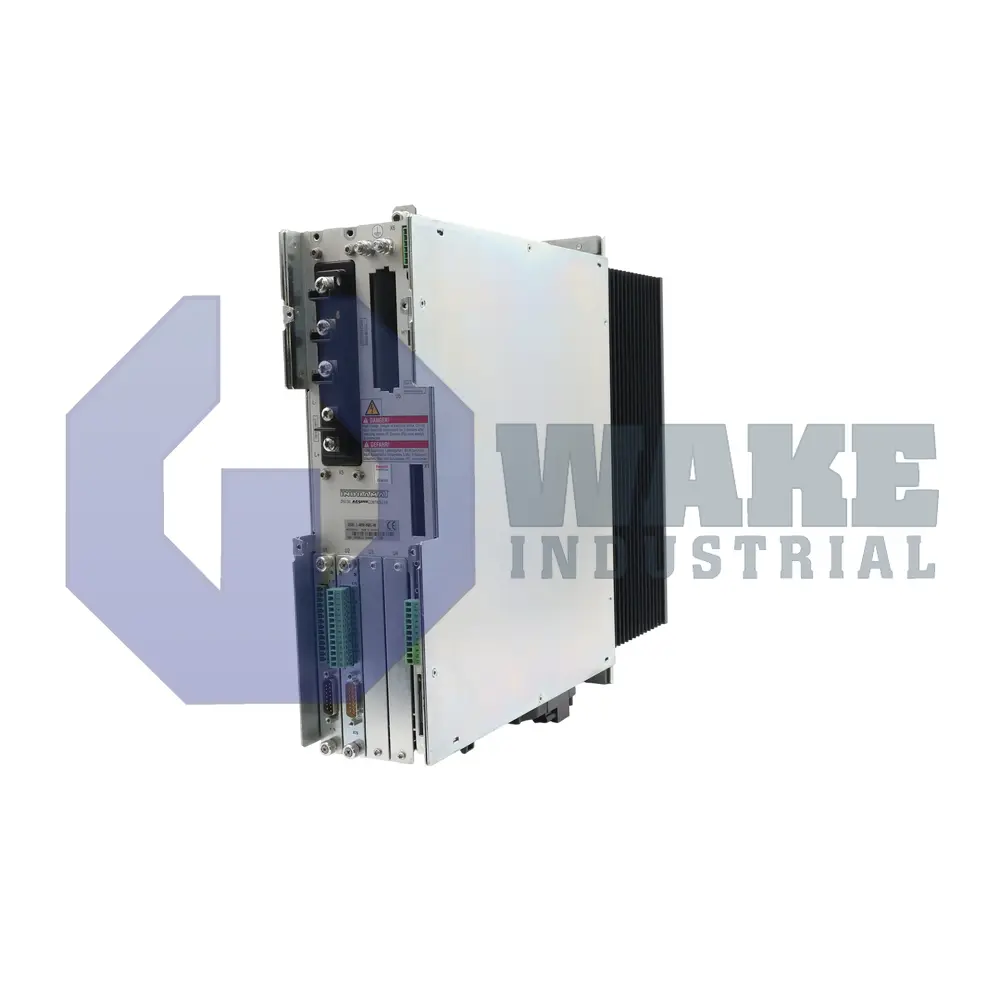

The DDS02.1-A100-DS63-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with External Cooling, 100 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-A100-DS63-01-FW

  • Rated 4.5 (12 total ratings)
  • MPN: R911285529
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-A100-DS63-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with External Cooling, 100 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a DDS02.1-A100-DS63-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch Rexroth DDS02.1-A100-DS63-01-FW drive controller must use D subminiature plugin connectors or plugin clamps for its signal lines. The product features an X3 connector that serves as a RS 232 interface to connect a PC or a VT-100 terminal. The power connection of the device has to be isolated using a starting lockout or an emergency stop circuit to render protection against unintentional startups. The controller is integrated with a basic unit, software and plugin modules as well as firmware in the configured state. The software module of this unit is inserted in the U5 slot at the top. The basic unit has a separate rating plate.

The drive controller portrays a rated current of 100A. This product may require air conditioning to be implemented during operation. This device makes use of a firmware that gets updated continuously without changing the functions for accurate performance. The firmware is a plugin module that must be bought as a separate subitem. The drive uses a SERCOS interface for command communication. The SERCOS interface allows the drive to communicate with compatible controls through a fiber optic cable. The plugin modules other than the software module are inserted in the U1 to U4 slots.

The product features a configuration rating plate that can help to procure the replacement parts correctly when there is a breakdown. The term COVER on the configuration rating plate indicates that the corresponding slot of the basic unit is empty. The device has an 80A continuous current rating. The current consumption of the drive is the sum of current consumptions of its basic unit, motor feedback and plugin module. The controller can operate at a maximum temperature of 55°C. This product does not have protection against the penetration of water. The device is available with a year’s Wake Industrial warranty and is eligible for international shipping.

DDS02.1-A100-DS63-01-FW Documents

  • DDS021A100DS6301FW
  • DDS02 1 A100 DS63 01 FW
  • dds02.1-a100-ds63-01-fw

DDS02.1-A100-DS63-01-FW Technical Specifications

Cooling: External Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 100 A
