DDS02.1-A100-DS23-03

  • Rated 4.6 (5 total ratings)
  • MPN: R911265077
  • Call for Expedited Shipping and Product Condition Options

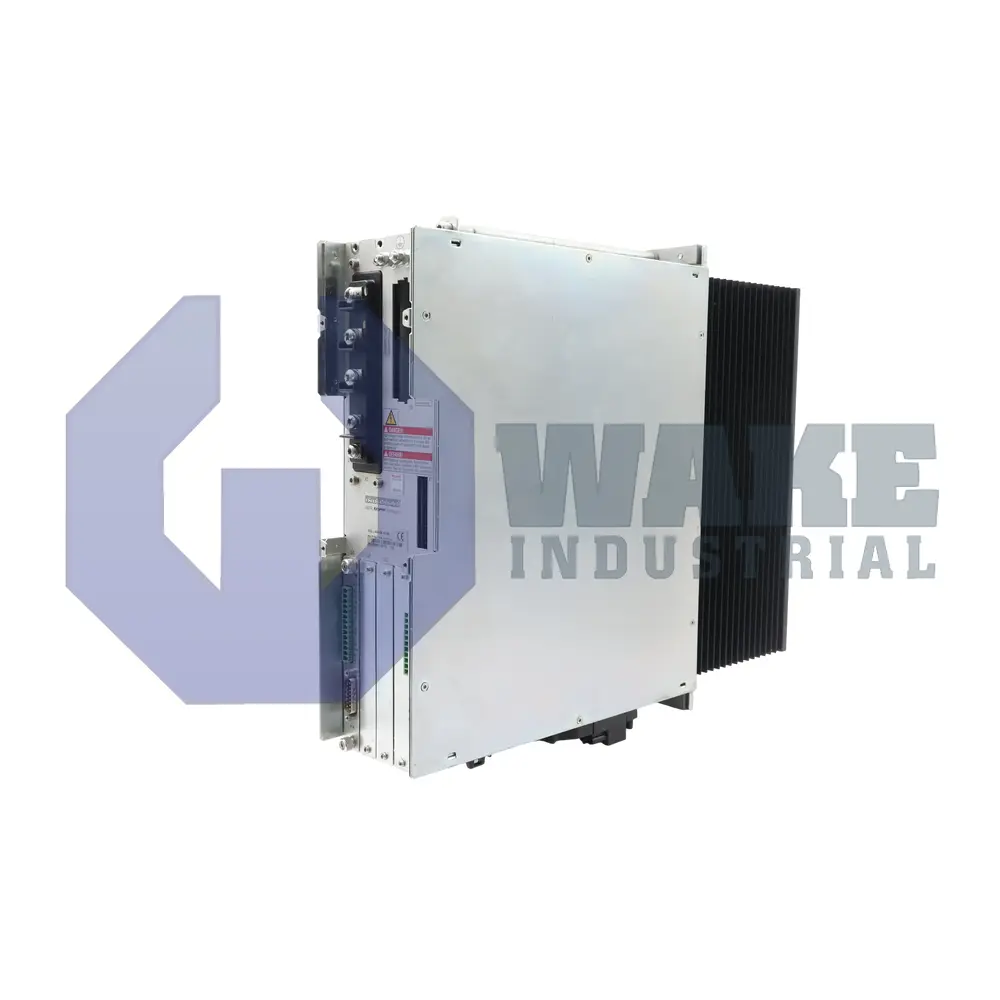

The DDS02.1-A100-DS23-03 Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with External Cooling, 100 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-A100-DS23-03

  • Rated 4.6 (5 total ratings)
  • MPN: R911265077
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-A100-DS23-03 Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with External Cooling, 100 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a DDS02.1-A100-DS23-03 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch Rexroth Indramat DDS02.1-A100-DS23-03 drive controller is part of the Indramat DDC series. It is equipped with a cold technology cooling system and weighs approximately 11 kg. While DDS drive controllers are mostly compatible with Rexroth Indramat supply units that provide a regulated direct current voltage, unregulated TVM 1.2 power supply units are not necessarily compatible. This unit includes a digital servo motor feedback system. Also, its current rating is 100 A. It features a SERCOS interface as its command communication module.

The DDS02.1-A100-DS23-03 is capable of producing a substantial amount of heat energy, with most of it dissipated outside its cabinet. This makes it a good choice for space-constrained cabinets. In addition, the hardware configuration determines which software modules are required. The software contains both the firmware and the drive parameters, which are both stored within the software module. In accordance with DIN 40 050, this drive controller and supply unit are intended for installation in a control cabinet and meet the requirements of the IP 10 protection class, as per DIN 40 050.

The DDS02.1-A100-DS23-03 has a function I.D of 23, and its function I.D version is 03. As indicated by the rated data, this unit's maximum permissible environmental temperature is between 0 and 45 degrees Celsius. In addition, the maximum acceptable altitude for setup is 1000 meters high. It is necessary to use a variety of modules in order to adapt the basic unit of the DDS02.1-A100-DS23-03 to different functions. When DDS drive controllers are delivered, they are already configured to perform the desired function. An appropriately configured drive controller is made up of some different components, which include the drive controller's basic unit as well as plugin modules, software modules, and firmware.

DDS02.1-A100-DS23-03 Documents

  • DDS021A100DS2303
  • DDS02 1 A100 DS23 03
  • dds02.1-a100-ds23-03

DDS02.1-A100-DS23-03 Technical Specifications

Cooling: External Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 100 A
