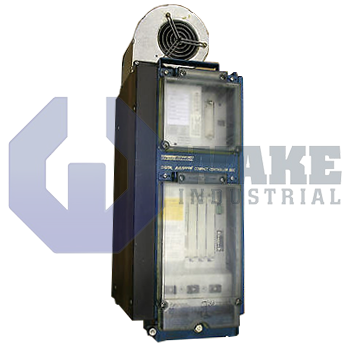

DDC01.2-K100A-D Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911272348
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
6 Seconds
The Bosch Rexroth Indramat DDC01.2-K100A-D is part of the DDC Digital Intelligent Servo Drives series and has a rated current of 100 Amps. It offers continuous mechanical load of 6 kW, peak mechanical load of 17 kW, and is cooled by natural convection. The drive features digital servo feedback, an IP65 protection category, and weighs 22 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDC01.2-K100A-D is a digital intelligent servo drive produced by Bosch Rexroth Indramat for the DDC Digital Intelligent Servo Drives series. It combines power electronics with onboard control logic to govern synchronous or induction servo motors in automated production cells, maintaining commanded motion profiles while processing high-resolution position data from the connected feedback system. In industrial automation lines, the unit handles axis regulation tasks that require rapid response and repeatable accuracy. Its integrated control structure allows the drive to manage motor current and motion behavior within a single housing, which helps support compact machine layouts.
The drive supplies a rated output of 100 A, allowing it to energize medium-frame motors without external current boosters. Under continuous duty, it can transfer a mechanical load of 6 kW, and momentary demand surges are accommodated up to a mechanical peak of 17 kW. During deceleration, the internal bleeder dissipates excess DC-bus energy; it supports 0.25 kW of continuous braking power and tolerates short peaks of 20 kW, so external resistors are not usually needed. The noise emission is standard for the 100 A to 200 A class, which helps keep operating sound levels predictable in installed equipment. This arrangement supports controlled acceleration and deceleration in applications that cycle between motoring and braking states.
Total conversion losses are limited to 500 W, while the incoming supply must deliver 18 kVA at full load. The housing meets the IP65 protection category, making it suitable for installation on machine frames outside a control cabinet when cable entries are properly sealed. Natural convection air cooling removes heat, and a 4 kHz PWM carrier helps limit switching losses during operation. Up to 10 kWs of regenerated energy can be absorbed by the DC link. The drive is series 1 and version 2. Weighing 22 kg, the unit can be mounted directly on moving axes when the machine design requires the drive to travel with the mechanical system.
Frequently Asked Questions about DDC01.2-K100A-D:
Q: What is the continuous mechanical load rating of the DDC01.2-K100A-D servo drive?
A: The DDC01.2-K100A-D has a continuous mechanical load capacity of 6 kW.
Q: What is the peak bleeder power specification for the DDC01.2-K100A-D?
A: This model supports a peak bleeder power of 20 kW for handling short-term excess energy.
Q: What cooling method does the DDC01.2-K100A-D servo drive utilize?
A: The DDC01.2-K100A-D is cooled by natural convection using ambient air.
Q: What type of motor feedback is employed in the DDC01.2-K100A-D?
A: This servo drive features digital servo feedback for precise motor position monitoring.
Q: What protection category does the DDC01.2-K100A-D servo drive offer?
A: The DDC01.2-K100A-D is rated for IP65 protection against dust and low-pressure water jets.
