Product Description:

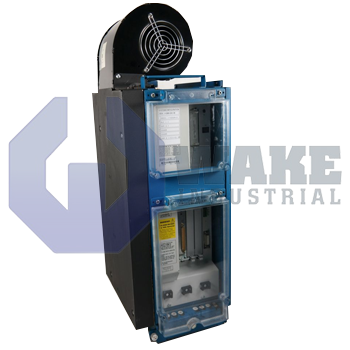

The DDC01.1-K200A-DA02-00 is a servo drive developed by Bosch Rexroth Indramat within the DDC Digital Intelligent Servo Drives series. As a digital intelligent servo drive, it converts incoming power and control signals into regulated motor output for synchronous or asynchronous motors in automated machinery. It is intended for applications such as packaging systems, transfer lines, and other equipment that depends on accurate axis response. Internal real-time processing supports coordinated torque, speed, and position control so multiple motion functions can be managed with stable dynamic performance.

The drive channel is rated for 200 A of continuous output and can accept a maximum connected load of 22.5 kVA, which matches the power section to mid-range industrial servomotors. Switching occurs at a 4 kHz PWM frequency, which balances current ripple and semiconductor loading. A bleeder network absorbs regenerated energy with a peak dissipation capability of 40 kW, helping protect the DC link during rapid deceleration. Control signals enter through the analog interface command module, while rotor position data returns through digital servo feedback for closed-loop regulation. Cooling is provided by natural convection and dissipates 540 W of internal power loss. The housing has an IP65 rating for resistance to dust and water during machine operation.

The bleeder can dissipate 1.0 kW continuously, allowing the drive to handle cyclic braking without overheating, while the power stage supports a continuous mechanical load of 15 kW delivered to the motor shaft. Up to 10 kWs of regenerated energy may return to the DC link before an external braking resistor is needed. With a mass of 22 kg, the module is suitable for direct installation on machinery. The housing measures 220 mm wide, 298 mm deep, and 775 mm high. The unit carries function code 02 and is Series 1 Version 1.
