DDC01.1-K200A-D

Name: DDC01.1-K200A-D
Brand: Bosch Rexroth Indramat
Price: 378 USD
Availability: InStock
Rating: 4.6 (32 reviews)

Rated 4.6 (32 total ratings)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 1-2 Days

Current response time:

4 Minutes 0 Seconds

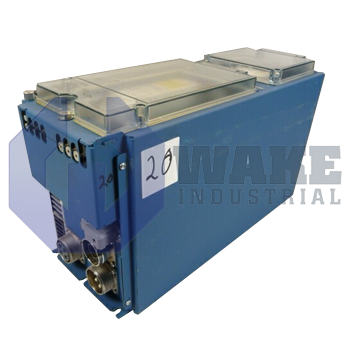

The Bosch Rexroth Indramat DDC01.1-K200A-D servo drive, part of the DDC Digital Intelligent Servo Drives series, operates on input voltages of 3x 220V (+15%/-10%) or 3x 230V (+10%/-15%). It offers integral DC bus dynamic braking, supports analog and SERCOS interfaces, and has a peak current of 200A. The unit uses natural convection cooling.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The DDC01.1-K200A-D is a servo drive most commonly used for tasks in industrial automations. It is made by Bosch Rexroth. The model is one of the most effective products of the DDC Digital Intelligent Servo Drives series.

The DDC01.1-K200A-D servo drive is designed to operate a brushless motor which means less maintenance, longer lifespan and higher efficiency compared to brushed motors. The servo drive supports modular configuration, including a DLC module for controlling single axis motion, DSM software for system configuration or motion programming and auxiliary plug in modules for added functionality like I/O or communication interfaces. The module supports complex automation tasks, capable of storing and executing up to 3000 individual programming blocks, which may include motion commands, logic conditions or I/O control. It is dust tight and protected against low pressure water jets because of IP 65 rating. It comes with standard dual cable connection in which one cable is used for power delivery to the motor and another for feedback to monitor motor performance and ensure precise control. The drive is compatible with specific auxiliary modules, which may add communication interfaces, safety features or custom I/O options.

The DDC01.1-K200A-D servo drive is designed with low energy consumption and high performance such as featuring regenerative braking, efficient power electronics and optimized control algorithms. It is intended for industrial use with medium voltage levels between 380 to 460 volts which is typical in three phase power systems. It is built to support Interbus S which is a fieldbus communication protocol and uses the DBS 2.2 interface module for integration into industrial automation networks. It is a high power drive capable of delivering up to 200 A which suggests it is meant for driving large and high torque motors in demanding applications.

DDC01.1-K200A-D Technical Specifications

Input Voltage:	3x 220V (+15%/-10%) or 3x 230V (+10%/-15%)
Dynamic Braking:	Integral DC bus dynamic braking
Cooling Type:	Air, natural convection
Interfaces (command Module Options):	Analog, SERCOS, Single-axis positioning control
Diagnostic Display:	Alphanumeric display
Motor Feedback Options:	Digital servo feedback, Resolver feedback
Frequency:	50-60 Hz
Protection Category:	IP65
Peak Current:	200 A
Short-term Current (100 Seconds, 50% Duty Cycle):	90 A
Continuous Current (average):	45 A
Ambient Temperature (operating):	0-45°C (rated) / Maximum: 55°C
Storage Temperature:	-30 to +85°C
Maximum Elevation (rated Conditions):	1000 meters

Frequently Asked Questions about DDC01.1-K200A-D

Q: How does the IP65 rating of DDC01.1-K200A-D enhance its durability in harsh conditions?

A: The IP65 rating ensures protection against dust and water jets, making the DDC01.1-K200A-D ideal for demanding industrial environments. It helps extend operational life significantly.

Q: Why is modular configuration important for the DDC01.1-K200A-D servo drive?

A: Modular configuration allows customization using DLC, DSM, and auxiliary modules. This flexibility optimizes performance for specific machine applications.

Q: What is the advantage of regenerative braking in DDC01.1-K200A-D servo drives?

A: Regenerative braking improves energy efficiency by feeding excess energy back into the system. It reduces heat generation and operating costs.

Q: How does the DBS 2.2 interface module benefit communication in the DDC01.1-K200A-D?

A: The DBS 2.2 module enables fast, reliable data exchange via Interbus S networks. It ensures precise control and easy system integration.

Q: Why is high rated current important in the DDC01.1-K200A-D servo drive?

A: With a rated current of 200 Amperes, the DDC01.1-K200A-D can drive large, high-torque motors. It supports heavy industrial operations reliably.

Internal Product Review

‘‘The DDC01.1-K200A-D servo drive by Bosch Rexroth delivers outstanding performance with high energy efficiency and 200 A rated current. Its compatibility with Interbus S and modular configuration enables flexible system integration. Designed with compact housing and regenerative braking, it ensures reliable operation in demanding applications.’’
