Product Description:

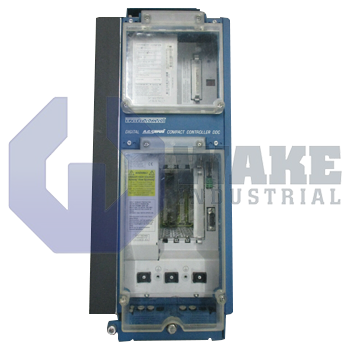

The DDC01.1-K150A-DS47-00-FW is a digital intelligent servo drive manufactured by Bosch Rexroth Indramat for the DDC Digital Intelligent Servo Drives series. It delivers regulated power and closed-loop motion control to synchronous axes used in machining cells, material-handling gantries, and automated assembly lines. By combining power electronics, signal processing, and fieldbus communication in one unit, it supports accurate speed and torque control for repeatable industrial motion.

A continuous output of 150 A is available when the drive is supplied with 220/230 VAC three-phase power at 50/60 Hz, allowing connection to common factory power systems. The internal SERCOS interface command module exchanges setpoints and diagnostics with the controller, while digital servo feedback closes the velocity loop for stable axis regulation. DC bus protection is set to 475 V for overvoltage and 200 V for undervoltage, and the drive disables firing if the bus moves outside that range. Cooling is handled by a built-in blower that moves air across the heat sink, and the housing requires 300 mm of clearance above and below to maintain airflow. Under the stated 100 A to 200 A operating band, the noise emission is standard.

The housing has an IP65 rating, allowing installation in areas exposed to dust or directed washdown. With the blower installed, the overall height is 775 mm, the width is 298 mm, and the depth is 220 mm. An additional cable space of 140 mm is required for strain-relieved power and feedback leads, which should be considered when planning cabinet depth and cable routing. The unit is series 1 and version 1. These identifiers indicate the product generation used for this drive type.
