CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW

  • Rated 4.5 (36 total ratings)
  • MPN: R911329777
  • Call for Expedited Shipping and Product Condition Options
The CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW Advanced Control System is manufactured by Bosch Rexroth Indramat. This system operates with a MultiEthernet master communication configuration, its primary encoder option is EnDat 2.1/1 Vpp/TTL and it has two analog ouputs.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW

  • Rated 4.5 (36 total ratings)
  • MPN: R911329777
  • Call for Expedited Shipping and Product Condition Options
The CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW Advanced Control System is manufactured by Bosch Rexroth Indramat. This system operates with a MultiEthernet master communication configuration, its primary encoder option is EnDat 2.1/1 Vpp/TTL and it has two analog ouputs.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

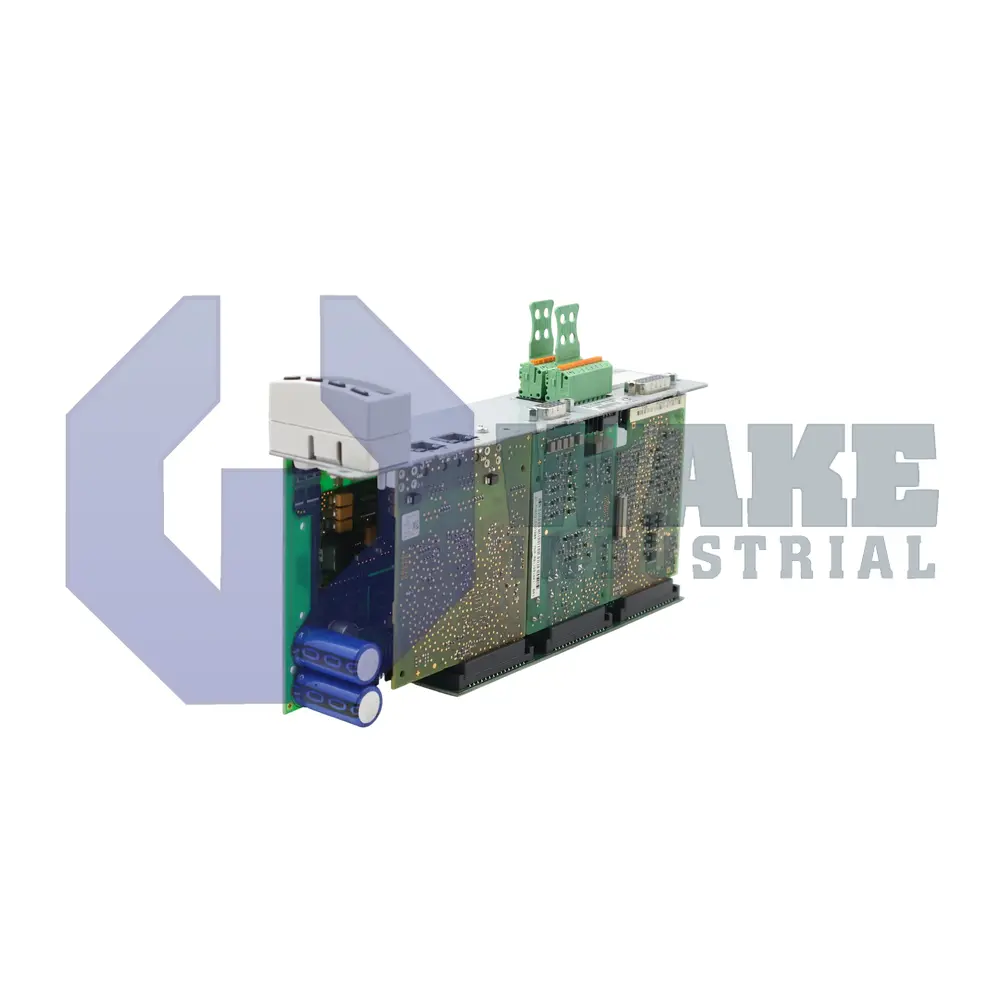

The Bosch Rexroth CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW is a control section for IndraDyn controllers. Bosch manufactures three types of control sections which are basic, basic universal and advanced. These differ with regard to configurability, interfaces and cycle times. The CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW is an advanced and configurable control section. As per the type code, the product is CSH, the line is 1 and the design is 1. The control section can be identified by a type plate that is attached to its front panel. This type plate includes information including the type code, the part number, the serial number and the bar code. The type plate for the firmware is also attached to the control section. The information for these type plates helps with identification and also at the time of ordering of parts and components.

The CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW has three slots for plug-in modules and one slot for safety technology. Only one of the slots for plug-in modules is filled while the remaining two are empty. The plug-in module installed on the CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN- FW is encoder with EnDat 2.1 interface. A module that supports safe torque off functionality is installed in the safety technology slot. The front panel of the CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW also contains a slot for a removable memory card. Master communication on the device is Multi-Ethernet. The CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW is fitted with a standard control panel that is not hot-swappable. The control section is designed for vertical mounting and measures 241 x 103 x 49.5 millimeters. Appropriate clearances should be provided on all sides for proper ventilation. Lack of ventilation will lead to abnormally high temperatures that could cause the device to fail. Bosch will also not be liable for equipment damage due to operation in non-specified environmental conditions.

CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW Documents

  • CSH011CETEN2NNNNNNL2SNNFW
  • CSH01 1C ET EN2 NNN NNN L2 S NN FW
  • csh01.1c-et-en2-nnn-nnn-l2-s-nn-fw

CSH01.1C-ET-EN2-NNN-NNN-L2-S-NN-FW Technical Specifications

Analog Outputs: 2
Master Communication: MultiEthernet
Primary Encoder Option: EnDat 2.1/1 Vpp/TTL
