CSB02.1A-ET-EC-NN-L3-NN-NN-AW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911381173
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat CSB02.1A-ET-EC-NN-L3-NN-NN-AW is part of the CSB Drive Controllers series and features a Multi-Ethernet communication interface with an RJ-45 8-pin port and 100Base-TX Ethernet standard. It supports 7 digital inputs, 1 analog input at ±10 V, and has safety technology with STO Safe Torque Off. This controller has a configurable I/O, position and speed control cycles as fast as 250 microseconds, and supports PWM frequencies up to 16 kHz.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

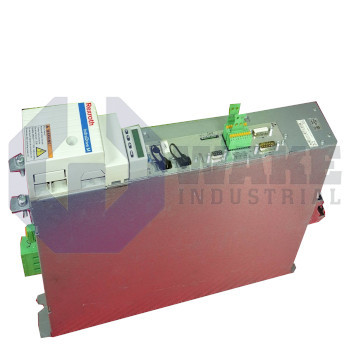

The CSB02.1A-ET-EC-NN-L3-NN-NN-AW is a single-axis drive controller produced by Bosch Rexroth Indramat within the CSB Drive Controllers series. Designed for servo and induction motor regulation in automated machinery, the unit coordinates current, speed, and position loops while exchanging data with higher-level PLCs through integrated Ethernet interfaces. Its role in an automation cell is to close the electrical drive circuit, translate command words into precise inverter pulses, and feed back status information for synchronous multi-axis motion.
The controller accepts one analog command channel scaled at ±10 V, allowing direct velocity or torque references from process hardware. It has 7 digital inputs that support enable, quick stop, and mode changes. Within the power stage, the current loop closes every 125/62.5 µs, so motor phase current follows reference steps with limited delay. Communication to plant networks uses Multi-Ethernet with the electrical layer conforming to 100Base-TX, ensuring fast messaging over Cat-5e cabling. Pulse generation for the inverter can be set to 2, 4, 8, 12, or 16 kHz, balancing switching losses and noise.
Complementary timing loops finish the control hierarchy: the speed regulator updates at 250/125 µs and the position loop at 500/250 µs, permitting tight contour accuracy when the application demands it. Safe machine shutdown is supported by the integrated STO (Safe Torque Off) function, which removes drive energy without external contactors. Network connection is provided through an RJ-45, 8-Pin socket, and the internal web server supports diagnostics. The integrated operating panel is ADVANCED, providing parameter entry and oscilloscope traces on a small front display. One configurable I/O channel, two probe inputs, and a single relay output supply auxiliary feedback, giving machine builders flexibility for home switches, latch events, or fan control without extra PLC cards.
Frequently Asked Questions about CSB02.1A-ET-EC-NN-L3-NN-NN-AW:
Q: How many digital inputs are provided on the CSB02.1A-ET-EC-NN-L3-NN-NN-AW?
A: The CSB02.1A-ET-EC-NN-L3-NN-NN-AW controller includes 7 digital inputs for flexible signal integration.
Q: What type of communication interface is available on the CSB02.1A-ET-EC-NN-L3-NN-NN-AW?
A: This model supports Multi-Ethernet communication, offering compatibility with various Ethernet-based network protocols.
Q: How many analog inputs are available, and what voltage do they accept on the CSB02.1A-ET-EC-NN-L3-NN-NN-AW?
A: The controller is equipped with one analog input that accepts ±10 V signals.
Q: What safety technology does the CSB02.1A-ET-EC-NN-L3-NN-NN-AW include?
A: This device features the STO (Safe Torque Off) safety technology for secure operation.
Q: How many probe inputs does the CSB02.1A-ET-EC-NN-L3-NN-NN-AW provide?
A: There are two probe inputs available for additional measurement or sensor integration.
