CSB01.1N-SE-ENS-NNN-NN-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911305276
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
31 Seconds

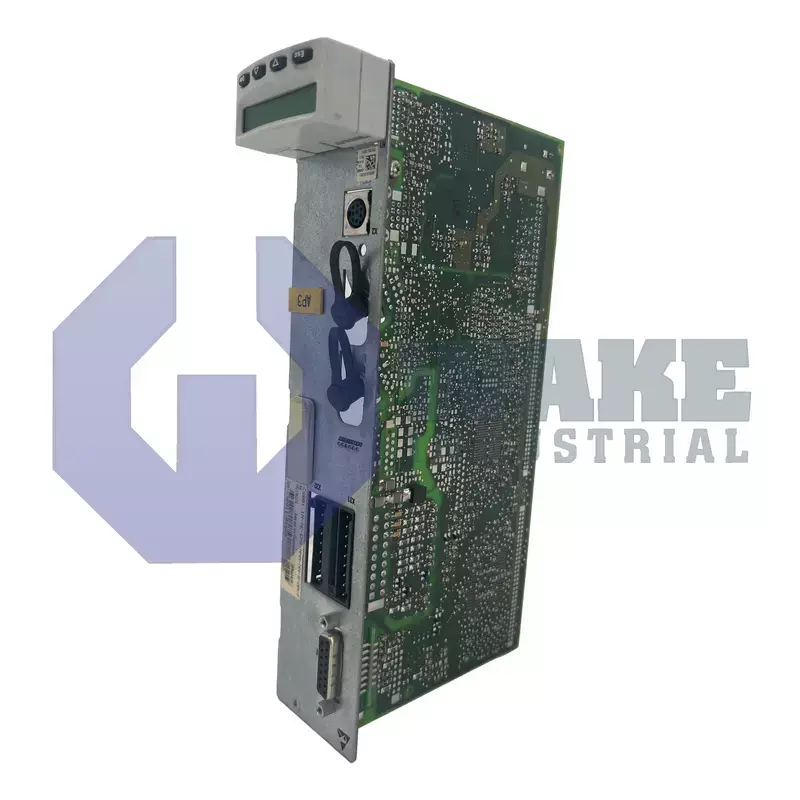

The Bosch Rexroth Indramat CSB01.1N-SE-ENS-NNN-NN-S-NN-FW is a drive controller from the CSB Drive Controllers series, featuring a combined digital I/O count of 3 with a maximum digital I/O supply current of 1.1 Amps. It operates with a supply voltage of 24 VDC and a maximum Sercos baud rate of 16 MBaud. The controller offers an encoder supply voltage of 11.6 VDC and supports relay contacts rated at 24 VDC, 1 Amp.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CSB01.1N-SE-ENS-NNN-NN-S-NN-FW is a control section produced by Bosch Rexroth Indramat for the CSB Drive Controllers series. Installed inside a multi-axis inverter rack, the board provides signal conditioning and fieldbus links so the converter can follow motion commands while monitoring feedback devices. Within an automation cell, it translates SERCOS telegrams, supervises encoder supplies, and energizes local digital I/O. By combining these functions on one module, the design reduces panel space and wiring needed for coordinated servo or spindle axes.
The module operates from a regulated backplane supply of 24 VDC, drawing up to 15.5 W during normal processing and diagnostic activity. Three combined digital I/O points are available; the local power rail can furnish 1.1 A to external sensors or actuators, while each input sinks only 3 mA and each transistor output can switch up to 0.5 A to ground. A pluggable relay offers 24 VDC switching at 1 A for galvanically isolated functions that exceed transistor limits. For deterministic motion sequences, the onboard SERCOS interface transmits and receives telegrams at up to 16 MBaud; the fiber-optic transceiver itself draws 2 W, and an optional front-mounted operator panel uses a separate 1 W allowance. Encoder ports supply 11.6 VDC at 300 mA for sine-cosine or EnDat sensors.
During startup, the control section presents an inrush demand of 5 A for no longer than 40 ms, permitting standard 24 VDC supplies to stabilize before foldback protection is triggered. High-speed probing inputs are scanned with a response time of only 1 µs, making the card suitable for position capture tasks such as flying saws or press synchronization. Internal signal processing, including position interpolation, is handled by electronics budgeted for 6 W of dedicated encoder evaluation power.
Frequently Asked Questions about CSB01.1N-SE-ENS-NNN-NN-S-NN-FW:
Q: How many combined digital I/Os does the CSB01.1N-SE-ENS-NNN-NN-S-NN-FW support?
A: This drive controller features 3 combined digital inputs and outputs.
Q: What is the maximum digital output current for the CSB01.1N-SE-ENS-NNN-NN-S-NN-FW?
A: The digital outputs on this model can supply up to 0.5 A of current.
Q: What is the maximum Sercos baud rate available on the CSB01.1N-SE-ENS-NNN-NN-S-NN-FW controller?
A: It supports a maximum Sercos baud rate of 16 MBaud for communication.
Q: What supply voltage is needed for the CSB01.1N-SE-ENS-NNN-NN-S-NN-FW drive controller?
A: The supply voltage required for this unit is 24 VDC.
Q: What is the probe input response time for the CSB01.1N-SE-ENS-NNN-NN-S-NN-FW controller?
A: It offers a probe input response time of 1 microsecond for fast input detection.
