CSB01.1C-SE-ENS-MA1-L1-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307295
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

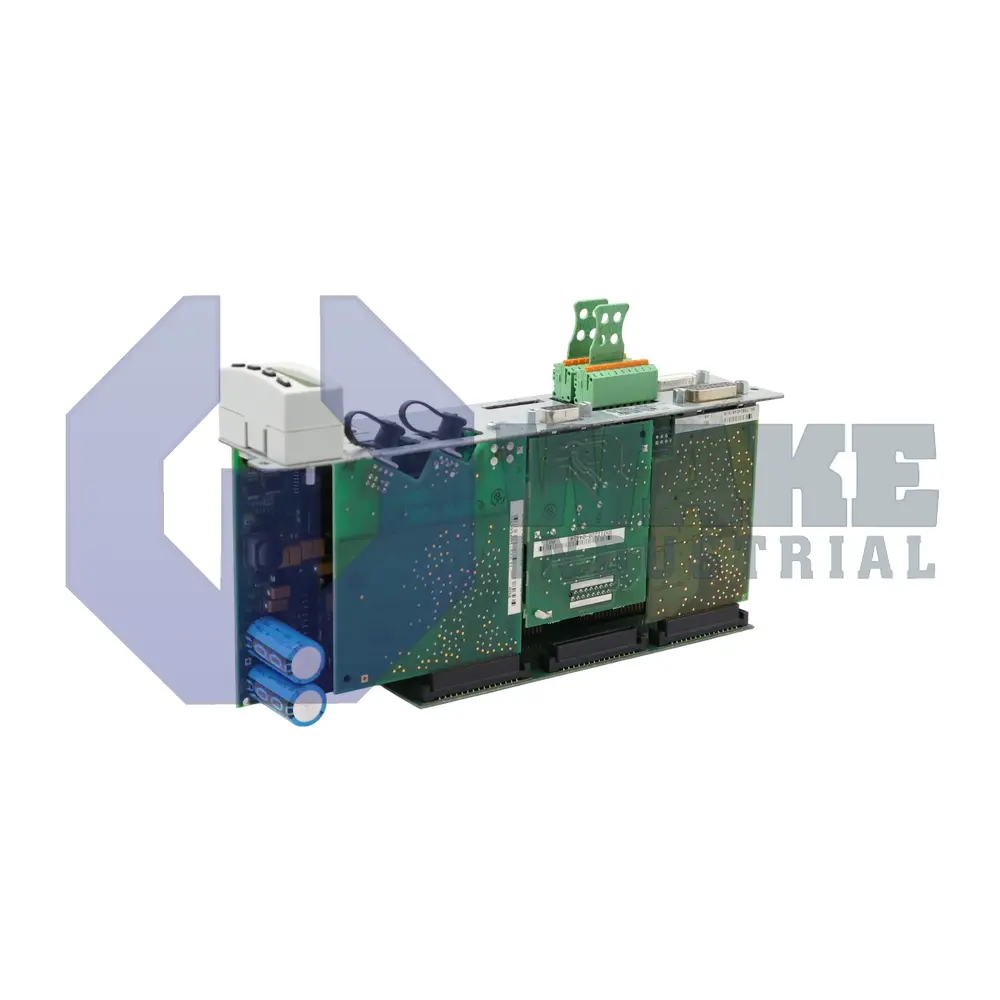

The Bosch Rexroth Indramat CSB01.1C-SE-ENS-MA1-L1-S-NN-FW is part of the CSB Drive Controllers series and features 2 differential analog input channels and 2 analog outputs, all with 12-bit resolution and ±10 V bipolar signals. The controller includes an ENS encoder interface supplying 11.6 VDC at 300 mA, supports IndraDyn, HIPERFACE, EnDat, 1 Vpp, and 5V TTL encoders, and uses SERCOS fiber optic communication. It is equipped with a starting lockout safety option and supports Stop Category 0.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CSB01.1C-SE-ENS-MA1-L1-S-NN-FW is a control section built by Bosch Rexroth Indramat for the CSB Drive Controllers series. Installed in a multi-axis cabinet rack, it serves as the command layer between a higher-level PLC and the power inverter that drives a servo or induction motor. By combining fast analog I/O, fiber-optic motion bus links, and an integrated safety channel, the unit coordinates position, speed, and stop functions used in packaging stations, material-handling lines, and other automated cells.
This section provides 2 differential analog input channels with 12-bit conversion so the drive can follow external speed or torque commands with fine granularity. Each input accepts a symmetrical 10 V bipolar signal, allowing positive and negative references around the zero point. Two analog outputs are also available, and they can source up to 10 mA for status feedback to external indicators or controllers. Feedback from the motor is read through the ENS encoder interface, and the card delivers up to 300 mA to power the transducer. Supported encoder types include IndraDyn, Hiperface, EnDat, 1 Vpp, and 5 V TTL formats, which allows the control section to work with several common motor feedback systems.
The encoder supply line is held at 11.6 VDC, providing stable excitation across the cabinet temperature range. Motion commands arrive over SERCOS, and Fiber Optic cabling is used as the transmission medium to electrically isolate individual axes and reduce ground-loop interference. A ready relay rated for 24 V DC at 1 A signals the controller’s operating state to interlocks. The safety option enables a starting lockout, and emergency deceleration follows the drive’s Category 0 stop profile. This arrangement supports coordinated shutdown behavior while keeping the safety and motion functions within the same control section.
Frequently Asked Questions about CSB01.1C-SE-ENS-MA1-L1-S-NN-FW:
Q: How many analog input channels are available on the CSB01.1C-SE-ENS-MA1-L1-S-NN-FW unit?
A: The CSB01.1C-SE-ENS-MA1-L1-S-NN-FW includes 2 differential analog input channels for connecting external analog sensors or control signals.
Q: Which communication medium does the CSB01.1C-SE-ENS-MA1-L1-S-NN-FW use for master control?
A: This drive controller features a SERCOS fiber optic interface for master communication.
Q: What is the analog output current rating of the CSB01.1C-SE-ENS-MA1-L1-S-NN-FW controller?
A: The analog output current per channel on this unit is rated at 10 mA.
Q: What encoder supply voltage does the CSB01.1C-SE-ENS-MA1-L1-S-NN-FW provide?
A: This model provides an encoder supply voltage of 11.6 VDC for supported encoders.
Q: What safety option is included in the CSB01.1C-SE-ENS-MA1-L1-S-NN-FW drive controller?
A: The safety option featured is 'starting lockout,' which prevents inadvertent system startups.
