CSB01.1C-S3-ENS-MEM-L1-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911316710
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

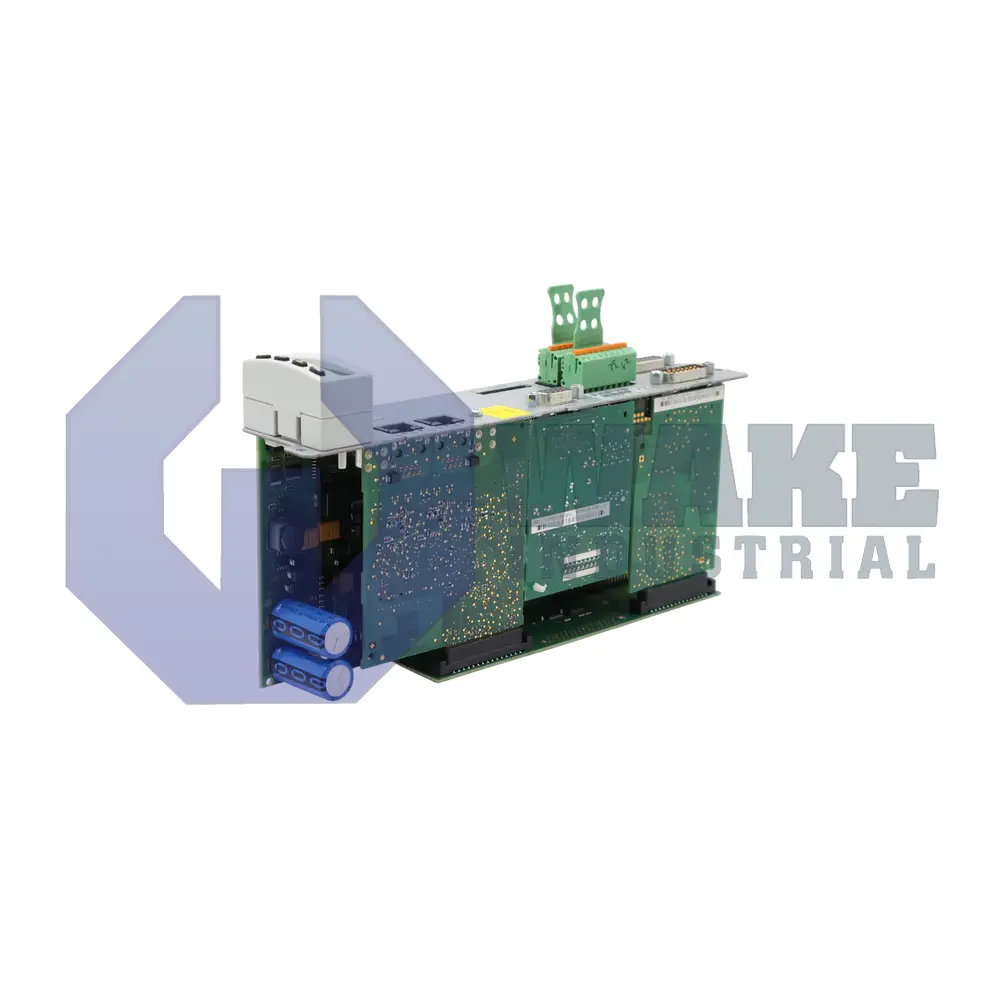

The Bosch Rexroth Indramat CSB01.1C-S3-ENS-MEM-L1-S-NN-FW is part of the CSB Drive Controllers series and supports SERCOS III communication with 100Base-TX compatibility. This controller features a 24 V digital output rated at 0.5 A and includes D-Sub 15 connectors for both ENS and MEM functions. It has a depth of 103 mm, height of 241 mm, and width of 49.5 mm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CSB01.1C-S3-ENS-MEM-L1-S-NN-FW option card is produced by Bosch Rexroth Indramat for the CSB Drive Controllers series. Fitted to a compact power section, the card provides axis control, field communication, encoder evaluation, and discrete outputs so drive regulators in automated lines can synchronize motion, collect position data, and execute fast stop commands. By integrating these functions on one board, it reduces cabinet wiring and simplifies the implementation of coordinated multi-axis systems used in packaging, material handling, and assembly equipment. This arrangement lets one control section coordinate feedback processing, network traffic, and stop functions without requiring separate interface hardware.
The primary network interface on this card supports SERCOS III, enabling cyclic data exchange with the drive at real-time update rates through an 8-pin RJ-45 port. A pair of transistor outputs is rated for 24 V / 0.5 A, allowing direct actuation of relays or interlock solenoids without an external amplifier. The ENS encoder subsystem digitizes sine-cosine feedback with a resolution of 12 bit; it receives power from an internal rail that delivers 11.6 V at up to 500 mA through a shielded D-Sub 15 connector. Additional D-Sub 15 and D-Sub 9 sockets service the MEM and L1 channels, permitting downstream capture of auxiliary probe signals and the connection of a safety relay or emergency stop chain.
The card occupies 49.5 mm of rack width and 103 mm of depth, and it rises to 241 mm above the mounting rail, so it fits inside a standard drive stack without obstructing airflow. High-speed capture tasks are handled by the MEM channel, which can toggle or count signals up to 1 MHz for spindle orientation or electronic gearing functions. When a stop request is invoked through the L1 interface, the hardware executes the predefined Category 0 shutdown path, removing torque in line with machine safety requirements. Ethernet frames on the SERCOS link comply with the 100Base-TX physical layer for deterministic communication over industrial Cat-5e cabling.
Frequently Asked Questions about CSB01.1C-S3-ENS-MEM-L1-S-NN-FW:
Q: What communication protocol is used by the CSB01.1C-S3-ENS-MEM-L1-S-NN-FW controller?
A: This drive controller supports SERCOS III communication for seamless integration into automation systems.
Q: What is the digital output rating for the CSB01.1C-S3-ENS-MEM-L1-S-NN-FW drive controller?
A: The digital output on this model is rated at 24 V and can provide up to 0.5 A.
Q: What types of connectors are present on the CSB01.1C-S3-ENS-MEM-L1-S-NN-FW controller?
A: It is equipped with three D-Sub connectors: ENS and MEM have 15 pins each, and the L1 interface is a 9-pin D-Sub.
Q: What is the maximum output frequency of the MEM interface on the CSB01.1C-S3-ENS-MEM-L1-S-NN-FW model?
A: The MEM interface on this controller can output frequencies up to 1 MHz.
Q: Which stop category is implemented for the L1 interface on the CSB01.1C-S3-ENS-MEM-L1-S-NN-FW drive controller?
A: The CSB01.1C-S3-ENS-MEM-L1-S-NN-FW supports Category 0 stop for the L1 function.
