Product Description:

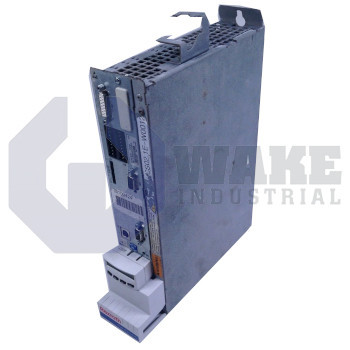

The CSB01.1C-PB-ENS-NNN-L1-S-NN-FW control section belongs to the CSB Drive Controllers series from Bosch Rexroth Indramat. Designed for servo axes used in packaging, handling, or printing lines, the board provides power-stage-independent command processing and diagnostic routines for a single drive channel. Within an IndraDrive stack, it coordinates velocity loops, interlocks safety channels, and exchanges setpoints with the supervisory PLC. Because the electronics are rack-mounted, cabinet depth is minimized, and heat dissipation is shared with adjacent power modules.

This section handles a single motion loop through its 1-axis architecture and communicates setpoints over PROFIBUS. Machine sensors can be wired directly to the board through integrated digital I/O, which reduces the need for external terminal blocks for start, limit, or home switches. Rotor position feedback is accepted through the IndraDyn, Hiperface, 1 Vpp, and 5 V TTL interface, allowing the same hardware to serve synchronous, asynchronous, or linear motors. Parameter sets and trace data are stored on a removable MultiMediaCard, keeping application data with the control section. One option slot remains available for later functional expansion, and no additional plug-in cards are installed at the factory.

Front-mounted controls are provided by the standard operator panel, giving access to setup menus and LED fault codes from the face of the unit. For hardwired feedback to safety relays or contactors, the board includes an integrated relay output that can be assigned to application events. Service tooling connects through the RS232 port, which carries the proprietary IndraDrive command set at selectable baud rates. The optional slot can host functions such as encoder, analog I/O, or emulation, extending interface density without changing the controller footprint.
