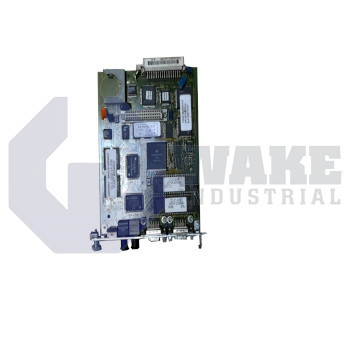

The Bosch Rexroth Indramat CLC-D02.1A-FW is a motion controller in the CLC Motion Controllers series. It uses a 68EC020 CPU with a 25.0 MHz clock frequency and has a built-in 68882 math coprocessor. The controller offers two serial ports supporting RS-232, RS-485, and RS-422 interfaces, as well as Sercos input and output channels.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CLC-D02.1A-FW is a motion controller produced by Bosch Rexroth Indramat in the CLC Motion Controllers series. It acts as the central command element in industrial automation cells, translating high-level program instructions into deterministic axis commands for connected drive amplifiers. With onboard control libraries, the module oversees interpolation, sequencing, and diagnostic routines, making it suitable for packaging lines, material-handling stations, and other discrete manufacturing tasks that require coordinated, real-time motion. Because it manages axis activity from one control point, it supports synchronized machine movement during indexing and contouring operations.
Electrical power is supplied at +5 Vdc, and the controller draws up to 800 mA, so the cabinet supply must support that load. Central processing is handled by a 68EC020 microprocessor running at 25.0 MHz, giving the controller enough speed for motion blocks while limiting heat generation. Volatile program data are stored in 512 Kbyte of SRAM, and the onboard battery retains that memory during shutdowns. The module provides one SERCOS input and one SERCOS output for fiber-optic ring integration, and it supports deterministic axis triggers even though no reset or abort switches are installed. A single-digit seven-segment LED conveys status codes during startup and diagnostics. This arrangement combines front-panel status display with closed-loop communication to connected motion hardware.
Non-volatile user programs reside in an EPROM socket that accepts up to 1 Mbyte of memory, and complex arithmetic for spline calculations is accelerated by the 68882 math coprocessor. Two asynchronous channels using RS-232/RS-485/422 standards handle parameter download and diagnostic echo, while a pair of serial ports allows simultaneous HMI and drive service connections. Backup energy is provided by a 0.9 Ah lithium cell at 3 V, maintaining the register map and SRAM image when input power is lost. Offloading floating-point calculations to the coprocessor helps the main processor remain available for sequencing and communication tasks.
Frequently Asked Questions about CLC-D02.1A-FW:
Q: What supply voltage is required for the CLC-D02.1A-FW motion controller?
A: The CLC-D02.1A-FW motion controller operates with a supply voltage of +5 Vdc.
Q: What is the CPU clock frequency of the CLC-D02.1A-FW motion controller?
A: This controller features a CPU clock frequency of 25.0 MHz for its processing operations.
Q: Which serial interface types are available on the CLC-D02.1A-FW?
A: The serial interface supported on this unit includes RS-232, RS-485, and RS-422 standards.
Q: What type of math coprocessor is included in the CLC-D02.1A-FW?
A: The CLC-D02.1A-FW is equipped with a math coprocessor 68882 for additional computational functions.
Q: What type of status display is provided on the CLC-D02.1A-FW?
A: There is a 1-digit 7-segment LED for status display on this motion controller.
