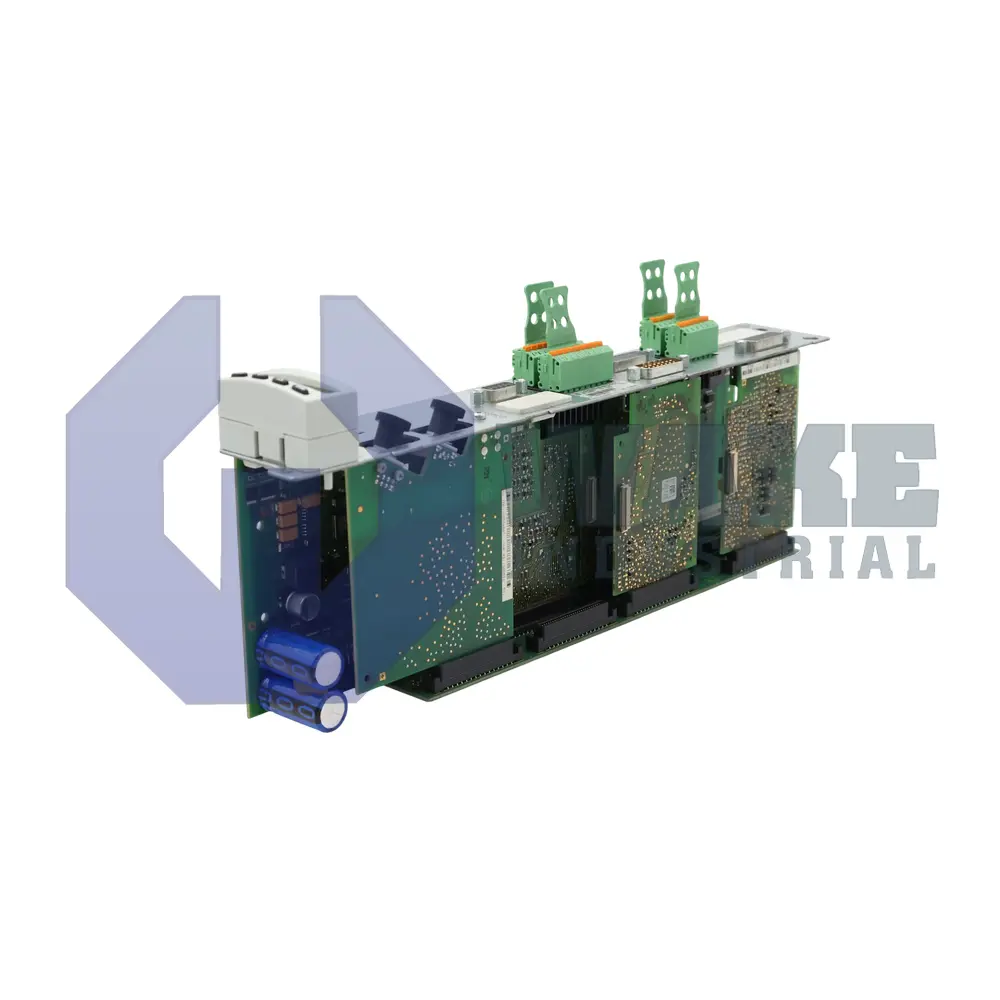

CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW

  • Rated 4.1 (9 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911320290
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
The CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW control unit is manufactured by Bosch Rexroth Indramat. The unit utilizes SERCOS Interface as its form of master communication, and it is equipped with various interface options including Encoder Indradyn/Hiperface/1 Vpp/TLL and Encoder EnDat 2.1/1Vpp/TLL.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW

  • Rated 4.1 (9 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911320290
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
The CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW control unit is manufactured by Bosch Rexroth Indramat. The unit utilizes SERCOS Interface as its form of master communication, and it is equipped with various interface options including Encoder Indradyn/Hiperface/1 Vpp/TLL and Encoder EnDat 2.1/1Vpp/TLL.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The CDB01 control sections are a family of control units in Bosch Rexroth's drive controllers. Together with the power sections, these control sections constitute the essential components of the drive controllers. They differ in configurability and available interfaces, enabling the drive controllers to execute several application-specific functions. Applications of the drive controllers include machine tools, food and packaging machines, printing and paper processing machines, and handling and mounting systems.

The CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW is a control unit in the BASIC UNIVERSAL range. Like other CDB01 control sections, it has two digital inputs, which can be combined to function as one analog voltage input. Also, it has two analog outputs and a current control cycle time of 125µs. Encoder systems with a supply voltage of 12V can be connected to the device via its standard encoder interface. Its evaluation encoder interface allows for the connection of encoder systems with a supply voltage of 5V. These encoders include the sin-cos encoder (1Vpp; En Dat) with Sense lines, the 5V- TTL square wave encoder with reference track, etc.

Another interface on the CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW is a Resolver and HSF encoder interface with 15 poles designed to transmit distinct signals. The encoder systems that can be connected to this interface include a digital servo feedback encoder, the hall sensor box SHL01.1, and the resolver (encoder interface for MKD motors). To prevent electric shock, this control unit’s connections and terminals with 5V and 50V are Protective Extra-Low Voltage (PELV) systems. It is classified as a product of category C3 per IEC 61800-3; hence, it is best suited for operation in industrial areas. Firmware can be used with it, but it must be ordered separately. This product can be shipped globally with a one year warranty period from Wake Industrial.





  • CDB011CSEENSEN2NNNEN1S1SNNFW
  • CDB01 1C SE ENS EN2 NNN EN1 S1 S NN FW
  • cdb01.1c-se-ens-en2-nnn-en1-s1-s-nn-fw
  • CDB1.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW

CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW Technical Specifications

Master Communication: SERCOS Interface
Option 1: Encoder Indradyn/Hiperface/1 Vpp/TLL
Option 2: Encoder EnDat 2.1/1Vpp/TLL
Option 3: Not Equipped
