BTM04.1-TA-TA-VA-BA-2FF-FW
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The BTM04.1-TA-TA-VA-BA-2FF-FW operator panel features a voltage of 24V DC, a capacity of 7.2 Ah, panel/enclosure mounting, and a protection class of IP20. Part of the BTM04 Machine Operator Panels by Bosch Rexroth Indramat, it operates within 0°C to +50°C and is constructed with durable ABS plastic casing.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch manufactured the BTM04.1-TA-TA-VA-BA-2FF-FW Machine Operator Panel as a reliable and durable solution for industrial automation. It is designed specifically for machine interface environments and this operator panel ensures efficient and intuitive interaction between the operator and machine systems.

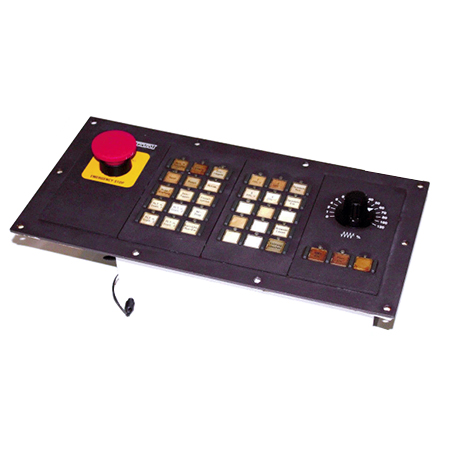

The BTM04.1-TA-TA-VA-BA-2FF-FW Machine Operator Panel includes a red emergency stop button for fast shutdowns. The panel has push buttons labeled with clear legends. It supports precise manual control using a rotary switch or encoder. That rotary element helps in feed rate override and spindle adjustments. It is also used for axis selection and positioning. The product has a wide operating temperature range of 0°C to +50°C. The front panel is built from metal or heavy-duty plastic. Its design offers durability in harsh factory settings. The panel integrates using a flush-mount style. It includes screw holes for easy installation in control consoles. The construction ensures reliable alignment with industrial enclosures. Module Slot 1 features a functional keyboard module for writing tasks. Module Slot 4 contains a Blind PlateMaster Board for coverage. This configuration supports manual control and process monitoring. It provides clear operator guidance during equipment operation. The panel allows for flexible configuration of machine commands. The rotary switch and buttons improve user interaction efficiency. Panel design ensures all critical controls are accessible to the operator.
The Machine Operator Panel BTM04.1-TA-TA-VA-BA-2FF-FW has a maximum heat loss of 20 W for effective thermal management during operation. The panel has a mass of 1050 g when equipped with an emergency off key, and 1300 g when configured with a handwheel. Visually, the panel comes in a RAL 7035 light gray finish that provides a clean and modern appearance suitable for industrial control stations. It also supports 16 addressable inputs and outputs that allows seamless integration into complex automation systems.
Frequently Asked Questions about BTM04.1-TA-TA-VA-BA-2FF-FW:
Q: How does the rotary encoder enhance control in the BTM04.1-TA-TA-VA-BA-2FF-FW panel?
A: The rotary encoder in this panel enables real-time spindle speed and axis override adjustments. This allows operators to fine-tune machine performance during runtime.
Q: Why is a flush-mount design important for the BTM04.1-TA-TA-VA-BA-2FF-FW panel?
A: The flush-mount style minimizes surface protrusion and allows seamless integration into enclosures. It improves ergonomic interaction and protects internal wiring from external exposure.
Q: Why is thermal management important in this panel’s 20 W heat loss rating?
A: The 20 W heat loss ensures that internal electronics remain within operating limits. This prevents thermal drift and prolongs system lifespan.
Q: How does the screw-mount design assist in secure installation of BTM04.1-TA-TA-VA-BA-2FF-FW?
A: The screw holes offer firm panel anchoring, ensuring vibration resistance. This helps maintain operator control consistency in high-movement machinery environments.
Q: What is the advantage of having 16 addressable I/Os in BTM04.1-TA-TA-VA-BA-2FF-FW?
A: The 16 inputs/outputs allow customizable signal routing for multiple machine functions. This is ideal for advanced automation sequences or interlocked systems.
