BTM04.1-TA-TA-TA-TA-2EA-FW
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The BTM04.1-TA-TA-TA-TA-2EA-FW operator panel supports 4 axes, features IP20 protection, operates within a 0°C to 45°C temperature range, and weighs approximately 8 kg. Part of the BTM04 Machine Operator Panels by Bosch Rexroth Indramat, it includes integrated firmware and utilizes a standard slot-in modular architecture.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The BTM04.1-TA-TA-TA-TA-2EA-FW Machine operator panel shows a four-axis setup with built-in software and modular control features. The panel is from the BTM04 line and is used on machines with more than one axis.

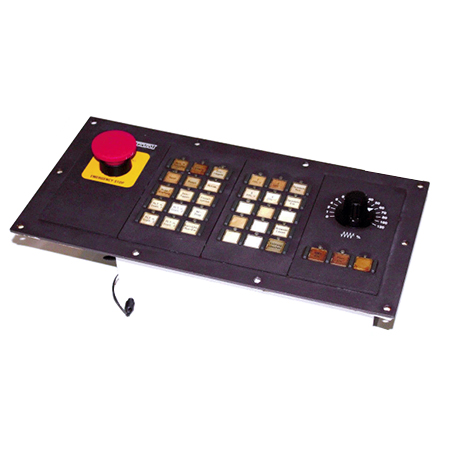

The BTM04.1-TA-TA-TA-TA-2EA-FW Machine operator panel has four motion control axes, which can be found by the repeated TA name in the configuration. The panel can work in temperatures between 0°C and 45°C and is powered by 24 V DC. It has a standard slot-in modular design that allows users to put it on a cabinet rack. The operator panel cools itself through internal convection or a fan, contingent upon its configuration. The panel has an IP20 rating for security and has many buttons for different functions, such as AUTO MODE, MAN MODE, CYCLE START/STOP, RESET FAULT, and ON/OFF HYDRAULICS. A big red twist-type emergency stop is set up to turn off the power right away for safety. The screen also has mechanical features, such as the ability to CLAMP/UNCLAMP FIXTURE and RAISE/LOWER TILT ARM. Electromechanical switches with NC and NO contacts are visible within the panel. There are flat ribbon wires, a DB-style serial interface, and a custom power/signal connector with strain relief on the back panel. The design supports modular transmission, which allows it to work with common fieldbus protocols.
The panel is approximately 300 mm broad, 100 mm tall, and 320 mm deep. The relay configuration and edge connections demonstrate that the design is modular, allowing for flexible wiring. The BTM04.1-TA-TA-TA-TA-2EA-FW Machine operator panel has firmware built in that works with the system design. The panel can be used in automated machine systems that need to control axes and run tasks from a panel. The many transmission interfaces and adaptability make it simple to integrate into industrial automation environments.
