BTM04.1-TA-TA-BA-BA-2EA-FW
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees

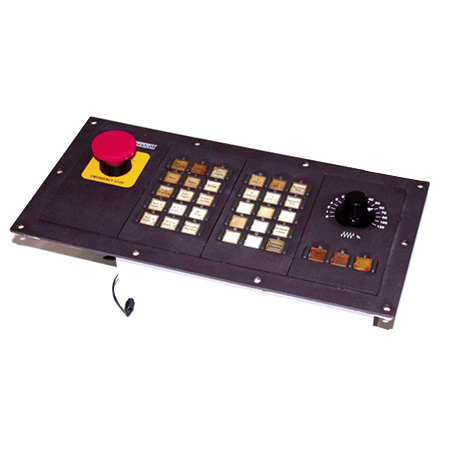

The BTM04.1-TA-TA-BA-BA-2EA-FW, part of Bosch Rexroth Indramat's BTM04 Machine Operator Panels, features a plug-in module mounting method. It is short-circuit and overload protected, with a max supply voltage of 24 VDC and standard current output up to 2A per channel. The panel weighs approximately 0.5 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The BTM04.1-TA-TA-BA-BA-2EA-FW originates from Bosch Rexroth’s top-reviewed BTM04 Machine Operator Panels range, offering a plug‑in module configuration which enables rapid field installation. The part number employs type code TA‑TA‑BA‑BA which defines the unit arrangement and supports consistent ordering. Firmware indicator “FW” designates the firmware variant to ensure compatibility with series software. The plug‑in module mounting method allows fast replacements and upgrade cycles without panel removal.
Electrical connection via a multi‑pin connector delivers reliable secured wiring, thus reduces installation errors. The maximum supply voltage rated at 24 VDC (typical) provides compatibility with standard industrial DC control systems that simplifies power sourcing. Maximum current output for this operator panel is rated up to 2A per channel (standard for BTM series) and provides sufficient drive capability, supporting a variety of auxiliary modules. Short‑circuit and overload protection guarantee by this device enhances system safety which limits risk of damage in case of operational faults. Operating temperature ranges from 0°C to +45°C allow deployment in controlled industrial environments which ensures stable performance. Approximate dimensions of 50 × 120 × 200 mm permit compact integration of the unit into control cabinets to conserve panel space. Weight around 0.5 kg keeps the module lightweight which eases mounting and handling.
Pressure‑rated IP65 ingress protection resists dust ingress and water jets which promotes reliable use in hard industrial setting. A 16‑input and output slots master board architecture and support up to sixteen I/O paths which enable flexible module configuration. Powder‑coated finish provides enhanced corrosion resistance which contributes to long‑term durability. Module slot complement accommodates emergency‑stop, quick‑stop, spindle override, keyboard (writeable) and feed override modules which allows tailored operator control. The part number BTM04.1-TA-TA-BA-BA-2EA-FW integrates Line 4 Design 1 structural layout which ensures consistency across product variants.
Frequently Asked Questions about BTM04.1-TA-TA-BA-BA-2EA-FW:
Q: How does firmware designation “FW” affect module selection?
A: This firmware coding ensures hardware and software compatibility across systems, allowing consistent communication protocols and updates without disrupting existing configuration or function.
Q: Why is type code “TA-TA-BA-BA” relevant for BTM04.1-TA-TA-BA-BA-2EA-FW panel?
A: The specified type of code determines the physical layout of switch modules and function blocks, simplifying matching during integration with other components.
Q: What line and design version do BTM04.1-TA-TA-BA-BA-2EA-FW follow?
A: This part adheres to Line 4, Design 1 standards, aligning it with current Rexroth hardware architecture and maintaining compatibility across panel generations.
Q: How does powder-coated finish contribute to module performance for BTM04.1-TA-TA-BA-BA-2EA-FW?
A: The use of powder coating enhances corrosion resistance and improves surface durability. This allows sustained operation even under conditions that involve exposure to moisture or metal particles.
Q: How many module slots does BTM04.1-TA-TA-BA-BA-2EA-FW provide and what are typical uses?
A: It supports four plug-in slots for modules like emergency stop, override, and spindle control, giving operators precise, accessible, and functional panel interaction layouts.
