BTM04.1-NA-TA-VA-BA-2FF-FW
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The BTM04.1-NA-TA-VA-BA-2FF-FW is an NC-controlled operator panel with internal air cooling. Manufactured by Bosch Rexroth Indramat, it is part of the BTM04 Machine Operator Panels series and supports a SERCOS interface. This panel weighs approximately 20 kg and operates at a rated frequency of 50/60 Hz.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The BTM04.1-NA-TA-VA-BA-2FF-FW Control Panel is designed by Bosch Rexroth Indramat for the applications of industrial automation systems. The panel uses Line 4, Design 1 architecture for flexible module configuration. The master board is factory-designated and has 16 input-output units. It supports module slots 2 through 4 with I/O functionality.

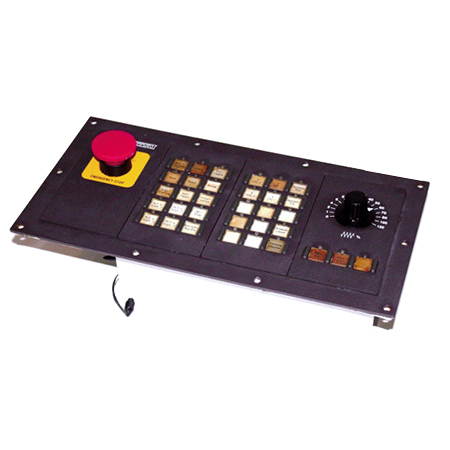

The BTM04.1-NA-TA-VA-BA-2FF-FW control panel is powder coated with an IP65 ingress protection that protects against both dust and water. The unit includes several bays for modular customization as required. Slot 1 is designated for an Emergency Stop module, enabling immediate system shutdown when necessary. The Slot 2 houses a Keyboard module that operators can use to input data. The Slot 3 features an additional user-writable Keyboard module for alternate layout or redundancy. The Slot 4 is configured to accept a Feed Override module that allows for manual adjustment of feed rates. The Relative humidity rating supports non‑condensing conditions up to 95 %. The device operates reliably within the standard industrial temperature range, reaching up to +50 °C. It supports a broad storage temperature range of-25°C to +70°C for secure transportation. The BTM04.1-NA-TA-VA-BA-2FF-FW control panel can withstand the normal vibration and minor shock loading that occurs in industrial-type locations. The mounting altitude is allowed to be up to normal industrial altitude without any deration.
The electrical supply of BTM04.1-NA-TA-VA-BA-2FF-FW control panel meets Bosch Rexroth input voltage and ground requirements for safe use. The panel must be earthed to the enclosure to safeguard against electromagnetic interference. The Feed Override module will enable live operator control to feed. The master board assignment makes it compatible with parameters that are pre-programmed. The machine's functions can be modified via the keyboard modules while it is running. The Emergency Stop module adheres to safety interlock regulations. An option of future module upgrade or exchange is allowed through installation flexibility.
Frequently Asked Questions about BTM04.1-NA-TA-VA-BA-2FF-FW:
Q: How is BTM04.1-NA-TA-VA-BA-2FF-FW panel configured on startup?
A: The BTM04.1-NA-TA-VA-BA-2FF-FW control panel uses a factory-assigned master board with pre-configured I/O mapping, eliminating the need for manual initialization.
Q: What cable shielding is required for BTM04.1-NA-TA-VA-BA-2FF-FW?
A: The BTM04.1-NA-TA-VA-BA-2FF-FW control panel requires shielded signal and power cables grounded to the chassis to reduce EMI and signal disruption.
Q: Can BTM04.1-NA-TA-VA-BA-2FF-FW modules be hot-swapped during use?
A: The BTM04.1-NA-TA-VA-BA-2FF-FW control panel allows module exchange only when de-energized to prevent damage to the master board and I/O system.
Q: What system controllers support BTM04.1-NA-TA-VA-BA-2FF-FW panel?
A: The BTM04.1-NA-TA-VA-BA-2FF-FW control panel is compatible with Bosch Rexroth CNC and PLC systems through standard digital I/O and control protocols.
Q: How does BTM04.1-NA-TA-VA-BA-2FF-FW handle harsh environments?
A: The BTM04.1-NA-TA-VA-BA-2FF-FW control panel uses IP65 sealing, industrial-grade powder coating, and vibration-resistant housing for rugged deployment conditions.
