The Bosch Rexroth Indramat BTM04.1-NA-TA-TA-RB-2FF-FW is part of the BTM04 Machine Operator Panels series and has a protection rating of IP65. This panel features four module slots including an emergency-stop module, two writeable keyboard modules, and a quick-stop module, and it weighs 3.2 kilograms. The finish is powder-coated and the main board supports 16 I/O slots.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

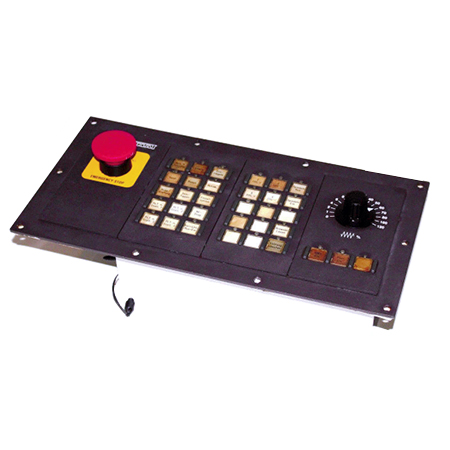

The BTM04.1-NA-TA-TA-RB-2FF-FW operator panel is produced by Bosch Rexroth Indramat within the BTM04 Machine Operator Panels series. Designed for machine tools and automated cells, the unit provides field-level controls such as stop commands and keyed data entry. It acts as a local human-machine interface that relays signals back to the main motion or PLC system. This arrangement places frequently used machine commands at the operating position instead of requiring access through a separate cabinet interface.
The front housing receives a powder-coated finish that adds scratch resistance and helps protect the steel plate from corrosion during daily use. The main board exposes 16 digital input and output channels, letting pushbuttons, lamps, and sensor signals connect directly without extra breakout hardware. Slot 1 is factory-populated with an emergency-stop module, giving the operator an immediate safety shutdown input. Slots 2 and 3 each hold a writable keyboard module, so key functions can be identified with application-specific text instead of fixed legends. Slot 4 carries a quick-stop module for rapid motion deceleration commands that are separate from the full emergency chain. Keeping the stop functions separate helps distinguish controlled stopping from emergency shutdown behavior.
The enclosure accepts 4 pluggable module cards, so unused bays can be reserved for application-specific controls or indicators. A protection grade of IP65 means the assembled panel resists dust ingress and low-pressure water jets, allowing installation on machine doors or pendant arms where the front face may be exposed. The housing mass of 3.2 kg keeps the unit substantial enough for a rigid mounting feel without making the panel excessively heavy to handle during installation. The sealed front and modular layout suit machines that need both operator access and a compact control surface at the point of use. The front layout also allows control functions to be grouped in a predictable arrangement for routine machine interaction.
Frequently Asked Questions about BTM04.1-NA-TA-TA-RB-2FF-FW:
Q: What type of finish is applied to the BTM04.1-NA-TA-TA-RB-2FF-FW operator panel?
A: The BTM04.1-NA-TA-TA-RB-2FF-FW machine operator panel comes with a powder-coated finish for enhanced surface durability.
Q: How many I/O slots are available on the main board of the BTM04.1-NA-TA-TA-RB-2FF-FW?
A: This model features 16 I/O slots on its main board for various connection requirements.
Q: What modules are included in the four module slots of the BTM04.1-NA-TA-TA-RB-2FF-FW?
A: The BTM04.1-NA-TA-TA-RB-2FF-FW is equipped with four module slots including emergency-stop, quick-stop, and two writeable keyboard modules.
Q: What is the protection rating of the BTM04.1-NA-TA-TA-RB-2FF-FW machine operator panel?
A: This panel offers an IP65 protection rating, making it resistant to dust and low-pressure water jets.
Q: What is the weight of the BTM04.1-NA-TA-TA-RB-2FF-FW operator panel?
A: The total weight of the BTM04.1-NA-TA-TA-RB-2FF-FW is 3.2 kg.
