Product Description:

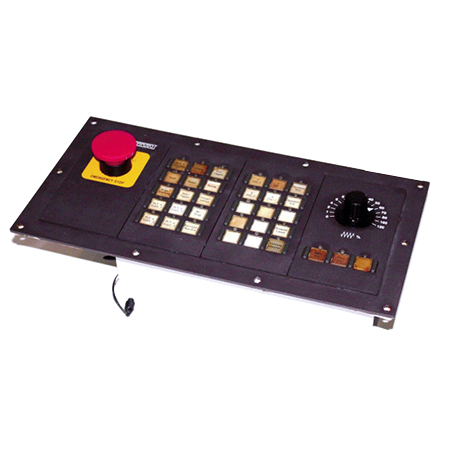

The BTM04.1-NA-TA-BA-BA-2EA-FW machine operator panel is produced by Bosch Rexroth Indramat and belongs to the BTM04 Machine Operator Panels series. Designed for front-end mounting on CNC cells and assembly lines, the panel consolidates safety controls and manual data entry so the controller cabinet can remain sealed. In typical installations, it serves as the human-machine interface, allowing operators to issue commands and stop the process immediately when needed, while motion logic remains in the drive or PLC downstream. That layout helps keep routine control access at the machine front while enclosed electrical hardware stays protected.

The safety circuit is built around a locking emergency-off button that stays latched after actuation. Two independent normally closed chains, specified as 2 N/C, feed the drive-enable relays so that power can return only after a manual reset. The housing provides 4 modular slots: slot 1 carries the emergency-stop module, slot 2 accepts the writable keyboard module, and slots 3 and 4 are sealed by blind plates until expansion is required. A master board mounted in slots 2 to 4 exposes 16 inputs and 16 outputs, giving direct binary links to a Rexroth automation bus. With a front seal rated IP65, the unit resists dust and low-pressure water on the shop floor.

Operator entry relies on short-stroke keys that limit travel to improve cycle time and reduce fatigue during repeated use. The keypad contains 15 user-assignable buttons, and each one is backlit by an LED for status confirmation in dim areas. The compact key action also supports fast acknowledgment and menu selection tasks during setup or production changes. The overlay surface is powder-coated to prevent oxidation, and the legends can be labeled to match custom PLC tags without external stickers. Because the master board already handles discrete I/O, no additional wiring is needed when keyboard inputs change, and the unused blind plates preserve enclosure integrity until further modules are added.
