BTM04.1-BA-TA-TA-VA-2FF-FW
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees

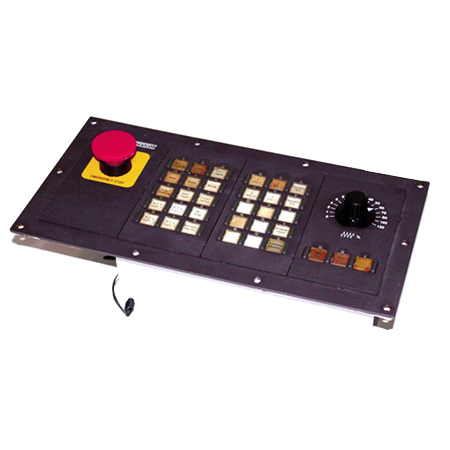

The BTM04.1-BA-TA-TA-VA-2FF-FW is a lightweight operator panel weighing approximately 1.2 kg with a front plate protection class of IP65. Manufactured by Bosch Rexroth Indramat as part of the BTM04 Machine Operator Panels series, it features a tactile panel with indicator LEDs and supports up to 24 tact switches.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
This BTM04.1-BA-TA-TA-VA-2FF-FW machine operator panel designed by Bosch Rexroth Indramat works like a function-enriched human-machine interface. The panel’s empty slot is covered by a blank plate. This product’s operation is supported by its firmware. The device has two customizable and identical keyboard modules. This unit offers feed and spindle overrides with a single module. It is the right option for operations that demand fine-tuned adjustments. The panel comprises a rotary knob to control the feed rate manually.
This product’s input modules support user-defined text and function input. The device houses a 24 VDC input. This unit uses serial links or ribbon cables for PLC or CNC connectivity. Its durability is assured by its rugged enclosure that withstands contaminants, shock, and vibration. The panel is deployed in automated manufacturing lines and packaging systems. This product supports the inclusion of a safety mechanism externally. The device can handle several signals from the peripherals and the control system of the machine. This unit’s front panel depicts an IP 65 protection class. Its ventilation areas must not be blocked as this can trigger an overheating of the panel.
The panel’s wiring and installation should be executed by trained personnel according to the applicable safety standards. This product must comprise a permanent connection for its power supply. The device’s modular design allows an easy replacement of its parts. This unit tends to fail at higher than the rated operating voltage. Its front panel is made of aluminum, while the output is made of plastic. The machine control panel can be connected to a general controller.
Frequently Asked Questions about BTM04.1-BA-TA-TA-VA-2FF-FW:
Q: What inputs do the keyboard modules of the BTM04.1-BA-TA-TA-VA-2FF-FW panel support?
A: The keyboard modules of the BTM04.1-BA-TA-TA-VA-2FF-FW panel supports function-key and alphanumeric inputs.
Q: What is the advantage of the manual control of the BTM04.1-BA-TA-TA-VA-2FF-FW panel?
A: The manual control of the BTM04.1-BA-TA-TA-VA-2FF-FW panel enables real-time feed adjustment.
Q: Does the BTM04.1-BA-TA-TA-VA-2FF-FW panel support an emergency support function?
A: Yes, the BTM04.1-BA-TA-TA-VA-2FF-FW panel supports an emergency support function and this can be implemented externally.
Q: What are the materials used in the BTM04.1-BA-TA-TA-VA-2FF-FW panel?
A: The materials used in the BTM04.1-BA-TA-TA-VA-2FF-FW panel are aluminum and plastic.
Q: What systems can the BTM04.1-BA-TA-TA-VA-2FF-FW panel be deployed in?
A: The BTM04.1-BA-TA-TA-VA-2FF-FW panel can be deployed in CNC and automation systems.
