BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW is a machine control system with an operating temperature range of 0°C to 45°C. Bosch Rexroth Indramat's BTM03 Machine Operator Panels feature IP20 protection and are control cabinet mountable. It includes 2 Fieldbus communication slots and weighs approximately 6 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The Bosch Indramat produces BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW as a human machine interface for industrial automation systems. Its frontal structure is made of powder-coated metal and its face comes with IP65 rating to resist water, dust, oil and floor contaminants. This panel possess a dedicated grounding terminal for safety.

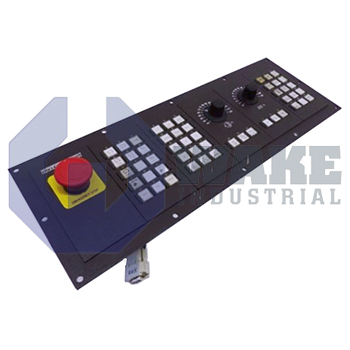

The BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW control panel operates on 24 VDC and consumes 20 W of power. It is composed of six front module bays; four modules are pre-installed and two are blanked for future upgradation as per the system need. Its leftmost slot features a red mushroom emergency stop button, it functions as a twist-reset and has a lock push feature to stop the connected machine instantly. Below the emergency button there are two square pushbuttons in green and red color for start/stop operations. The panel’s second and third modules are writeable keypad arrays and each contains fifteen pushbuttons arranged in a 3 x 5 grid style. The BTM panel’s pushbuttons are labeled for functions like CLAMP PART, CYCLE STOP, FULL DEPTH, FEED HOLD and each of the button is recessed with a tactile feel. Its fourth slot holds a feed override knob that is in a rotary design and it is marked from 0% to 120%. Below the knob are three override buttons labeled as AT 100%, RAPID and FEED. The panel’s rear housing is made of shielded steel and it supports fast panel mounting with edge screws.
The BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW control panel includes a master I/O board inside the rear housing that provides 16 digital inputs and 16 digital outputs. Its emergency stop button uses dual-channel safety wiring and its terminal blocks on the rear provide wiring points for external I/O. The BTM control panel supports integration with MT-CNC systems and custom PLC-controlled machines.
Frequently Asked Questions about BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW:
Q: How does the 3x5 keypad layout benefit operator control?
A: The 3x5 arrangement allows grouped functional control, improving ergonomics and minimizing accidental operation. It also supports quick visual identification during fast-paced machine tasks.
Q: Why does the BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW use powder-coated metal on the front?
A: Powder coating enhances resistance to chemical exposure and physical wear. It maintains long-term durability in harsh manufacturing environments.
Q: How does the feed override knob help in precision machining?
A: It allows operators to adjust feed rate between 0%–120% without interrupting machine cycles. This helps in fine-tuning feed speed during complex or sensitive operations.
Q: What’s the function of override buttons labeled AT 100%, RAPID, and FEED?
A: These buttons give instant feed control presets to optimize cycle speed. For example, RAPID can be used to return axes quickly without affecting feed accuracy.
Q: How does the dual-channel emergency stop system improve safety on the BTM03.1-NA-TA-TA-VA-BA-BA-2FF-FW?
A: The dual-channel wiring ensures redundancy in stopping functions. If one channel fails, the second maintains the emergency stop function for fail-safe operation.
