ADF134C-B05TC3-BS00-C2V1

  • Rated 4.6 (12 total ratings)
  • MPN: R911287474
  • Call for Expedited Shipping and Product Condition Options

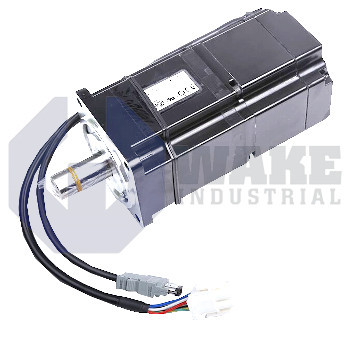

The ADF134C-B05TC3-BS00-C2V1 Main Spindle motor is a part of the ADF series manufactured by Bosch Rexroth. This motor operates with its Output Connector on Side C, Heavy-Duty bearing, a Digital servo motor feedback type, and is Not Equipped with a holding break.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

ADF134C-B05TC3-BS00-C2V1

  • Rated 4.6 (12 total ratings)
  • MPN: R911287474
  • Call for Expedited Shipping and Product Condition Options
The ADF134C-B05TC3-BS00-C2V1 Main Spindle motor is a part of the ADF series manufactured by Bosch Rexroth. This motor operates with its Output Connector on Side C, Heavy-Duty bearing, a Digital servo motor feedback type, and is Not Equipped with a holding break.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a ADF134C-B05TC3-BS00-C2V1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The ADF134C-B05TC3-BS00-C2V1 main spindle motor is in the ADF series manufactured by Bosch Rexroth. The spindle motor is used as a servo drive or liquid-cooled main spindle drive in different applications. These applications include tool machines for textile, printing, plastics, and injection molding machines, and other similar machines. With a motor size of 134, an output plain shaft with shaft sealing ring, and lack of side shaft end, the main spindle motor features a wide range of characteristics.

The ADF134C-B05TC3-BS00-C2V1 main spindle motor requires a range of 0 to 45 degrees Celsius when it comes to its ambient temperature. This range must be maintained for the motor feedback to operate smoothly. The main spindle motor can also be installed at any elevation. This is because they are liquid-cooled, so one only has to worry about sustaining the coolant's cooling limits. The main spindle motor also features a mounting flange design. In this motor, it means that mounting with a lead-through drill hole is feasible. The motor will be mounted on the machine using the drill hole. Before mounting it, one must prevent the liquid in the motor from collecting for a long time in the output shaft.

The ADF134C-B05TC3-BS00-C2V1 main spindle motor can also be fitted with holding breaks that feature electrically-engaged release or clamp. The main spindle motor also features different electrical connections, including the motor feedback connection and a power connection, and the NTC thermistor and holding brake connection. Once the motor feedback connection has been set and the motor delivered, its position cannot be changed. It is a nine-pin socket located on the same side as the power terminal. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

ADF134C-B05TC3-BS00-C2V1 Documents

  • ADF134CB05TC3BS00C2V1
  • adf134c-b05tc3-bs00-c2V1
  • ADF134C-BO5TC3-BSOO-C2V1

ADF134C-B05TC3-BS00-C2V1 Technical Specifications

Bearing: Heavy-Duty
Holding Brake: Not Equipped
Motor Feedback: Digital servo
Output Connector: Side C
