ADF100B-B05TA1-BS03-D2N1

  • Rated 4.8 (6 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911282487
  • Call for Expedited Shipping and Product Condition Options

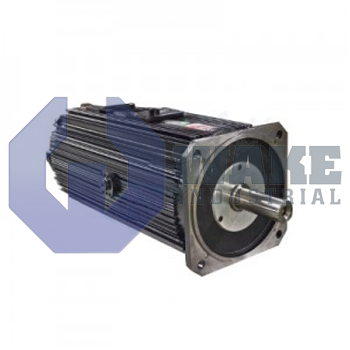

The ADF100B-B05TA1-BS03-D2N1 Main Spindle motor is a part of the ADF series manufactured by Bosch Rexroth. This motor operates with its Output Connector on Side A, Standard bearing, a High-resolution motor feedback type, and is Not Equipped with a holding break.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth provides services in manufacturing several products of industrial automation. The company’s products such as frequency converter, main spindle motors, and drive controllers are widely used in the market. The company is mainly concerned about product quality and customer satisfaction.

The ADF100B-B05TA1-BS03-D2N1 model comes in a compact design having a net weight of approximately 64 kg. The motor comes in a B05 design and it can be installed in any mounting orientation (IM B5, IM V1, and IM V3). The AC main spindle motor can take AC 220V of power from the drive and generates 8.5 kW of continuous power at the nominal speed of 2000 rpm. The rotor is balanced with the full key used in the shaft-hub assembly and while operating at permissible radial force its mechanical lifespan will be 20,000 working hours. The moment of inertia of the rotor is 0.016 kgm2. The AC main spindle motor delivers the continuous torque of 40 Nm at the continuous current of 45 A which makes it suitable to use for tool machines, injection molding machines, and printing machines where high torque and continuous power is required.

The model ADF100B-B05TA1-BS03-D2N1 uses Indramat cables of 10 mm2 diameter for electrical connection and motor feedback through the A-side power connector. The winding call letter for the ADF 100B motor is BS and the motor housing is completely protected by external dirt and low-pressure water jets coming from every direction due to its IP 65 protection standard. The ambient temperature range in which the motor can operate ideally is +5 to +45 degree Celsius at any altitude. A high-resolution encoder is used for motor feedback and the motor is dynamically balanced as per balance class R (reduced) as per DIN ISO 2373. The motor uses coolant for heat dissipation. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

  • ADF100BB05TA1BS03D2N1
  • adf100b-b05ta1-bs03-d2n1
  • ADF1OOB-BO5TA1-BSO3-D2N1

ADF100B-B05TA1-BS03-D2N1 Technical Specifications

Bearing: Standard
Holding Brake: Not Equipped
Motor Feedback: High-resolution
Output Connector: Side A
