The Beckhoff EP9224-0023 is part of the EP Digital Input Modules series and features eight independent channels and a maximum cable length of 30 meters. It supports a nominal voltage of 24 V DC, an internal fuse rated at 7 A, and operates with the EtherCAT protocol. The module provides four M8 output connectors and a connector current capacity of 16 A at 40 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

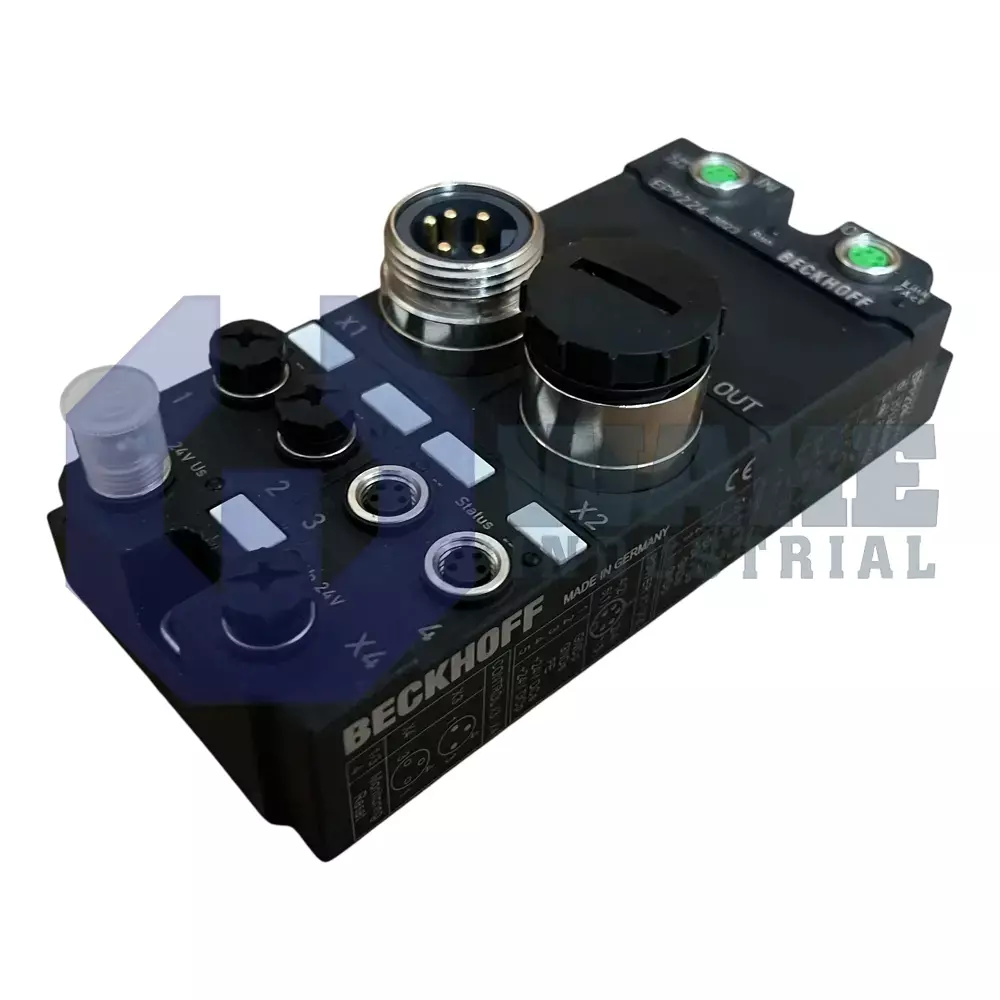

Beckhoff’s EP9224-0023 belongs to the EP Digital Input Modules series and is intended for decentralized control cabinets in industrial automation. The unit receives 24 V distribution voltage and returns diagnostic data so higher-level controllers can evaluate field wiring and load states. By combining power switching and sensor feedback inside a compact IP67 enclosure, it streamlines installation on machines where distributed I/O reduces cabinet space and cable runs.
The module operates from a nominal supply of 24 V DC, and its M8 and 7/8-inch connectors can carry up to 16 A at 40 °C to the attached loads. It provides 8 independent channels that are internally protected by a fast-acting fuse rated at 7 A; tripping this fuse isolates the affected circuit without disabling the remaining outputs. Each supply line, identified as US and UP, can deliver up to 4 A, ensuring adequate current for actuators while keeping the distribution rails within safe limits. Two 4-pin, A-coded shielded M8 sockets form the bus interface, and a 7/8-inch plug handles the power feed, while an identically sized socket passes power downstream. Four additional M8 sockets provide the switched outputs, and a potential-free NO signaling contact reports the internal fuse state to a higher-level PLC. Resetting the contact requires restoring the 24 V reset voltage for the unit.
Communication relies on EtherCAT, allowing deterministic updates alongside other Beckhoff terminals on the same network. For maintenance, the device holds a diagnostic log of 40 entries that records overcurrent or undervoltage events. Installers can place the module up to 30 m from the preceding node without exceeding the maximum cable length, simplifying placement on large gantries or conveyors. Because output paralleling is not permissible, each channel must drive a separate load, preventing equalizing currents that could defeat the fuse protection. The shielded A-coded cabling, the connector set, and the potential-free signaling contact support reliable service in noise-prone production lines.
Frequently Asked Questions about EP9224-0023:
Q: How many independent channels are available on the EP9224-0023 module?
A: The EP9224-0023 module supports eight independent channels for input or output tasks.
Q: What is the nominal voltage required for the EP9224-0023?
A: This module operates with a nominal voltage of 24 V DC.
Q: What is the maximum cable length supported by the EP9224-0023 module?
A: The EP9224-0023 features a maximum cable length of 30 meters for connection flexibility.
Q: How much output current is supported per US and UP on the EP9224-0023?
A: Each US and UP output on the EP9224-0023 can provide a maximum current of 4 A.
Q: Which communication protocol does the EP9224-0023 module use?
A: The EP9224-0023 module utilizes the EtherCAT protocol for communication.
