ELM3604-0002
Wake Industrial LLC is not an authorized distributor of this product.
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
Available

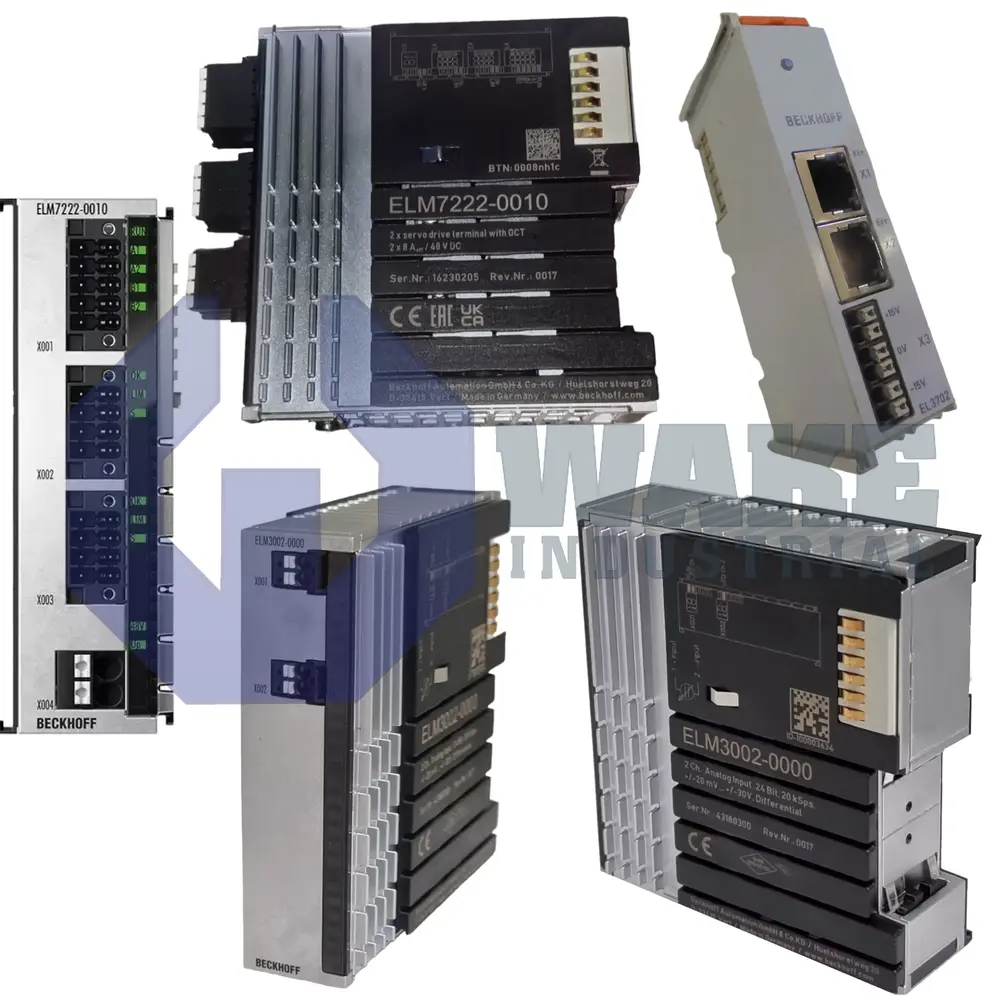

The ELM3604-0002 features a 4-channel analog input with voltage and acceleration (IEPE) signal types, and a signal resolution of 24 bit. Part of the ELM EtherCAT Terminal Series manufactured by Beckhoff, it supports EtherCAT communication and offers an extended temperature range from -25°C to +60°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The ELM3604-0002 is a newly developed EtherCAT terminal from Beckhoff Automation. This product opens up completely new opportunities for the use of measurement technology in automation as well as testing and inspection applications. It is equipped with a 24-bit data resolution and can comfortably handle the toughest demands on measurement technology. The particular product is built for the evaluation of Integrated Electronic Piezo-Electric (IEPE) sensors; it meets international quality standards and can be used for vibration diagnostic applications and acoustic sensors. The product is classified according to the IP20 protection class. During operation, it should be protected from dust and water splashes. There are four channels on the ELM3604-0002, each of these channels can simultaneously function as a maximum sampling rate of 50 microseconds/20 kilo-samples per second.
The ELM3604-0002 has a metal housing unit with diagnostic Light Emitting Diodes. The unique housing material helps the terminal maintain a permissible operation temperature by efficiently eliminating excess heat through natural convection. The ELM3604-0002 does not require extensive configuration operation after delivery. It can also be easily mounted using a 35 millimeters DIN rail, which conforms to EN 60715 standards and has a lock.
The ELM3604-0002 EtherCAT terminal has an internal resistance greater than 2 mega-ohms. It maintains a typical temperature coefficient that is less than ten parts per million per kelvin. The IEPC sensors used with this device are often connected through coaxial cable. To make the connection work, the terminal features a shielded BNC connector, and it also uses a 2-wire connection technology. The oversampling factor of this product is selectable between 1 to about 100. The product can also carry out connection diagnostics to detect broken wires and short circuits.
Frequently Asked Questions about ELM3604-0002:
Q: What type of cable is used to connect the ELM3604-0002 to IEPE sensors?
A: The connection of the ELM3604-0002 to the IEPE sensors is done through a coaxial cables. The Terminal features a BNC connector that makes this possible.
Q: What is the oversampling factor of the ELM3604-0002?
A: The oversampling factor of this product is selectable between 1 to 100.
Q: Does the ELM3604-0002 require installation in a control cabinet?
A: Yes. The housing of the ELM3604-0002 Terminal only provide protection according to IP20. It should be installed in a cabinet that protects its from external interference.
Q: Is there any electrical Isolation channel on the ELM3604-0002 EtherCAT terminal?
A: No. The ELM3604-0002 EtherCAT interface does not feature any Electrical Isolation channel.
Q: Can the ELM3604-0002 be mounted Side be Side with other terminals?
A: Yes. The side by side mounting of the ELM3604-0002 is possible by means of a double slot and key connection.
