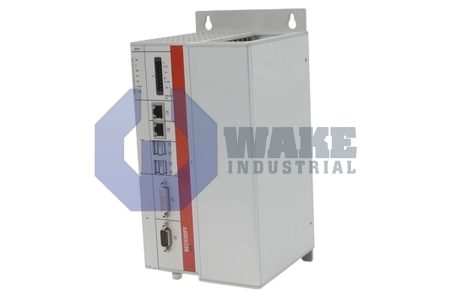

C6920-0060 Beckhoff
Wake Industrial LLC is not an authorized distributor of this product.
The Beckhoff C6920-0060 is part of the C6 Industrial PC Units series and weighs 1.9 kilograms in its basic configuration. It features two 10/100/1000BASE-T LAN ports, four USB 2.0 ports, and one DVI-I interface. The PC is cooled with internal fins and a two-fan cartridge, and it has an IP20 protection class.
Internal Product Review
The C6920-0060 is a Beckhoff industrial PC unit with IP20 protection and internal fins plus a fan cartridge for dependable thermal management. Dual 10/100/1000BASE-T LAN ports and four USB 2.0 ports support clean integration in machine control environments. Two fans with double ball bearings are a strong design choice for sustained cooling reliability.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The C6920-0060 is an industrial personal computer produced by Beckhoff as part of the C6 Industrial PC Units series. Designed for DIN-rail or cabinet installation, it acts as the central processing block for machine control, visualization, and data-handling tasks within automated production cells. By placing standard PC technology inside a mechanically protected housing, the unit combines general-purpose computing with the real-time fieldbus interfaces commonly used in industrial environments.
For thermal stability, the housing uses internal fins and a fan cartridge, and the two integrated fans use double ball bearings for reliable operation. The dual-fan arrangement circulates air across the 3.5-inch motherboard to help remove heat from internal components. Two 10/100/1000BASE-T Ethernet ports support high-speed networking, while graphics leave the chassis through one DVI-I connector suitable for digital or analog monitors. Legacy serial devices connect through one RS-232 D-sub 9 interface, and a separate 9-pin D-sub fieldbus port permits direct wiring to deterministic communication buses. The main board is mounted through four chassis holes that align with standard enclosure grids, simplifying rigid installation inside a control cabinet.
Power enters through an eight-pole plug connector that accepts a 1.5 mm² cable, while a 16 A fuse installed upstream protects the supply circuit. External peripherals attach to four USB 2.0 sockets, providing direct connections for a keyboard, storage device, scanner, or other compatible equipment without requiring expansion cards. The enclosure has an IP20 protection rating, so it is intended for installation inside a closed control cabinet and protects against incidental finger contact with live parts. For mobile or vibration-prone machinery, the aluminum frame withstands shocks of up to 5 g for 30 ms without data loss or mechanical displacement. In its basic configuration, the computer weighs 1.9 kg, which keeps mounting loads low when it is installed on a panel door or other supported cabinet surface.
