Part Number:

8CVI045E1HCS0.00-1

Manufacturer: B & R Automation
Series: 8CVI ACOPOS Inverter Module Series
  • Rated 4.6 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    Available
  • Call for Expedited Shipping and Product Condition Options
Free Ground Shipping
Worldwide Delivery
Repair Options Available

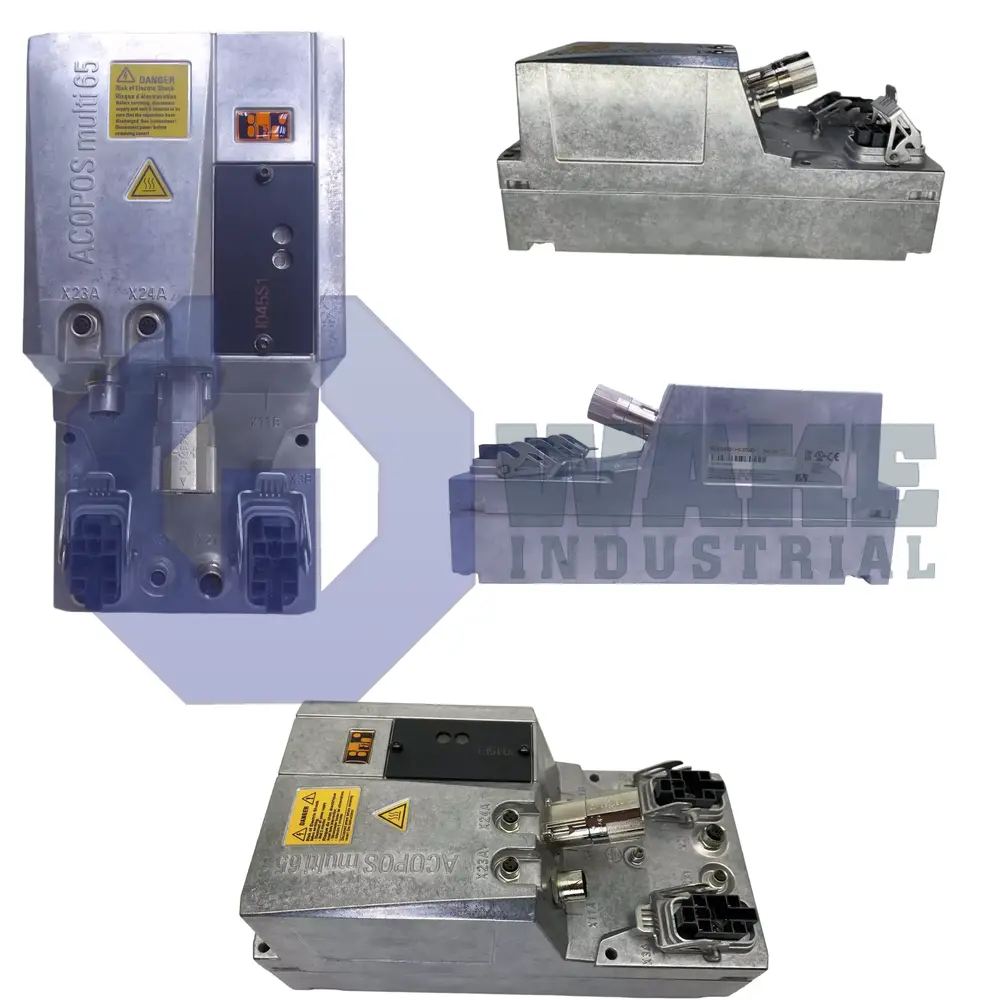

The 8CVI045E1HCS0.00-1 ACOPOSremote module features cold plate mounting, DNA support, a 15-pin Tyco connector with a current-carrying capacity of 20 A at 40 degrees C, and a nominal DC bus connection voltage of 750 VDC. Part of the 8CVI Series manufactured by B & R Automation, it is certified for functional safety and has varying power dissipation based on switching frequency.

Part Number:

8CVI045E1HCS0.00-1

Manufacturer: B & R Automation
Series: 8CVI ACOPOS Inverter Module Series
  • Rated 4.6 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    Available
  • Call for Expedited Shipping and Product Condition Options
Free Ground Shipping
Worldwide Delivery
Repair Options Available

The 8CVI045E1HCS0.00-1 ACOPOSremote module features cold plate mounting, DNA support, a 15-pin Tyco connector with a current-carrying capacity of 20 A at 40 degrees C, and a nominal DC bus connection voltage of 750 VDC. Part of the 8CVI Series manufactured by B & R Automation, it is certified for functional safety and has varying power dissipation based on switching frequency.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The 8CVI045E1HCS0.00-1 inverter module, manufactured by B&R Automation, is an advanced and reliable component of the ACOPOSremote series. Designed with cutting-edge technology, this module ensures both uncontrolled and safe stops are seamlessly integrated, enhancing operational safety in high-demand industrial environments. The module features an EnDat 2.1 encoder connection, which provides precise and accurate feedback essential for complex automation systems. Additionally, it offers integrated connections for local I/O nodes, streamlining the setup process and significantly reducing the need for extensive cabling through its daisy chain configuration. This reduction in cabling not only simplifies installation but also contributes to a cleaner, more efficient system layout.

The 8CVI045E1HCS0.00-1 via its 15-pin Tyco connector, ensuring robust performance under various operational conditions. The module is designed for cold plate mounting, which provides efficient thermal management, crucial for maintaining optimal performance and longevity in demanding environments. It also supports Dynamic Node Allocation (DNA), allowing for flexible and adaptive system configurations, which is particularly beneficial in complex automation scenarios. The module's DC bus connection operates at a nominal voltage of 750 VDC, providing stable and reliable power delivery across a wide range of applications.

Power dissipation is a critical aspect of any inverter module, and the 8CVI045E1HCS0.00-1 is designed to handle it efficiently. Depending on the switching frequency, the module's power dissipation varies; for instance, at a 5 kHz switching frequency, power dissipation follows the formula [0.16 * IM^2 + 5.6 * IM + 55 + (Pout/750)^2 * 0.25], while at 10 kHz, it adjusts to [0.49 * IM^2 + 4.7 * IM + 95 + (Pout/750)^2 * 0.25] W. These precise calculations ensure that the module can maintain efficiency while managing heat dissipation.

8CVI045E1HCS0.00-1 Technical Specifications

Module Type: ACOPOSremote module
Dc Bus Connection - Power Dissipation Depending On Switching Frequency - Switching Frequency 20 Khz: In preparation
Manufacturer: B&R Automation
B&R ID code: 0xC1B0
Output Voltage: 24 VCD
Max. Switching Frequency : 0.5 Hz
Encoder Type : EnDat2.1
Current-carrying Capacity: Max. 20 A at 40 degrees C
Support - Dynamic Node Allocation (dna): Yes
Cooling And Mounting Type: Cold plate mounting
Certifications - Functional Safety: Yes
Dc Bus Connection - Voltage - Nominal: 750 VDC
Dc Bus Connection - Continuous Power Consumption: In preparation
Dc Bus Connection - Power Dissipation Depending On Switching Frequency - Switching Frequency 5 Khz: [0.16 * IM^2 + 5.6 * IM + 55 + (Pout/750)^2 * 0.25] W
Dc Bus Connection - Power Dissipation Depending On Switching Frequency - Switching Frequency 10 Khz: [0.49 * IM^2 + 4.7 * IM + 95 + (Pout/750)^2 * 0.25] W

Frequently Asked Questions about 8CVI045E1HCS0.00-1


Q: What is the current-carrying capacity of the 8CVI045E1HCS0.00-1?

A: The 8CVI045E1HCS0.00-1 by B&R Automation is rated for 20 A at 40 degrees C.

Q: What type of encoder connection does the 8CVI045E1HCS0.00-1 support?

A: The 8CVI045E1HCS0.00-1 features an EnDat 2.1 encoder connection for precise feedback.

Q: How does the 8CVI045E1HCS0.00-1 manage thermal dissipation?

A: The 8CVI045E1HCS0.00-1 is designed for cold plate mounting, providing efficient thermal management.

Q: Does the 8CVI045E1HCS0.00-1 support flexible system configurations?

A: Yes, the 8CVI045E1HCS0.00-1 supports Dynamic Node Allocation (DNA) for adaptive system configurations.

Q: What is the nominal voltage of the DC bus connection in the 8CVI045E1HCS0.00-1?

A: The DC bus connection in the 8CVI045E1HCS0.00-1 operates at a nominal voltage of 750 VDC.

Internal Product Review

  • ‘‘The 8CVI045E1HCS0.00-1 module by B&R offers efficient cold plate mounting, optimizing thermal management for long-term reliability.’’
