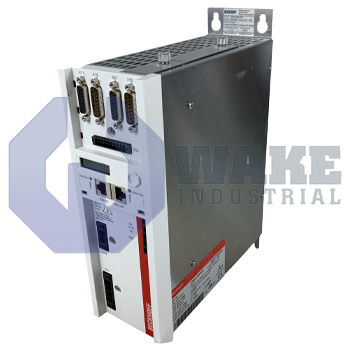

The AX5206-0000-0202 is a 2-channel digital compact servo drive manufactured by Beckhoff. This device has a compact design to facilitate control cabinet installation with dimensions of 92 x 274 x 232 mm (w x h x d). It operates with 160 W power loss and a peak output current of 13 A.
✓ In-Stock!

AX5206-0000-0202

  • Rated 4.5 (38 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
The AX5206-0000-0202 is a 2-channel digital compact servo drive manufactured by Beckhoff. This device has a compact design to facilitate control cabinet installation with dimensions of 92 x 274 x 232 mm (w x h x d). It operates with 160 W power loss and a peak output current of 13 A.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Beckhoff Automation GmbH specializes in manufacturing automation systems. Their systems are based on PC Control technology. The company offers a wide array of products, which includes bus terminals, Fieldbus boxes, industrial PCs, and drive technology. The AX5000 is a series of compact digital servo drives developed by Beckhoff. This series is developed to be used specifically with EtherCAT. Multiple AX5000 devices can be connected to form one unified powerful AX5000 system.

The AX5206-0000-0202 is part of the AX5000 series of dual-channel servo drives. This drive features scalable, wide motor range motor current measurements and high-speed capture inputs. It also has an effective energy management system and active DC-link. The DC-link voltage for this drive is 875 C DC (max). The AX5206-0000-0202 has several safety features such as Safe-torque off, overvoltage protection, and intelligent TwinSAFE safety function. Optional safety functions for this drive include adding external unit to offer protection against any inadvertent restart of the drive axis.

The AX5206-0000-0202 uses the EtherCAT system bus and SERCOTM profile that conforms to IEC 61800-7-204 (SoE). This servo drive has an IP 20 protection and must be installed in a control cabinet without and dust or water ingress. The AX5206-0000-0202 is EAC, CL, and cULus approved. It can be operated at a maximum temperature of 55°C. The AX5206-0000-0202 has a power loss of 160 W and a DC-link capacitance of 470 µF. This drive uses a 2.0 hardware version with firmware version ≥ 2.10. To store and recover brake energy efficiently, additional DC-links can be installed on this servo drive. An external brake module unit with an internal braking resistor of 250 W can be installed.

  • AX52O6-OOOO-O2O2
  • ax5206-0000-0202
  • AX520600000202

AX5206-0000-0202 Technical Specifications

Dimensions (W x H x D): 92 x 274 x 232 mm
Power loss: 160W
Weight: 6kg
Protection Category: IP20
Number of Channels : 2-channel
Nominal current: 6A
Hardware Version: 2nd Generation
Firmware Version: v2.10
Cooling: Internal Air blower
Maximum Output current: 13A

Frequently Asked Questions about AX5206-0000-0202


Q: Is it compusory to integrate an external mains protection with the AX5206-0000-0202?

A: Although the AX5206-0000-0202 features an integrated protection against short circuit, this is no substitute for external mains for external mains protection. The user must integrate a mains protection that meets the vendors specification and international standards.

Q: What are the appropriate environmental conditions for the storage of the AX5206-0000-0202?

A: If the AX5206-0000-0202 is not required for immediate use, it must not be stored outdoors, it should be stored in a well ventilatedand dry place. The controller should not be stored for more than five years without use.

Q: In what container is the AX5206-0000-0202 packaged for delivery?

A: The AX5206-0000-0202 is delivered in a recyclable cartoon with inserts. The cartoon has a dimension of 348×324×175mm. A name plate is attached to the cartoon for easy identification.

Q: How should maintainance operations be carried out on AX5206-0000-0202?

A: The AX5206-0000-0202 drive controller is maintenance free, only the manufacturer is allowed to carry out maintenance operation on the device. Opening the housing of the controller invalidates the warranty on it.

Q: What are the items supplied with the AX5206-0000-0202?

A: Apart from the AX5206-0000-0202 controller itself, other items supplied include a quick refrence guide, Documentation on CD-ROM, and electrical connectors for mains input, DC link, DC power supply, and digital input and output units.
