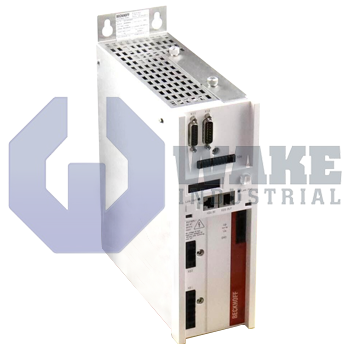

AX5103-0000-0202 is a AX51xx series 1-channel servo drive manufactured by Beckhoff. This drive measures 274 mm x 92 mm x 232 mm, and has a peak output current of 7.5 A and 50 w power loss.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

AX5103-0000-0202

  • Rated 4.4 (36 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
AX5103-0000-0202 is a AX51xx series 1-channel servo drive manufactured by Beckhoff. This drive measures 274 mm x 92 mm x 232 mm, and has a peak output current of 7.5 A and 50 w power loss.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AX5103-0000-0202 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The AX5103-0000-0202 is a part of the AX51xx series produced by Beckhoff. It is a family of 1-channel digital compact servo drive. It is specially designed to work with a rated current that reaches 40 A. The family of drives supports highly dynamic and extremely fast positioning jobs. A wide range of motors, irrespective of their sizes and types, can work with these servo drives.

The AX5103-0000-0202 servo drive is used to establish a fast and simple connection via an AX-Bridge connection system to form a multi-axis system. It allows for very fast EtherCAT system communication. The drive has a multi-feedback interface that supports all ordinary standards. It supports capturing of inputs at high speed as well as parameter and diagnostic display. Its compact design makes installation simple. The drive, which has an optimized cooling system, has an output current rating of 3 A. Its minimum channel output current (at full resolution) is 1 A while the maximum axis output current is 7.5A.

The servo drive has a rated supply voltage of 3 x 100…480 V AC ±10 %/1 x 100…240 V AC ±10 %. It loses up to 50W power during S1 operations. It comes with an EtherCAT system bus and a SERCOS™ profile for servo drives that conform to IEC 61800-7-204 (SoE) specifications. The unified mains use the Cat. C3 filter, which conforms to EN 61800-3 specifications. The drive operates under an ambient temperature of 0…+50 °C. It is IP 20 protected and has CE, cULus, and EAC approvals and markings. The dimensions of AX5103-0000-0202 are 274 mm x 92 mm x 232 mm.

  • AX51O3-OOOO-O2O2
  • ax5103-0000-0202
  • AX510300000202

AX5103-0000-0202 Technical Specifications

Product type: Servo drive
Protection rating : IP20
Supply voltage: 100 to 480 VAC
Rated output current: 3 Amps
Peak output current: 7.5 Amps
Bus: EtherCat
DC link voltage: 875 VDC (max)
Channels: 1
Max ambient temperature: 50 °C
Drive profile: SERCOS

Frequently Asked Questions about AX5103-0000-0202


Q: What is the benefit of EtherCat bus?

A: EtherCat bus allows interfacing with computer-based control.

Q: What are dimensions of the drive?

A: Dimensions of the drive unit are 317 x 92 x 232 mm.

Q: What are the supported feedback options?

A: The supported feedback options include SinCos, resolver with Hiperface or EnDat 2.1 interfaces.

Q: Does the drive support single-phase operation?

A: The drive is designed for only three-phase operation.

Q: How can you commission the drive?

A: You can use the TwinCat 3 Drive Manager 2 to commission the drive unit.
