EEA-PAM-535-D-32

  • Rated 4.9 (7 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-7 Days
  • Call for Expedited Shipping and Product Condition Options

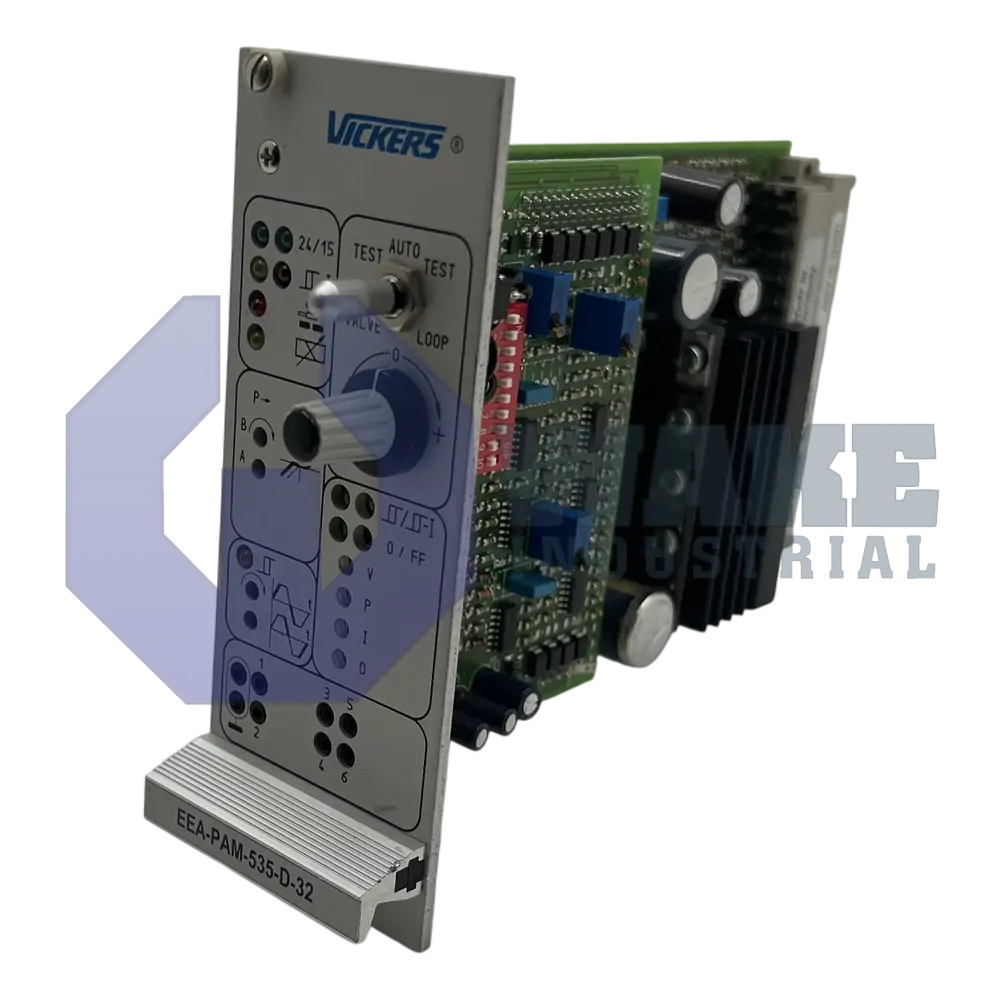

Power Amplifier with PID Module manufactured by Vickers. This EEA-PAM-535-D-32 Card is For Proportional Valve KF*G4V-5 and has a Power (Input) Supply of 24V DC.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

EEA-PAM-535-D-32

  • Rated 4.9 (7 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-7 Days
  • Call for Expedited Shipping and Product Condition Options

Power Amplifier with PID Module manufactured by Vickers. This EEA-PAM-535-D-32 Card is For Proportional Valve KF*G4V-5 and has a Power (Input) Supply of 24V DC.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The EEA-PAM-535-D-32 series power amplifier is one of the many EEA-PAM valves from the manufacturer for hydraulic applications. The power amplifier comes with the startup guidelines,instructions on what is needed for installation, and effective protection levels. The unit has dedicated potentiometers for P-gain, I-gain, D-gain, and feed-forward signal scaling. A green-colored signal gets illuminated when the feedback signal is the same as the command signal. The manufacturer sells its power amplifier under the brand name Vickers. The device is sold with a one-year warranty period. The eight sockets have 0.0787 inches diameter, each.

The power amplifier operates at a temperature ranging between 0°C and 50°C. The alarm signal is set to LOW when the overloading of the solenoid takes place. The analog load resistance output from the ramp generator and the load impedance of the feedback signal are protected against short circuits. When the PID controller is enabled, the load current is less than or equal to 10mA. The amplifier supports a closed-loop operation and comes with a user-configurable PID feed-forward. It is fitted with an integrated PID module. All the potentiometers and DIL switches housed on the front panel have various settings and can be reconfigured according to the card in use.

The Eurocard type card can be used as a substitute for two standard electronic cards. The amplifier is similar to its A-series power amplifier excluding the gain feature. It also has many LEDs for various purposes that light up in different colors to indicate the operational status of that feature. These LEDs form an integral part of the built-in test feature. The amplifier is widely used with the manufacturer’s very own KF*G4V-5 valves. We can ship the power amplifier to any address in the world through our delivery agents.

  • EEA PAM 535 D 32
  • EEA-PAM-535-D-32
  • EEAPAM535D32

EEA-PAM-535-D-32 Technical Specifications

Series: EEA-PAM-5**-D-36
Weight: 330 g
For Proportional Valve: KF*G4V-5
Power (Input) Supply: 24V DC
Control (Output) Supplies: +15V for LVDTs only
Reference voltages: +/- 10V
Temperature drift: < 1 mV/degree C (< 0,5 mV/degree F)0 to 50 degree Celsius (32 - 122 degree F.
Power drive: 100 ohms
Max. solenoid current: 2.7 A
Gain: 10% per V

Frequently Asked Questions about EEA-PAM-535-D-32


Q: Which kind of valves can be used with the EEA-PAM-535-D-32?

A: The EEA-PAM-535-D-32 has been made compatible with a wide variety of proportional valves that have been manufactured by Bosch Rexroth, Eaton Vickers, and Parker Hannifin.

Q: Which input signals can the EEA-PAM-535-D-32 operate on?

A: The EEA-PAM-535-D-32 can operate on a standard 24 V DC power supply and can be provided with an input voltage between 20 V to 40 V.

Q: Can the EEA-PAM-535-D-32 be customized for specific valves?

A: With an adjustable gain feature provided in the EEA-PAM-535-D-32, it is possible to fine tune the amplifier for specific valve requirements.

Q: Is the EEA-PAM-535-D-32 protected against short circuits?

A: Yes, the EEA-PAM-535-D-32 is provided with an overload protection feature that provides significant protection against short circuits and other similar faults.

Q: How does the EEA-PAM-535-D-32 power amplifier impact energy consumption?

A: The EEA-PAM-535-D-32 prevents wastage and increases efficiency by accuratley metering the fluid flow through the proportional control valve.

Internal Product Review

  • ‘‘The power amplifier can accept both, current and voltage input signals and has adjustable gain and ramp generator function. This greatly improves its motion control capabilities. It is also compatible with various valve brands and overall is a very user friendly setup.’’
