EEA-PAM-525-D-32

Name: EEA-PAM-525-D-32
Brand: Vickers
Price: 396 USD
Rating: 4.6 (39 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Call for Availability

Current response time:

3 Minutes 36 Seconds

The Vickers EEA-PAM-525-D-32 power amplifier features PID control for precise regulation and a PWM-powered short circuit-protected drive. It operates with an input range of 17V-40V and supports LVDT feedback for enhanced precision.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

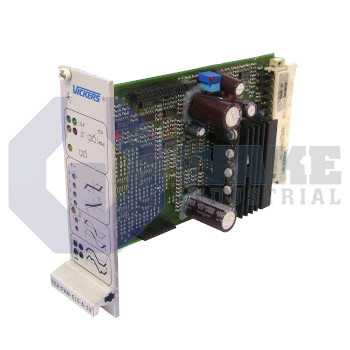

The model EEA-PAM-525-D-32 is a versatile power amplifier designed by Vickers to enhance the performance and reliability of control systems. This model offers efficient signal management and is engineered for precision in demanding industrial automation applications.

This EEA-PAM-525-D-32 power amplifier supports PID control that enables enhanced system stability through precise feedback regulation. The PID controller is activated at an input voltage range between 17 V and 40 V and deactivates when the voltage is between 0 V and 3.5 V. This unit is optimized for safe operation with a load current limit of ≤ 10 mA for analog controls. This model’s digital output channels are robust that allows a short circuit safe load current of ≤ 100 mA at pins d18 and d10. This amplifier’s sensor failure threshold is set below 3 V to ensure reliable detection of malfunctions. Feedback signal discrepancies compared to the demanded signal are promptly flagged when the feedback voltage drops below 3 V. This power amplifier is compatible with the K*G4V-3 proportional valve. Its design includes provisions for LVDT feedback that ensures precise spool position control in closed loop applications. The amplifier's power drive utilizes Pulse Width Modulation (PWM) and is short circuit protected.

Temperature drift of this EEA-PAM-5**-D-32 power amplifiers series module is minimal. It maintains less than 1 mV/°C over an operating temperature range of 0 to 50 °C. The device also features a ramp function generator with quadrant detection that allows for separate adjustments of acceleration and deceleration which can be enabled or disabled as needed. Front panel LEDs of this model provide status indications including supply voltage presence, control voltage status, solenoid output status and sensor failure alerts.

EEA-PAM-525-D-32 Technical Specifications

Analog Inputs Voltage Range:	± 10 V
Analog Outputs Voltage Range:	± 10 V
Digital Outputs Load Current:	≤ 100 mA
PID-controller Enabled Voltage:	17 to 40 V
PID-controller Disabled Voltage:	0 to 3.5 V
PID-controller Load Current:	≤ 10 mA
Mass:	0.4 kg
Analog Inputs Input Impedance:	47 kΩ
Analog Input Current Range:	20 mA
Monitor Points Voltage Range:	± 10 V
Monitor Point Impedance:	10 kΩ
Drive Signal Zero Indicator Output Resistance:	50 Ω
Ramp Active Indicator Output Resistance:	10 kΩ
Control (Output) Supplies:	+15V for LVDTs only
Reference Voltages:	±10V x 5 mA

Frequently Asked Questions about EEA-PAM-525-D-32

Q: How does the EEA-PAM-525-D-32 improve control system reliability with PID control?

A: The EEA-PAM-525-D-32 supports precise PID control for enhanced stability in demanding industrial tasks. The controller activates between 17V-40V input and deactivates below 3.5V, ensuring optimal feedback regulation.

Q: Can the EEA-PAM-525-D-32 handle load variations in digital output channels?

A: Yes, this model offers robust digital outputs that support short-circuit safe operation. It handles load currents ≤ 100 mA at pins d18 and d10, ensuring safe load management during variable conditions.

Q: What role does the LVDT feedback play in the EEA-PAM-525-D-32’s closed-loop performance?

A: The amplifier’s LVDT feedback feature ensures precise spool position control in closed-loop applications. This precision supports seamless integration with proportional valves like the K*G4V-3, optimizing automation performance.

Q: How does the EEA-PAM-525-D-32 detect sensor malfunctions in real time?

A: Its sensor failure threshold is set below 3V to detect malfunctions promptly. When the feedback voltage drops below this limit, the system flags discrepancies to maintain continuous operational reliability.

Q: How does the EEA-PAM-525-D-32 maintain stability under varying temperatures?

A: It minimizes temperature drift to less than 1 mV/°C over a 0°C to 50°C range. The ramp function generator further adjusts acceleration and deceleration independently for precise system responses.

Internal Product Review

‘‘The EEA-PAM-525-D-32 power amplifier by Vickers is a reliable automation solution with robust PID control, LVDT feedback for spool control, and PWM-based short-circuit protection. Its wide input voltage range (17V-40V) supports stable operation. This model’s efficient sensor failure threshold enhances system diagnostics and safety.’’
