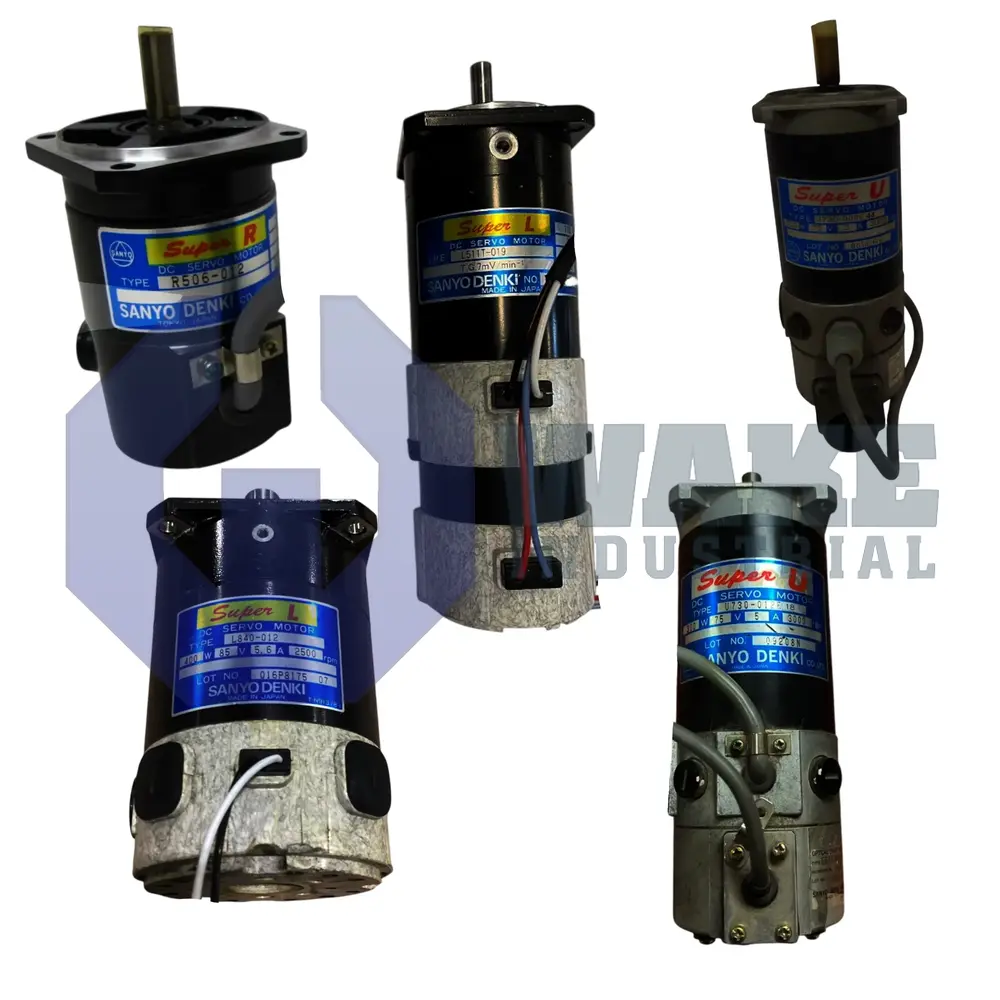

Home Sanyo Denki Super DC Servo Motors U718BNT-002

U718BNT-002

Name: U718BNT-002
Brand: Sanyo Denki
Price: 350 USD
Availability: InStock
Rating: 4.4 (30 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 1-2 Days

Current response time:

5 Minutes 35 Seconds

The U718BNT-002 is a versatile servo motor with isolated inputs and outputs, making it suitable for complex applications. Manufactured by Sanyo Denki and part of the Super DC Servo Motors series, it supports both AC and DC systems for flexible operation. It features rugged BORNIER terminal blocks.

Preparing your secure checkout page...

Description
Specs
FAQ

Product Description

The U718BNT-002 is part of the DC servo motor series from Sanyo Denki. This product is a result of more than fifty years of experience and advancement by the reputable compact. Its state-of-the-art design has been adapted to meet the operation requirements of highly sophisticated equipment that requires the highest level of motor precision. Examples of these machines include medical equipment and coordinate measuring machines. Unlike most industrial motor designs, the U718BNT-002 motor does not undergo high fluctuation in its operation speed; the steady operation speed of the motor is about 3000 revolutions per minute. The motor is also extremely energy efficient; it only requires 3.5 amperes of input current and a voltage supply of 75 volts for operation. The rated output power provided by this motor during its operation is about 180 watts.

There is a holding brake integrated into the U718BNT-002; this brake plays an important role by retaining loads connected to the output shaft of the motor when the motor is at a standstill. The integrated holding brake in his product operates with a velocity supply of about 90 volts. The voltage constant of this motor during operation is also determined to be about 7 volts per 1000 revolutions.

The output shaft integrated into the U718BNT-002 has a shaft sealing ring to prevent the penetration of fluid into its housing; the shaft is also equipped with a keyway that aids the efficient transmission of torque during motor operation. Although the enclosure of this industrial motor is made from strong metallic material with high durability and protection capacity, the product is not intended for direct outdoor application. It should be used indoors and should be protected from extreme vibration and humidity levels.

U718BNT-002 Technical Specifications

AC/DC Compatibility:	Supports both AC and DC systems
Mounting Options:	Round shielded cables or standard terminals
Power Supply Options:	±15V/80W or 24V/10W modules
Rack Configuration:	16-slot rack support
Shunt Resistance:	0.010Ω ±1%
Signal Conversion:	Digital-to-analog converter units
Terminal Block:	BORNIER rugged industrial format
Analog Filter:	Built-in 10Hz low-pass filter
Channel Count:	16, 32 or 64 channels
Durability:	Meets industrial standards for harsh environments
Output Current Rating:	0.5A to 5A per module
Digital Interface:	Supports programmable controller integration
Input Voltage:	5V, 12V, 24V, 115V AC/DC, 220V AC/DC
Isolation:	Isolated inputs and outputs
Cascadable Modules:	Supports module cascading via STB4ACM/STB658

Frequently Asked Questions about U718BNT-002

Q: Is there an holding brake integrated into this product?

A: Yes. The U718BNT-002 features an holding brake that retains loads when it is at standstill.

Q: How is the output shaft of the U718BNT-002 designed?

A: The output shaft of this motor is made from strong metallic material. It features a keyway for the smooth transmission of torque to industrial machine components.

Q: How is the U718BNT-002 different from conventional motor designs?

A: The U718BNT-002 is a DC servo motor. It operates at a higher precision level and does not undergo significant fluctuations in operation speed or temperature during its operation.

Q: How is the heat in the U718BNT-002 cooled?

A: Cooling in the U718BNT-002 motor is done through a combination of natural convection and thermal radiation.

Q: What is the average operation speed of this motor design?

A: At a rated current supply of 3.5 amperes, the U718BNT-002 operates at a speed of 3000 revolutions per minute.

Internal Product Review

‘‘The U718BNT-002 is a state-of-the-art motor design that is perfectly suited for high precision operation. The motor is an extremely efficient motor that can reach an operation speed of 3000 revolutions per minute. The motor can also generate a power output of about 180 watts during its operation. ’’
