STF3624-4976-61-56BC

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
The STF3624-4976-61-56BC is manufactured by Kollmorgen as part of the STF Washdown Motor- Food Grade Series. It features a continuous current of 2.9 A and a continuous torque of 9.0 lb-in. As well as a peak current of 54.0 A and a torque constant of 3.89 lb-in/A. Certified by the Bakery Industry Sanitation Standards Committee and contains a 17550 RPM.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

STF3624-4976-61-56BC

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
The STF3624-4976-61-56BC is manufactured by Kollmorgen as part of the STF Washdown Motor- Food Grade Series. It features a continuous current of 2.9 A and a continuous torque of 9.0 lb-in. As well as a peak current of 54.0 A and a torque constant of 3.89 lb-in/A. Certified by the Bakery Industry Sanitation Standards Committee and contains a 17550 RPM.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a STF3624-4976-61-56BC to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

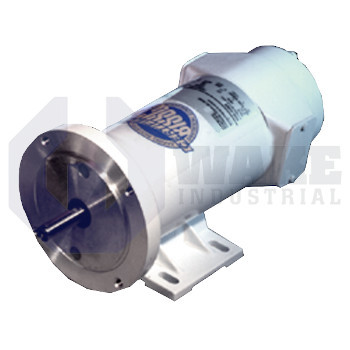

Featured with a removable base and Class H Insulation, the STF3624-4976-61-56BC is a Permanent Magnet DC Motor from Kollmorgen. This 90V motor is designed to generate 9 lb of continuous torque while rotating at 1750 RPM. The STF3624-4976-61-56BC is an unclouded motor as it comes housed in a TENV type enclosure that is designed as per NEMA specifications. In standard operating conditions, it draws 2.9 amperes of current. The motor weighs around 22 lbs and its length is 11.20 inches. The STF3624-4976-61-56BC is designed in compliance with NEMA MG1-1.26.5 and is an IP65 rated device. It comes from the Kollmorgen STF Series of Washdown Motors. The Kollmorgen STF3624-4976-61-56BC comes with various preventive features to ensure the motor`s integrity against the effects of moisture or water.

Washdown duty motors are widely used in the food and pharmaceutical industry. However, the specifications of this motor make it a viable choice for a variety of industries and applications. The STF3624-4976-61-56BC can easily be coupled with a reliable drive controller in case if the RPM or start/stop sequence of the motor is needed to be controlled. This model comes equipped with high-quality brushes which can be replaced onsite with replacement brush YP00572.

The STF3624-4976-61-56BC has an inductance value of 9.61 mH and its torque constant is measured to be 3.89lb-in/A. The resistance value through this motor remains around 2.51 Ohms. This motor is certified from BISSC – a body that has the mandate to develop and publish standards for the design and construction of bakery industry-related equipment. The STF3624-4976-61-56BC is a 1/4 HP, UL recognized motor that can withstand direct water splashes. This model does not require any cooling media.

  • STF36244976-6156BC

STF3624-4976-61-56BC Technical Specifications

Continuous Current : 2.9 A
Continuous Torque: 9.0 lb-in
Inductance : 9.61 mH
Inertia: 4.0 lb-in
Peak Current: 54.0 A
Resistance: 2.51
Torque Constant: 3.89 lb-in/A
