PC834-104-N

  • Rated 4.6 (13 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options

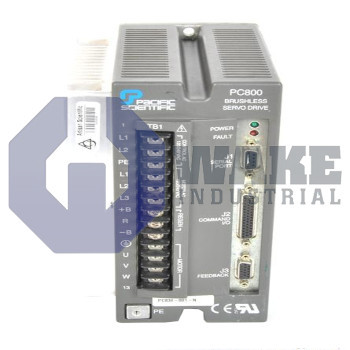

The PC834-104-N was manufactured by Kollmorgen as part of their PC800 Single Axis Servo Drive Series. This servo drive features a peak output current of 21.2 Arms and a 7.1 Arms continuous output current. The PC834-104-N also holds a maximum motor inductance of 1.25 mH and a 16 kHz output current ripple frequency.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

PC834-104-N

  • Rated 4.6 (13 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
The PC834-104-N was manufactured by Kollmorgen as part of their PC800 Single Axis Servo Drive Series. This servo drive features a peak output current of 21.2 Arms and a 7.1 Arms continuous output current. The PC834-104-N also holds a maximum motor inductance of 1.25 mH and a 16 kHz output current ripple frequency.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a PC834-104-N to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen designs and develops a wide range of economical and sustainable motion control devices. The company is famous for providing high-quality automation equipment at an affordable price.

The PC834-104-N model is designed by Kollmorgen to provide high efficiency under extreme operating conditions. The PC834 module is highly recommended to be used together with the parts and modules specified by the supplier. The PC834 brushless servo drive is equipped with an RS232/RS485 command interface for developing a connection with the PC and the other I/O modules. The operating parameters of the drive are installed in the RAM memory of the unit. The unit is engineered to control the torque, velocity, and position of the servo motor. For accurate position detection, the unit is equipped with a resolve, encoder, or comcoder according to the required operating conditions. The PC834 brushless servo drive can take supply input directly from the 3-phase 180 – 265 VAC power source through its L1, L2, and L3 terminals. The power is supplied to the electrical motor via U, V, and W terminals. The servo drive takes motor feedback through its J3 serial port and it communicates via the serial interface. A regenerative brake resistor is recommended to install with the respective module to provide protection against high voltage effects.

The model PC834-104-N is protected against major solid particles but it is not protected against water that’s why it must be installed in the switch cabinet of prescribed ingress protection. With natural convection cooling mode, the drive consumes the rated current of 7.1 A, and it uses 10.6 A of rated current at forced cooling mode. The in-rush peak current for this model is 300 A for maximum of 2 seconds. The PC834 servo drive operates ideally under the maximum temperature range of +40 degree Celsius. Wake Industrial provides worldwide shipment of this single-axis brushless servo drive PC834-104-N within the quoted time.

  • PC834104N
  • PC-834-104-N
  • PC834 104 N

PC834-104-N Technical Specifications

Continuous Output Current : 7.1 Arms
Maximum Motor Inductance: 1.25 mH
Output Current Ripple Freq.: 16 kHz
Peak Output Current : 21.2 Arms
Shunt Regulator Power: Peak Power: 12.8 kW
