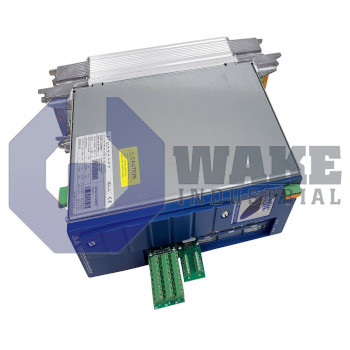

MMC-SD-8.0-460-D

MPN: M.3000.0468

  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    Available

Preparing your secure checkout page...

The MMC-SD-8.0-460-D from Kollmorgen is part of their MMC Standalone Smart Drives and weighs 16 pounds. The drive operates at 207-460 VAC and supports a nominal input power of 11.8kVA. It handles a continuous output current of 18.0 Amps and offers a peak output current of 36.0 Amps.

Warranty
Wake Industrial Warranty
To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

MMC-SD-8.0-460-D is an MMC series smart drive from Kollmorgen. It is designed for motor control in industrial applications. The drive receives motion commands via a digital link. Flash memory on the unit is used for storing the firmware, which can be upgraded. A serial port on the unit provides communications with PC-based control software. An internal switch is available for controlling the mechanical brake. LEDs for power and diagnostics are available on the front side. The drive supports multiple types of motor feedback, including incremental encoder, resolver, and high-resolution encoder. Integrated I/O include eight 24 Volts DC inputs and four 24 Volts DC outputs. Weight of the MMC-SD-8.0-460-D drive is 16 lbs. Its AC input specifications include 11.8 kVA nominal power input, 207 to 460 Volts AC input voltage, 47 to 63 Hertz input frequency, and 14.8 Amps input current.

The maximum inrush current is 27.7 Amps rms. Heat dissipated by the drive during operation is 204 Watts. The AC output specifications include 18 Amps continuous output current, 4 kilowatts continuous output power at 230 Volts AC, 8 kilowatts continuous output power at 460 Volts AC, 36 Amps peak output current and 0 to 450 Hertz output frequency. The internal holding brake draws maximum 0.5 Amps. Kollmorgen recommends maximum 16 AWG wire for power input and 1.25 Nm maximum tightening torque. The MMC-SD-8.0-460-D drive unit implements 3-phase sinusoidal commutation. A digital PI controller provider current regulation and a digital PID controller provides velocity regulation. The operating temperature range is from 7 to 50 degrees Celsius. Unused drives require -30 to 70 degrees Celsius storage temperature. The maximum altitude without output derating is 1500 meters.

Continuous Output Current
18A
Continuous Output Power
8.0kW at 460VAC
DC Input Voltage
24VDC
Energy Absorption Capacity
44J (460VAC)
Input Frequency
47-63Hz
Input Voltage (Limits)
187-528VAC
Input Voltage (Nominal)
207-460VAC 3Ø
Maximum Inrush Current
27.7A RMS
Maximum Shunt Resistor Power
14kW
Nominal Input Current
14.8A RMS
Nominal Input Power
11.8kVA
Output Frequency
0-450Hz
Peak Output Current
36A (peak)
Power Loss
204W
Typical Input Current
1.05A
Weight
16 lbs
  • MMCSD8.0460D
  • MMC SD 8.0 460 D
  • MMCSD-8.0-460-D

Frequently Asked Questions about MMC-SD-8.0-460-D:

Q: What is the operating temperature?

A: The operating temperature range is 7 to 50 degrees Celsius.

Q: What is the maximum altitude without derating?

A: The maximum altitude without derating is 1500 meters.

Q: What is the maximum size for input power wires?

A: The maximum size for input power wires is 16 AWG.

Q: Which type of commutation does the drive use?

A: The drive uses three phase sinusoidal commutation.

Q: Which current regulator does the drive use?

A: The drive uses a digital PI regulator with 125 microsecond update rate.


Internal Product Review

  • ‘‘MMC-SD-8.0-460-D is a compact drive unit. It can be used with compatible servo motors. The drive provides a powerful solution for industrial control challenges.’’
