The BA3618-7009-9-56BC is manufactured by Kollmorgen as part of the BA and BAF Low Voltage Motor Series. It features an HP of 43834and a voltage of 24 V. It holds a continuous current of 10.3 A and a torque constant of 1.04 lb-in. Made to undergo a resistance of 0.14 ohms and hold an inductance of 0.57 mH.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

BA3618-7009-9-56BC

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Call for Expedited Shipping and Product Condition Options
The BA3618-7009-9-56BC is manufactured by Kollmorgen as part of the BA and BAF Low Voltage Motor Series. It features an HP of 43834and a voltage of 24 V. It holds a continuous current of 10.3 A and a torque constant of 1.04 lb-in. Made to undergo a resistance of 0.14 ohms and hold an inductance of 0.57 mH.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a BA3618-7009-9-56BC to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

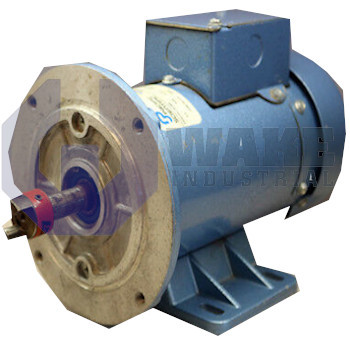

BA3618-7009-9-56BC is a 1/4 HP DC motor from BA3618-7009-9-56BC from BA Series by KOLLMORGEN. This model is designed to be used in low RPM applications and it comes with a TENV type enclosure. The BA3618-7009-9-56BC consumes around 10.3 amperes of current while operating at fix rpm and can generate 9.0 pound per inch continuous torque. The maximum number of revolutions per minute achievable by this motor is 1750. For applications where adjustable speed is required, you can couple this motor with any compatible low voltage motor controller as well. The BA3618-7009-9-56BC can also be operated at a constant speed from a battery.

The windings of this motor are protected with H class insulation. This PMDC type motor is designed following all the recommendations as mentioned for NEMA 56C devices. The enclosed non-ventilated design of this model makes it an ideal choice for industrial applications where dirty and damp environments are often encountered. Being a non-ventilated motor the BA3618-7009-9-56BC has no internal fan for cooling and the motor maintains its temperature by dissipating heat into the outside environment through convection.

This permanent magnet type DC motor weighs around 18 lbs. and has a length of 17 inches. The base of this motor is removable. Spare brushes for this motor are also available on the market under the product code YP00593. The BA3618-7009-9-56BC is a highly efficient device that operates with a maximum internal resistance of 0.14 ohms while operating in standard operating conditions. The large, gasketed wiring compartment provided in this motor allows easy termination and disconnection with routine tools. The gaskets of the termination box or wiring compartment minimize the risk of moisture and dirt ingression efficiently.

BA3618-7009-9-56BC Documents

  • BA36187009956-BC
  • BA36187009956BC
  • BA-36187009956-BC

BA3618-7009-9-56BC Technical Specifications

Continuous Current: 10.3 A
Continuous Torque : 9.0 lb-in
HP: 1/4
Inductance : 0.57 mH
Resistance: 0.14 ohms
Torque Constant : 1.04 lb-in
Voltage: 24 V
